6507/G+ IP touch panel

Reference : 6507/G+ WEB

Product code: 12386507

The following links belong to the different versions of the 6507/G+ door panel:

More information

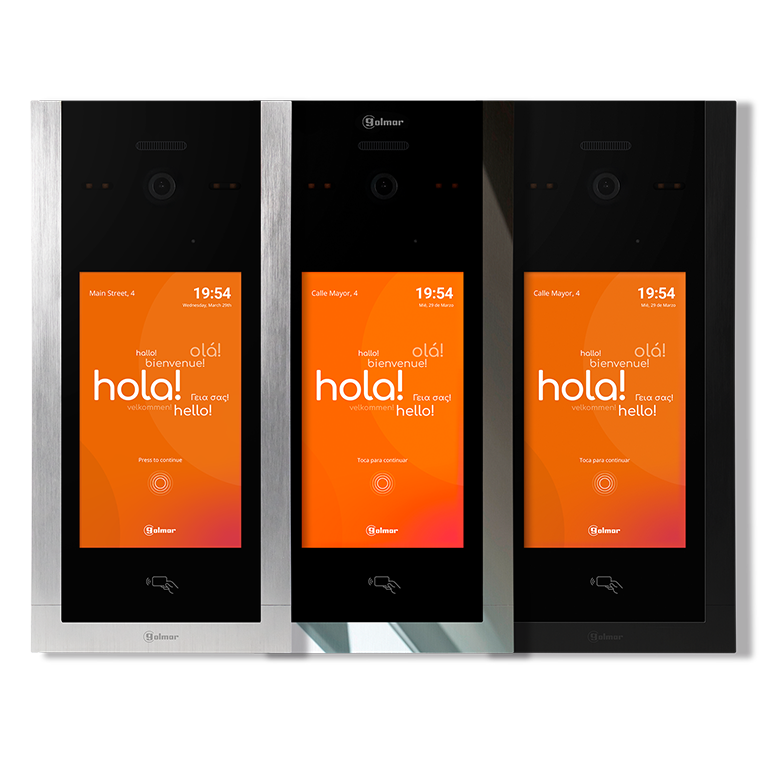

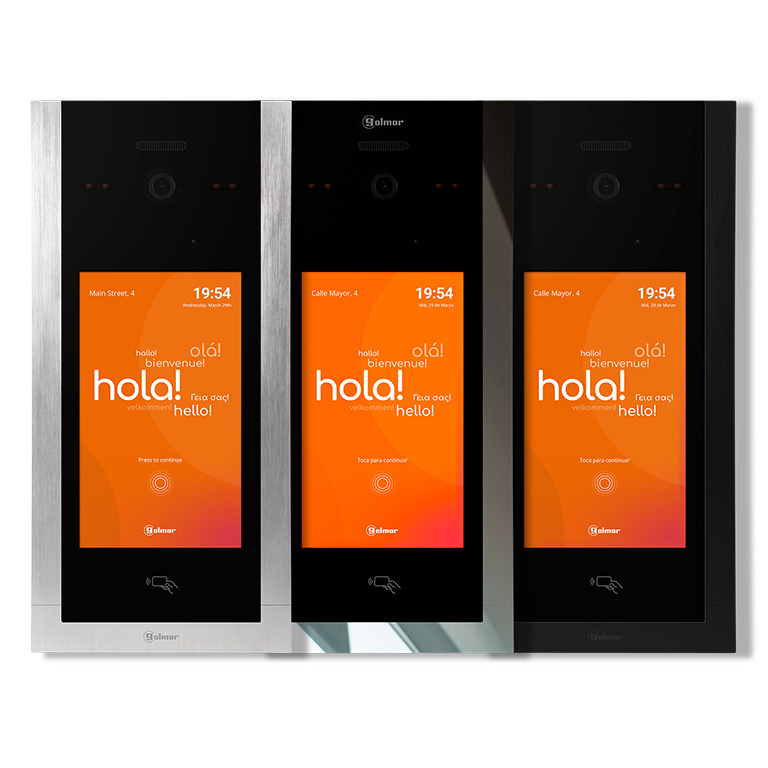

Touch panel with IP G+ technology.
Vandal resistant (IK-10) and weatherproof (IP-65) panel.
2MPx HD 130º wide angle camera with white self-starting LEDs for night vision.
7" TFT LCD colour screen with 600x1024px resolution that allows three calling methods: by entering the apartment address, searching through the contact list, or buttons.
Modular graphic interface that allows to modify the main screen shortcuts.
Inductive loop antenna for the heard impairment people.
Presence sensor and ambient light sensor.
Acoustic confirmation tones when display is pressed.
RFID proximity reader for up to 2000 cards.
RJ-45 connectors for IP G+ bus and for internet connection .

Dimensions: 155(W) x 317(H) x 7(D)mm

Wiegand26 connector for the video intercom and iP-Opener access control systems integration.
Possibility of displaying the door panel images in its own screen and customize the welcome screen image.
Basic programming via the menu in the screen and advenced settings through the web client.
Anti-sabotage alarm tamper.
12 Vcc input for local power.
2 relay contacts and 2 exit push button inputs.
Requires a CE-6502 SE embedding box.
