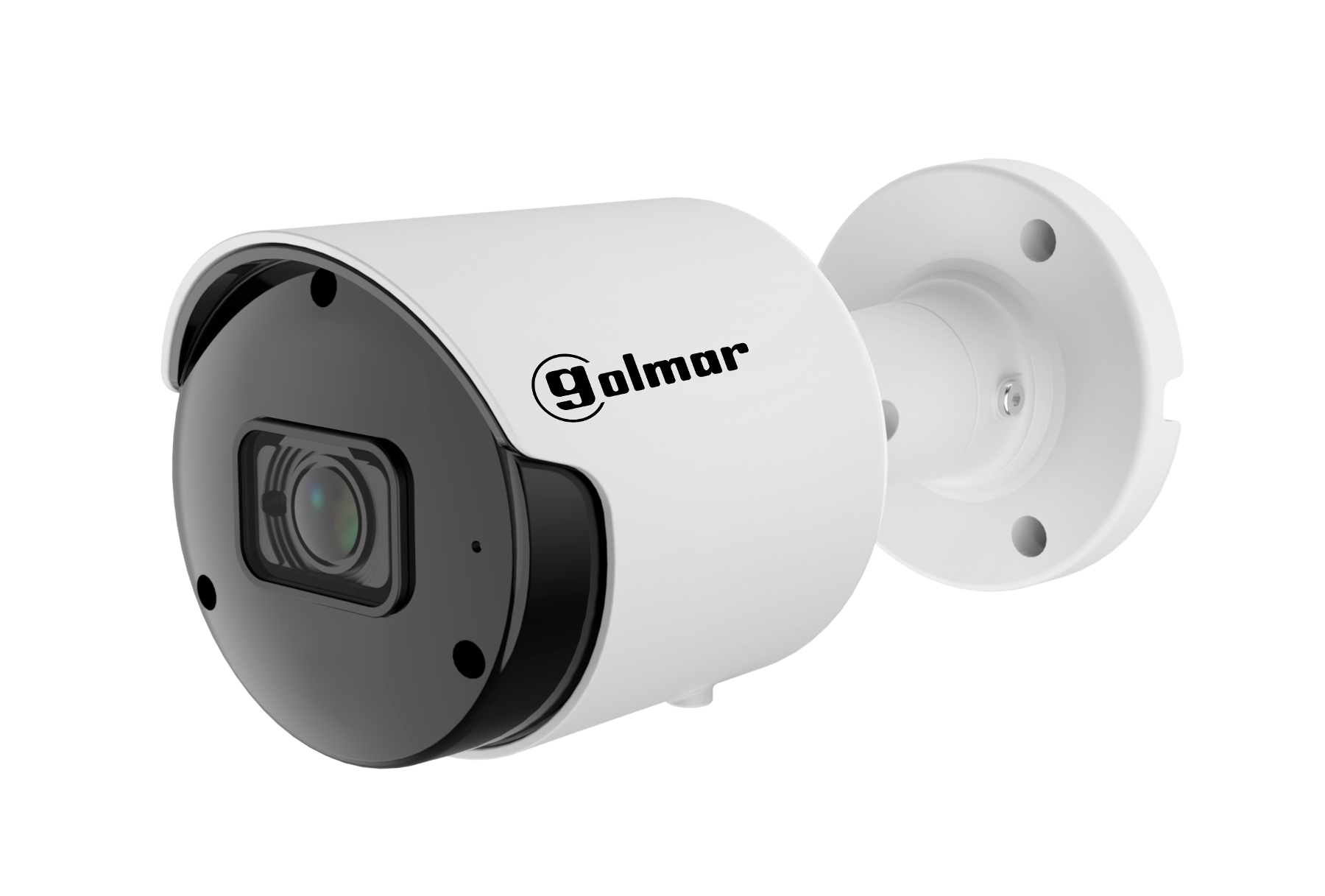

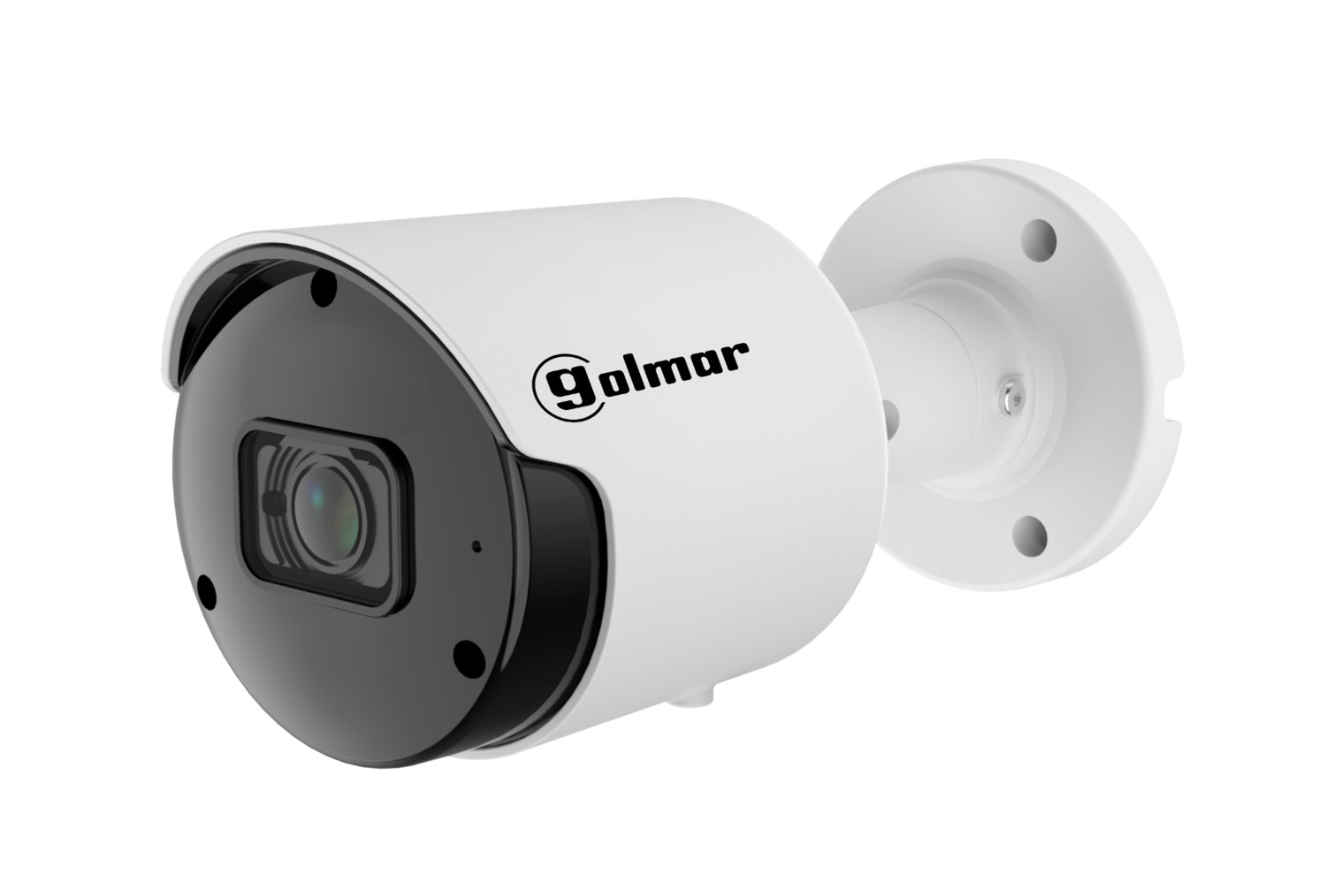

2 MP AHD4-21B2E camera with 2.8 mm lens
Reference : AHD4-21B2E
Product code: 31600703
EAN code : 8429898031132
- SC2332 sensor with 1080p resolution
- 4-in-1 technology (AHD / CVI / TVI / CVBS)
- Built-in microphone
- With AOC (audio over coaxial) technology
- 2.8mm fixed optics
- 88° horizontal viewing angle
- Infrared illumination with 30m range
- IP66 protection rating
- Compatible with connection bases:
- C-BASE01 (31691010), C-BASE02 (31691011) and C-BASE05 (31691014)
- Dimensions: 71 (Ø) x 151 (D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | Analógica |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Pared,Techo |
| Video output | BNC |
| Lense | Fija |
| Focal length | 2,8 mm |
| Horizontal field of view (º) | 88 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 30 |
| Autotracking | No |
| WDR | No |
| AOC | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR,D-WDR |
| Audio compression | Blanco |
| Reading distance (m) | 151 |
| Built-in microphone | Yes |
| Built-in speaker | No |
| UTC | Yes |
| Integrated WiFi | No |
| Compatibility | Blanco |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90 |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 3.5 |
| Dimensions - Diameter (mm) | 71 |
| Dimensions - Deep (mm) | 151 |
| Weight (gr.) | 300 |
| Certifications | CE, RoHS |
