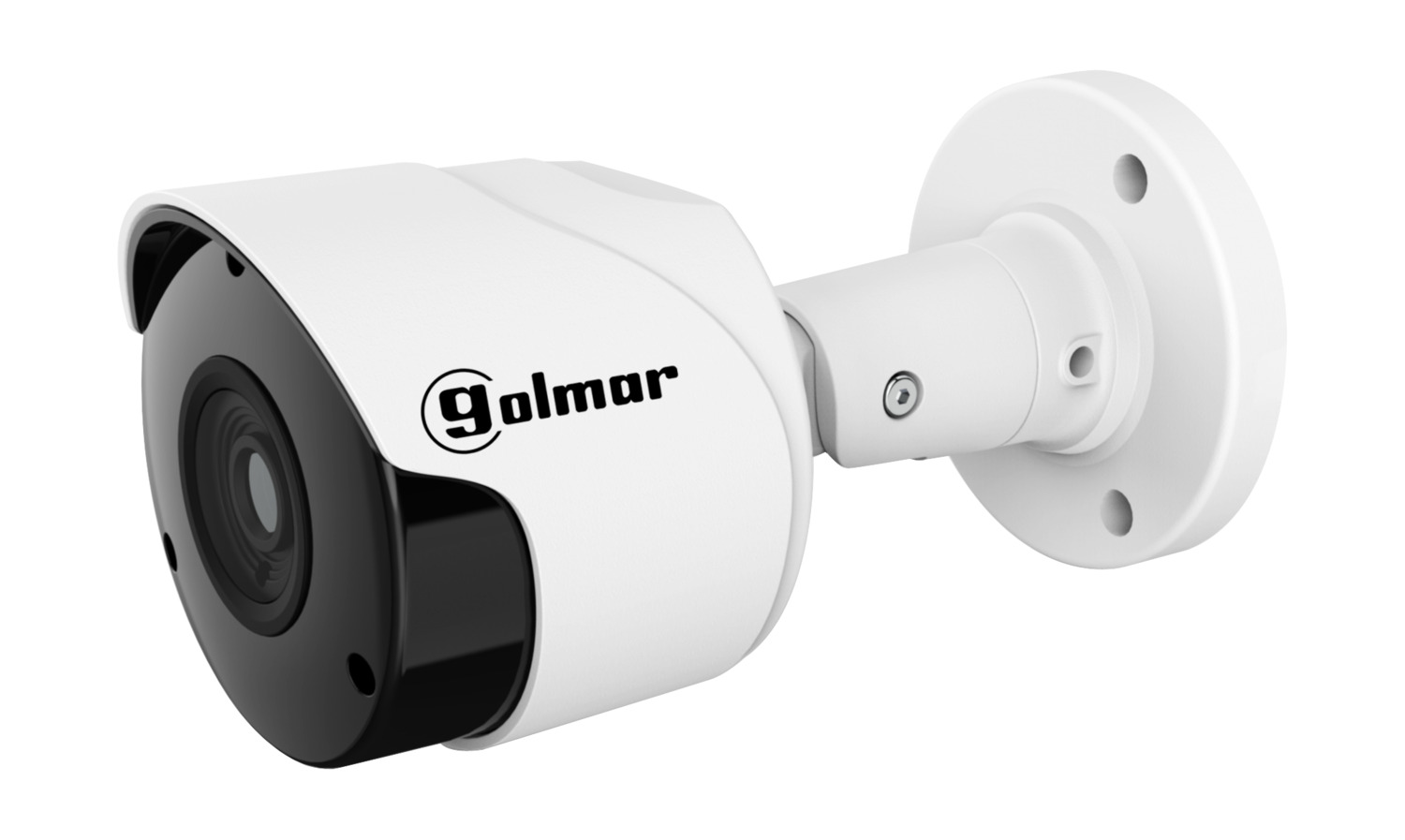

AHD4-21B5 5Mpx camera with 2.8mm lens
Reference : AHD4-21B5
Product code: 31600208
EAN code : 8429898033037
- SC5238 sensor with 5Mpx resolution
- 4 in 1 technology (AHD / CVI / TVI / CVBS)
- Built-in microphone
- With AOC technology (audio over coaxial)
- 2.8mm fixed lense
- 102° horizontal viewing angle
- Infrared illumination with 20m range
- IP66 protection rating
- Compatible with deep base: C-BASE01 (31691010) and
- C-BASE02 (31691011)
- Dimensions: 100(Ø) x 90(H) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | Analógica |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 20 |
| Colour | Blanco |
| Mounting | Pared,Techo |
| Video output | BNC |
| Lense | Fija |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F2.0 |
| Horizontal field of view (º) | 102 |
| Vertical field of view (º) | 57.4 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 20 |
| WDR | No |
| Additional functions | AWB,BLC,AES,DNR |
| Audio compression | Blanco |
| Built-in microphone | Yes |
| Built-in speaker | No |
| UTC | Yes |
| Compatibility | Blanco |
| Degree of protection (IP) | 66 |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 1 |
| Max. consumption (W) | 4 |
| Certifications | CE, RoHS |
