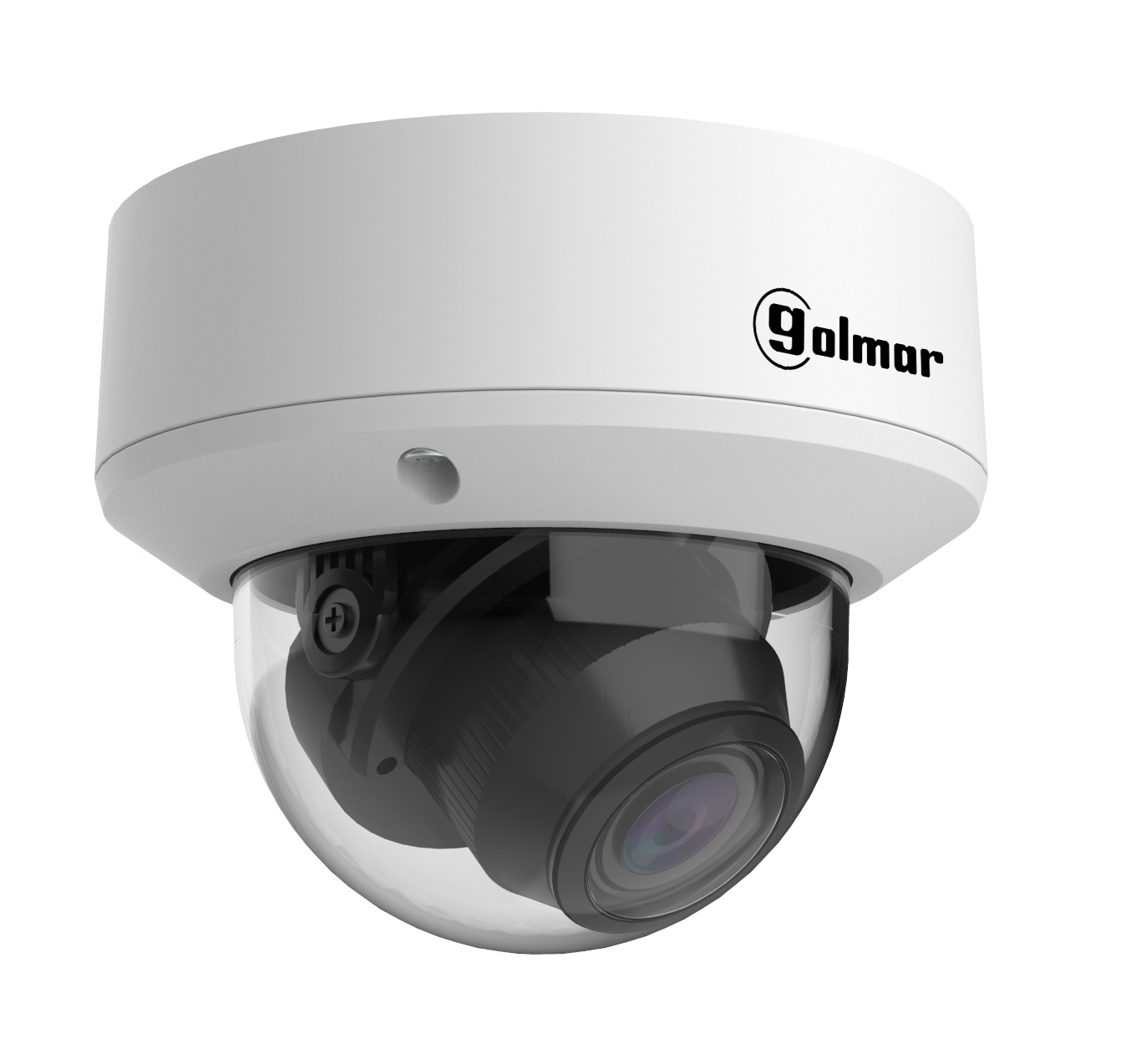

AHD4-24V2M 2Mpx vandal-proof camera with motorized lens
Reference : AHD4-24V2M
Product code: 31600248
EAN code : 8429898024547
- 1080p resolution sensor
- 4-in-1 technology (AHD / CVI / TVI /CVBS)
- 2.8 to 12mm motorised optics with auto focus
- Infrared illumination with 40m range
- IP66 protection rating
- Compatible with connection base C-BASE03
- Dimensions: 148(Ø) x 109(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | Analogic |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Image sensor | Sony IMX307 with 1080p resolution |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Ceiling |
| Video output | BNC |
| Lense | Motorized |
| Focal length | 2.8-12mm |
| Zoom (x) | 4 |
| IR distance max. (m) | 40 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Network interface | No |
| I / O alarms | No |
| I / O audio | No |
| Built-in microphone | No |
| UTC | Yes |
| Integrated WiFi | No |
| Compatibility | C-BASE03 |
| Degree of protection (IK) | 10 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90 |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 5 |
| Dimensions - Diameter (mm) | 148 |
| Dimensions - Deep (mm) | 109 |
| Weight (gr.) | 863 |
| Certifications | CE,RoHS |
