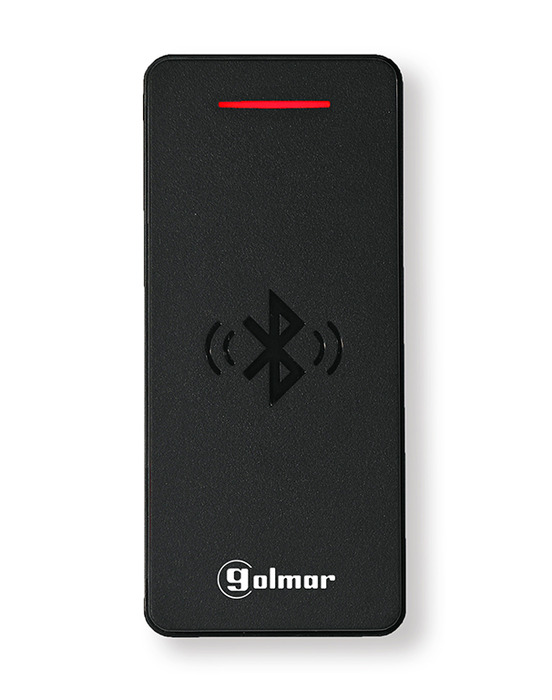

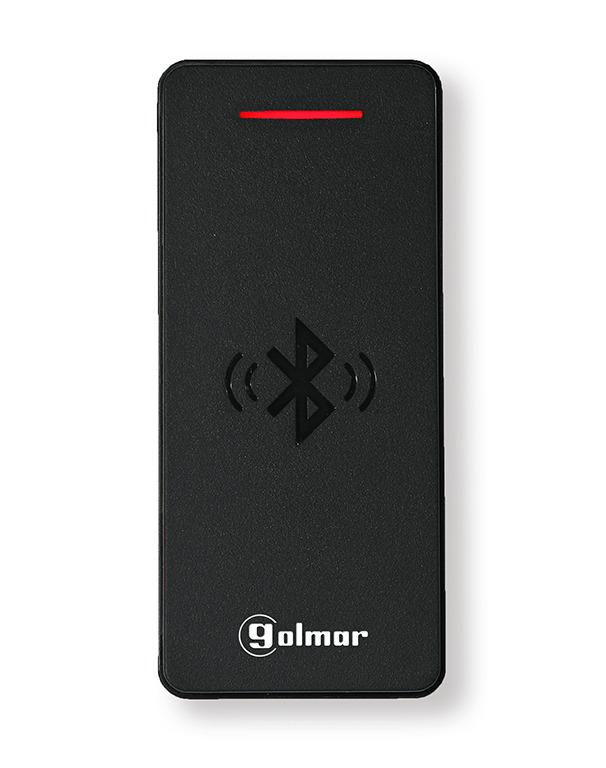

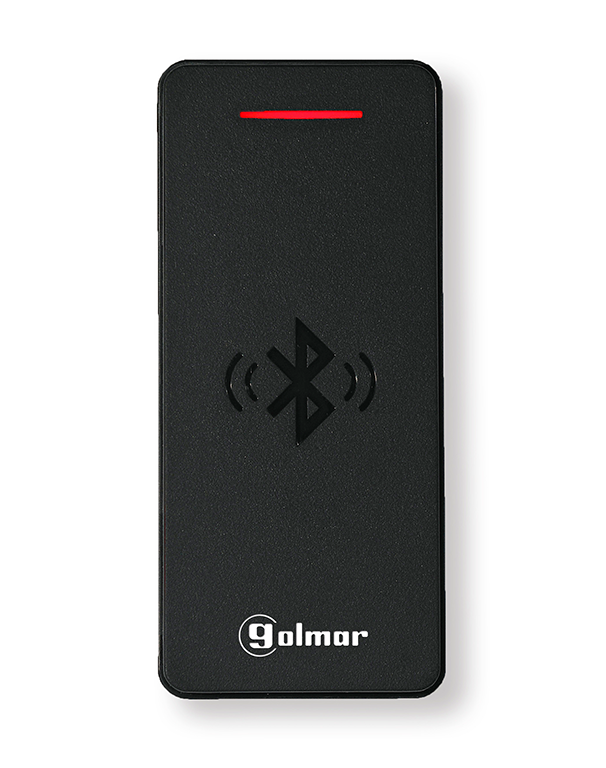

Proximity wall reader
Reference : BLE-S
Product code: 20720003
EAN code : 8429898024455
- Dual proximity reader (125KHz and 13.56MHz) and Wiegand 26 technology
- For OPENER IP and WCONTROL controllers
- Compatible with PROKEY ID, TAGKEY ID, CARDDOOR MF+, TAGDOOR MF+, ISOPROX and KEYPROX SE cards and keyfobs
- Status indicator light
- Wall installation with IP65 protection rating
Dimensions: 48(W) x 107(H) x 23(D) mm
More information
| Specifications | |
|---|---|
| Technology | wiegand |
| Type Function | Esclavo |
| Reading / Detection Type | Proximidad |
| RFID Frequency (KHz) | 125 |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 5 |
| Use | Interior |
| Mounting | Supericie |
| Incorporates base | Yes |
| State LEDs | Yes |
| Input voltage | 12Vcc |
| Powered by controller | Yes |
| Material | 1 |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 107 |
| Dimensions - Width (mm) | 48 |
| Dimensions - Deep (mm) | 23 |
| Weight (gr.) | 135 |
