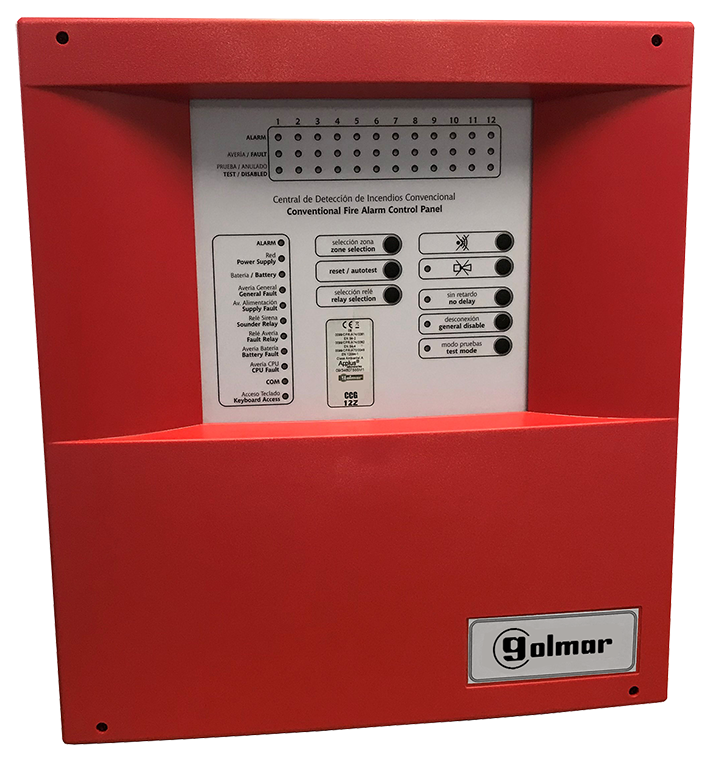

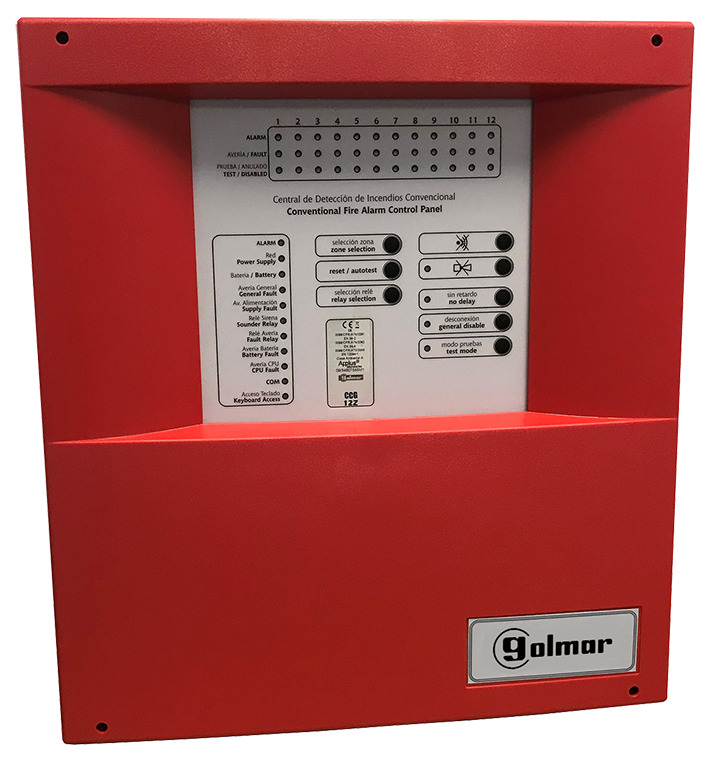

Conventional Fire Detection Control Panel CCG Series 8 Zones
Reference : CCG-08Z
Product code: 21111037
EAN code : 8429898026305
- Conventional Fire Detection Control Panel CCG Series 8 Zones
- Certified according to EN54-2 and EN54-4 standards
- Metal enclosure with ABS plastic front panel
- Supports up to 32 GOLMAR conventional detectors and manual call points
- Differentiates between detector alarm and call point alarm
- 2 supervised sounder outputs with a total maximum consumption of 2A
- 1 alarm output (NO/NC) and 1 fault output (NO) via volt-free relays
- 1 auxiliary 30VDC output with a maximum consumption of 750mA
- Optical and acoustic indicators per zone
- Requires 2 BAT-7A batteries (not included)
- Dimensions: 331(W) x 363(H) x 96(D) mm
More information
| Specifications | |
|---|---|
| Serie | CCG |
| Installation | 2 hilos |
| Technology | Convencional |
| Number of zones | 8 |
| Number of zones (max.) | 8 |
| Devices Line (max.) | 32 |
| Battery charger | Yes |
| Exit relay. | 2 |
| Mermaid output. | 2 |
| Alarm output | 0 |
| Signaling | Led,Acústicamente |
| Input voltage (Vac) | 230 |
| Mounting | Superfície |
| Use | Interior |
| Colour | 1 |
| Manufactured according to Norma. | 32 |
| Certifications | 1 |
| Dimensions - High (mm) | 363 |
| Dimensions - Width (mm) | 331 |
| Dimensions - Deep (mm) | 96 |
