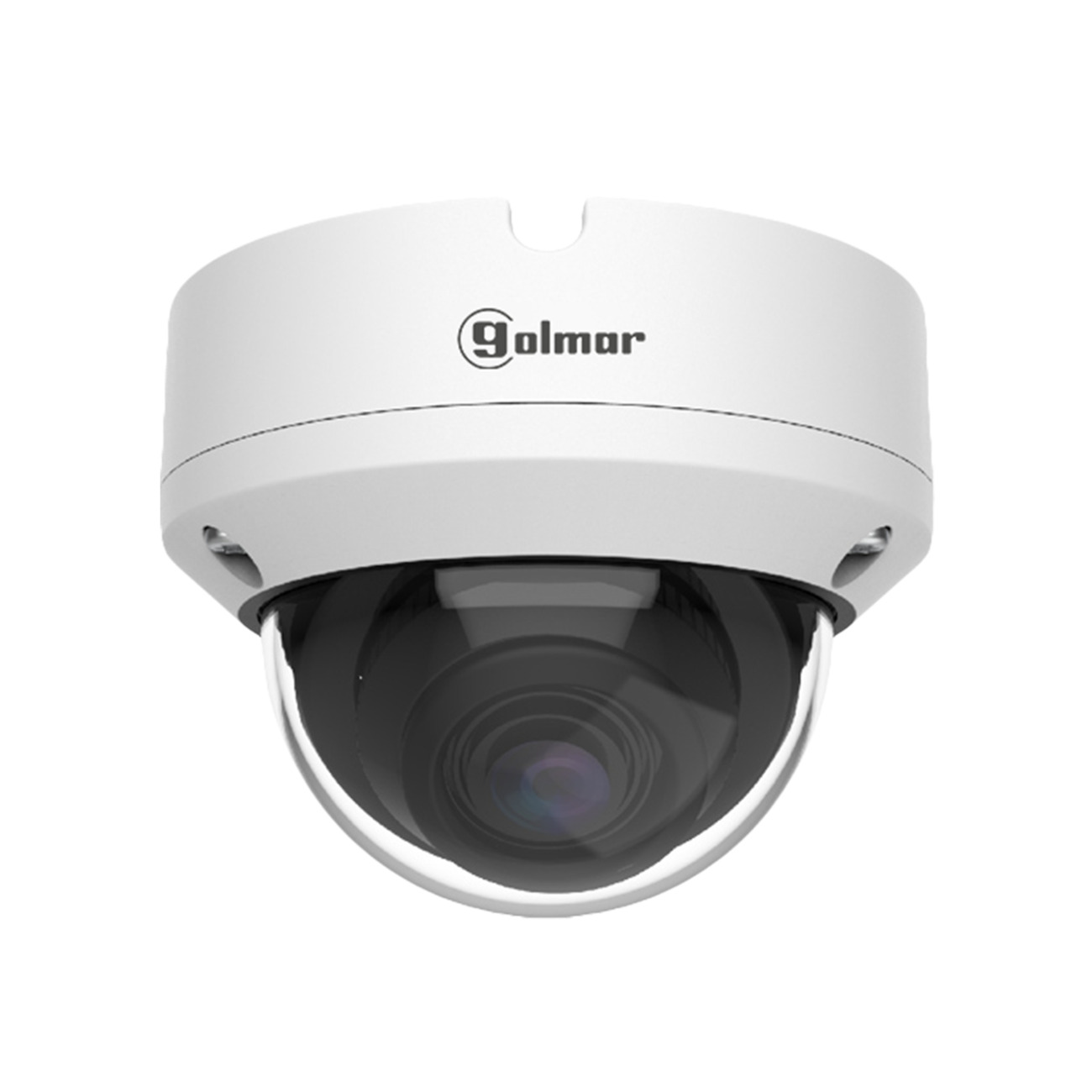

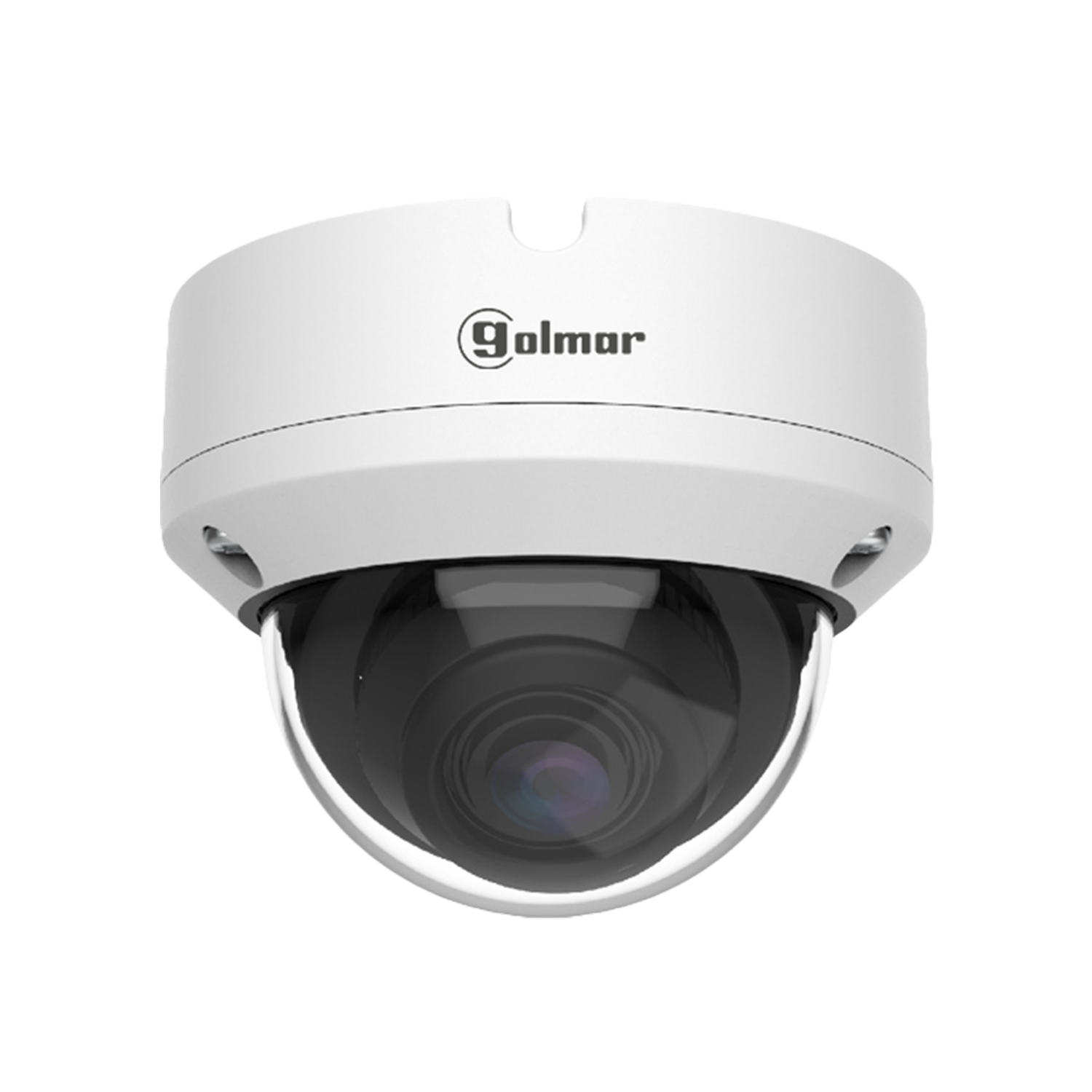

CIP-121V2A 2Mpx vandal-proof camera with 2.8mm lens
Reference : CIP-121V2A
Product code: 31692080
EAN code : 8429898030913
- 2Mpx PoE vandal-resistant dome with 2.8mm fixed lens
- 2Mpx 1920(H) x 1080(V) sensor
- H.264 / H.265 compression
- Proprietary protocol
- Onvif profile (S/G/T)
- 2.8mm fixed optics
- Infrared illumination with 20m range
- IP67 protection rating
- IK10 anti-vandalism rating
- Dimensions: 115(Ø) x 91(H) mm
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Fija |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 105 |
| Vertical field of view (º) | 55 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 20 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 256Kbps ~ 8Mbps |
| Main Stream (FPS) | 60 fps @ 1080p (1920 x 1080), 960P(1280x960), 720P(1280x720) |
| Sub Stream (FPS) | 30 fps @ 720p (1280 x 720), VGA(640x480), QVGA(320x240) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Network interface | RJ45 |
| Built-in microphone | No |
| Built-in speaker | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | Blanco |
| Degree of protection (IK) | 10 |
| Degree of protection (IP) | 67 |
| Material | 60 fps @ 1080p (1920 x 1080), 960P(1280x960), 720P(1280x720) |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Rest consumption (W) | 3.5 |
| Max. consumption (W) | 5 |
| Dimensions - High (mm) | 91.6 |
| Dimensions - Diameter (mm) | 115 |
| Weight (gr.) | 556 |
| Certifications | CE, RoHS |
