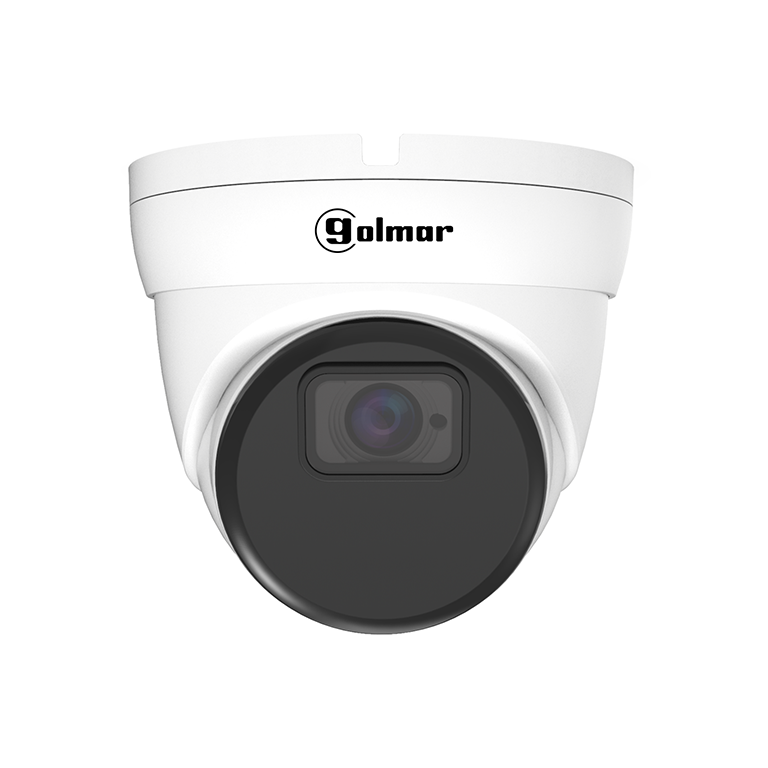

CIP-124D2MA 2Mpx camera with motorized lens
Reference : CIP-124D2MA
Product code: 31692081
EAN code : 8429898030920
- 2Mpx PoE dome with 2.8 to 12mm lens
- 1/2.8" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif
- 2.8 to 12mm motorised lense with autofocus
- 101° to 33° horizontal angle of view
- Advanced video analytics
- Infrared illumination with 45m range
- IP67 protection rating
- Audio, reset and alarm terminals
- Power-Out function
- Compatible with deep base base02 and deep base04
- Dimensions: 135(Ø) x 120(H) mm
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Motorizada |
| Focal length | 2,8 - 12 mm |
| Zoom (x) | 4 |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 101º(W) - 33º(T) |
| Vertical field of view (º) | 52º(W) - 18º(T) |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 45 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 256Kbps ~ 8Mbps |
| Main Stream (FPS) | 60fps @ 1080P (1920x1080), 960P (1280x960), 720P (1280x720) |
| Sub Stream (FPS) | 30fps @ 720P (1280x720), VGA(640x480), QVGA(320x240 |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Network interface | RJ45 |
| Built-in microphone | No |
| Built-in speaker | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | Blanco |
| Degree of protection (IP) | 67 |
| Material | 60fps @ 1080P (1920x1080), 960P (1280x960), 720P (1280x720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Rest consumption (W) | 3 |
| Max. consumption (W) | 9 |
| Dimensions - High (mm) | 120 |
| Dimensions - Diameter (mm) | 135 |
| Weight (gr.) | 846 |
| Certifications | CE, RoHS |
