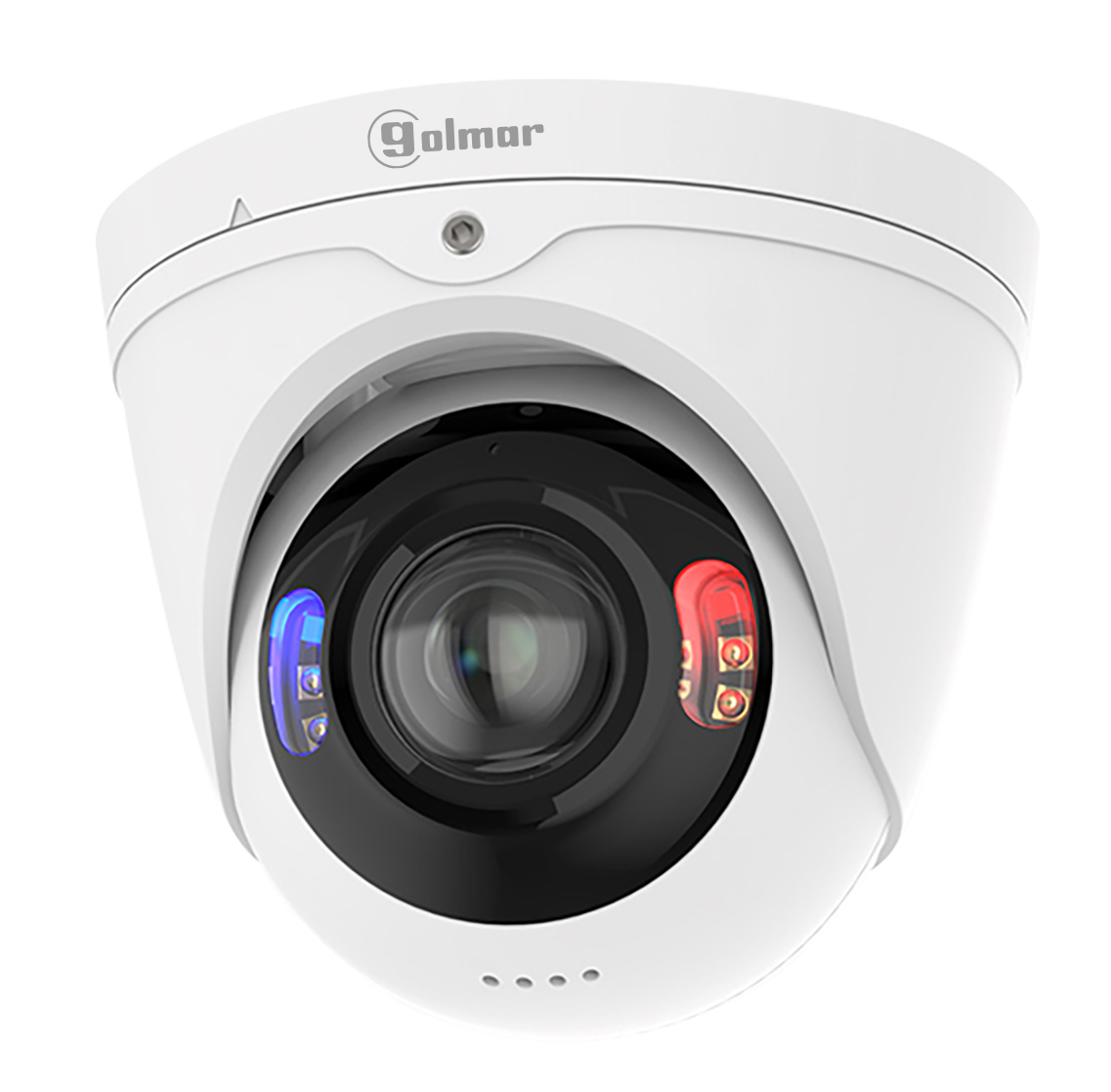

CIP-180D8 8Mpx (4K) 180° panoramic camera
Reference : CIP-180D8
Product code: 31600927
EAN code : 8429898020969
- FULL COLOR Dome with 8MP resolution
- Fixed lens of 2.0mm
- FOV of 180° without the need for dewarping
- Blue and red LEDs for deterrent effect
- Advanced video analytics
- 120dB WDR
- Two-way audio (built-in microphone and speaker)
- MicroSD card slot (max. 256GB)
- 12VDC or PoE power supply
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 8Mpx |
| Images by sec. (FPS) | 20 |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Fija |
| Focal length | 2,0 mm |
| Max. Aperture ratio | 2.4 |
| Horizontal field of view (º) | 180 |
| Vertical field of view (º) | 91 |
| Night vision mode | Día/Noche |
| White light distance (m) | 25 |
| IR distance max. (m) | 15 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 256Kbps ~ 16Mbps |
| Main Stream (FPS) | 20fps @ 8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720) |
| Sub Stream (FPS) | 20fps @ 720P(1280x720), VGA(640x480) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,SOD,CC,HM |
| Internal storage | Sí (máx 256Gb) |
| Network interface | RJ45 |
| I / O alarms | 25 |
| I / O audio | 25 |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | Blanco |
| Degree of protection (IP) | IP67 |
| Material | 20fps @ 8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 13 |
| Dimensions - High (mm) | 97.7 |
| Dimensions - Diameter (mm) | 116.5 |
| Weight (gr.) | 587.5 |
| Certifications | CE, RoHS |
