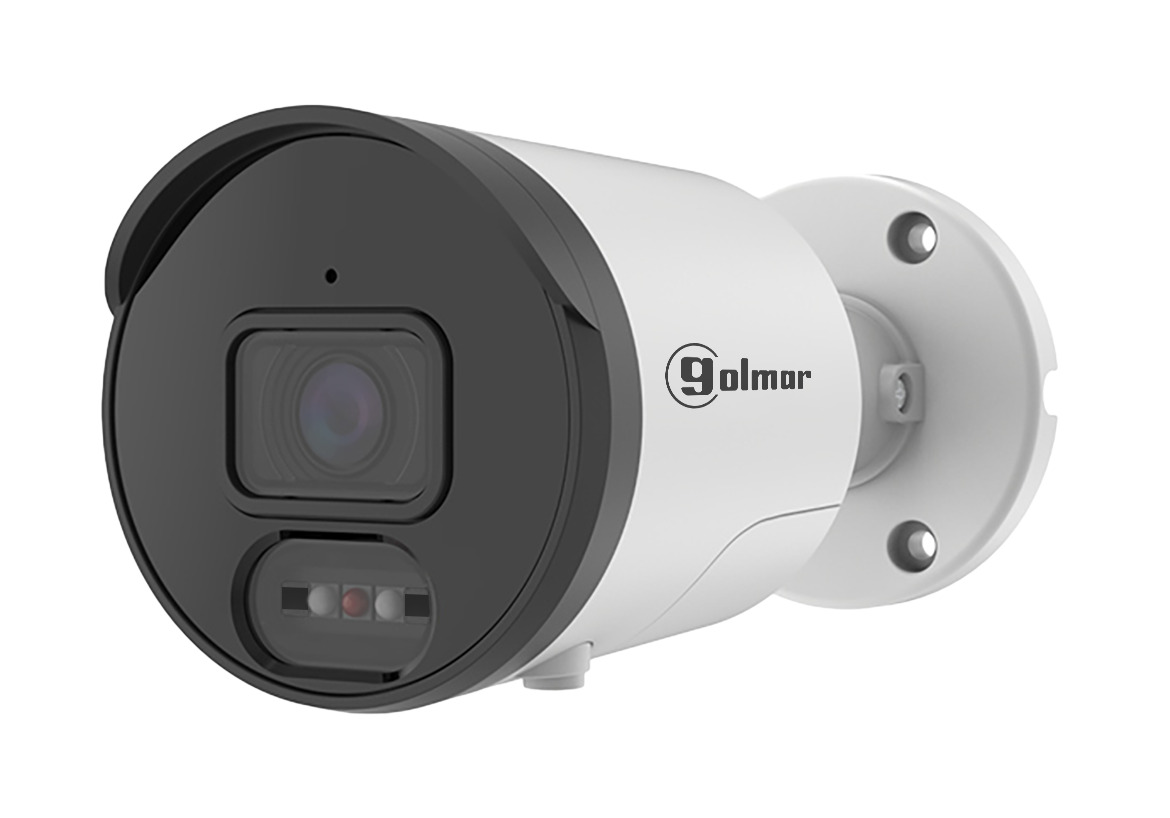

CIP-21B4E 4Mpx camera with 2.8mm lens
Reference : CIP-21B4E
Product code: 31691057
EAN code : 8429898028125
- 1/3" progressive CMOS sensor
- H.264 / H.265 compression
- Proprietary protocol / ONVIF
- 2.8mm fixed lens
- 96° horizontal viewing angle
- Infrared illumination with 25m range
- IP66 protection rating
- Compatible with C-BASE01 and C-BASE05 deep bases
- Dimensions: 70(Ø) x 150(D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Max. Resolution | 4Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Pared,Techo |
| Lense | Fija |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 96 |
| Vertical field of view (º) | 52 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 25 |
| WDR | No |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 512Kbps - 4Mbps |
| Main Stream (FPS) | 25fps @ 4MP(2560x1440) |
| Sub Stream (FPS) | 25fps @ VGA(640x480) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Face recognition | No |
| Video Analysis | LCD,PID,PD,VD |
| Internal storage | Sí (máx 256Gb) |
| Reading distance (m) | 152 |
| Network interface | RJ45 |
| Built-in microphone | Yes |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS |
| Compatibility | Blanco |
| Degree of protection (IP) | 66 |
| Material | 25fps @ 4MP(2560x1440) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Dimensions - Diameter (mm) | 70 |
| Dimensions - Deep (mm) | 152 |
| Weight (gr.) | 268 |
| Certifications | CE, RoHS |
