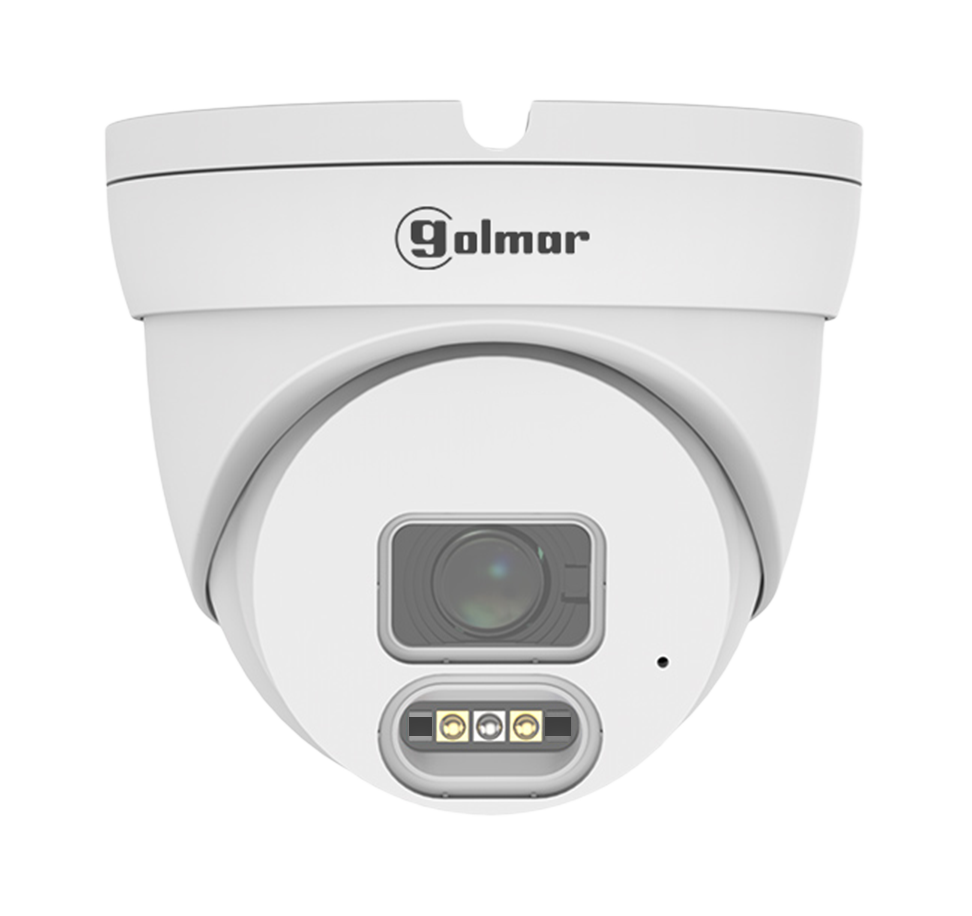

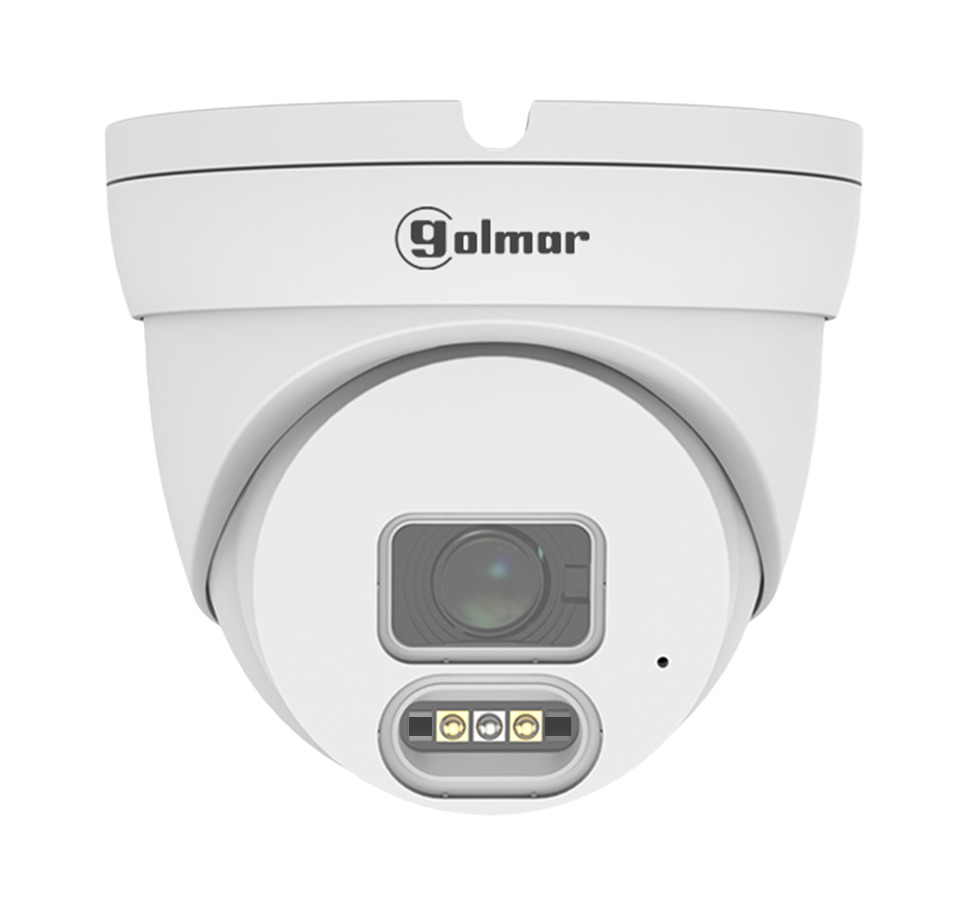

CIP-21D4E 4Mpx camera with 2.8mm lens
Reference : CIP-21D4E
Product code: 31691058
EAN code : 8429898028132
- 4Mpx PoE dome with 2.8mm lense
- 1/3" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif
- 2.8mm fixed lens with 96° horizontal field of view
- Infrared illumination with 25m range
- IP66 protection rating
- Micro SD card slot
- Built-in microphone
- Compatible with deep bases C-BASE01 and C-BASE02
- Dimensions: 100(Ø) x 90(H) mm
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 4Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Fija |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 96 |
| Vertical field of view (º) | 52 |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 25 |
| Autotracking | No |
| WDR | No |
| AOC | No |
| Additional functions | AWB,BLC,AES,D-WDR |
| Bitrate | 512Kbps - 4Mbps |
| Main Stream (FPS) | 25 fps @ 4Mpx (2560 x 1140) |
| Sub Stream (FPS) | 25 fps @ VGA (640 x 480) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Face recognition | No |
| Video Analysis | LCD,PID,PD,VD |
| Internal storage | Sí (máx 256Gb) |
| Reading distance (m) | 90 |
| Network interface | RJ45 |
| Built-in microphone | Yes |
| Built-in speaker | No |
| UTC | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS |
| Compatibility | Blanco |
| Degree of protection (IP) | 66 |
| Material | 25 fps @ 4Mpx (2560 x 1140) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Dimensions - Diameter (mm) | 100 |
| Dimensions - Deep (mm) | 90 |
| Weight (gr.) | 311 |
| Certifications | CE, RoHS |
