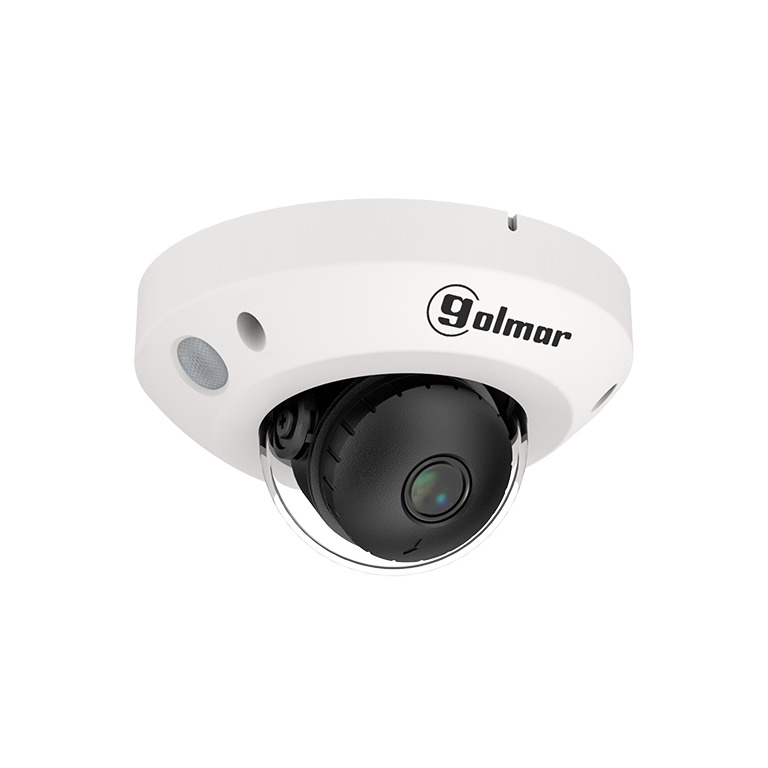

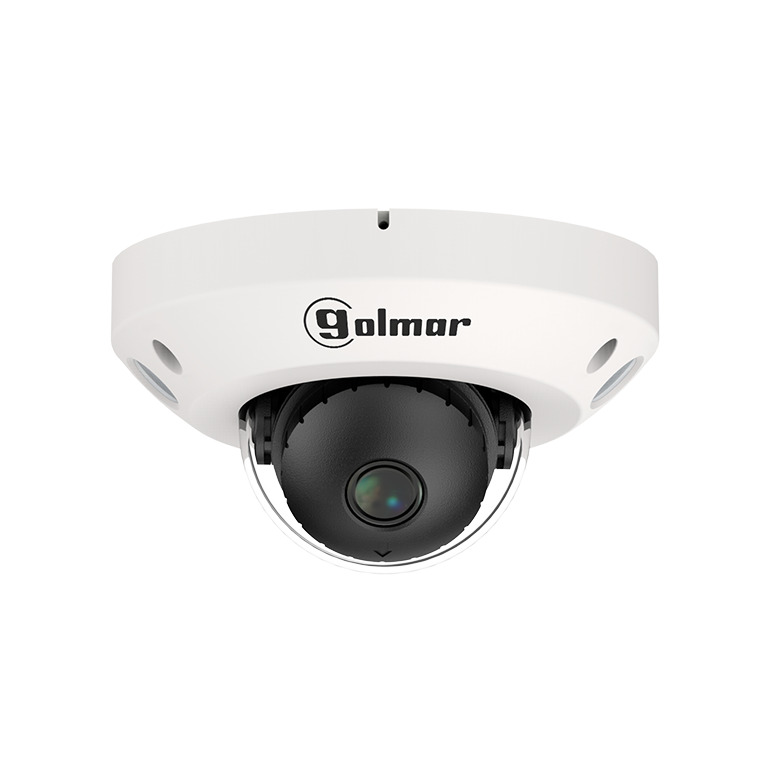

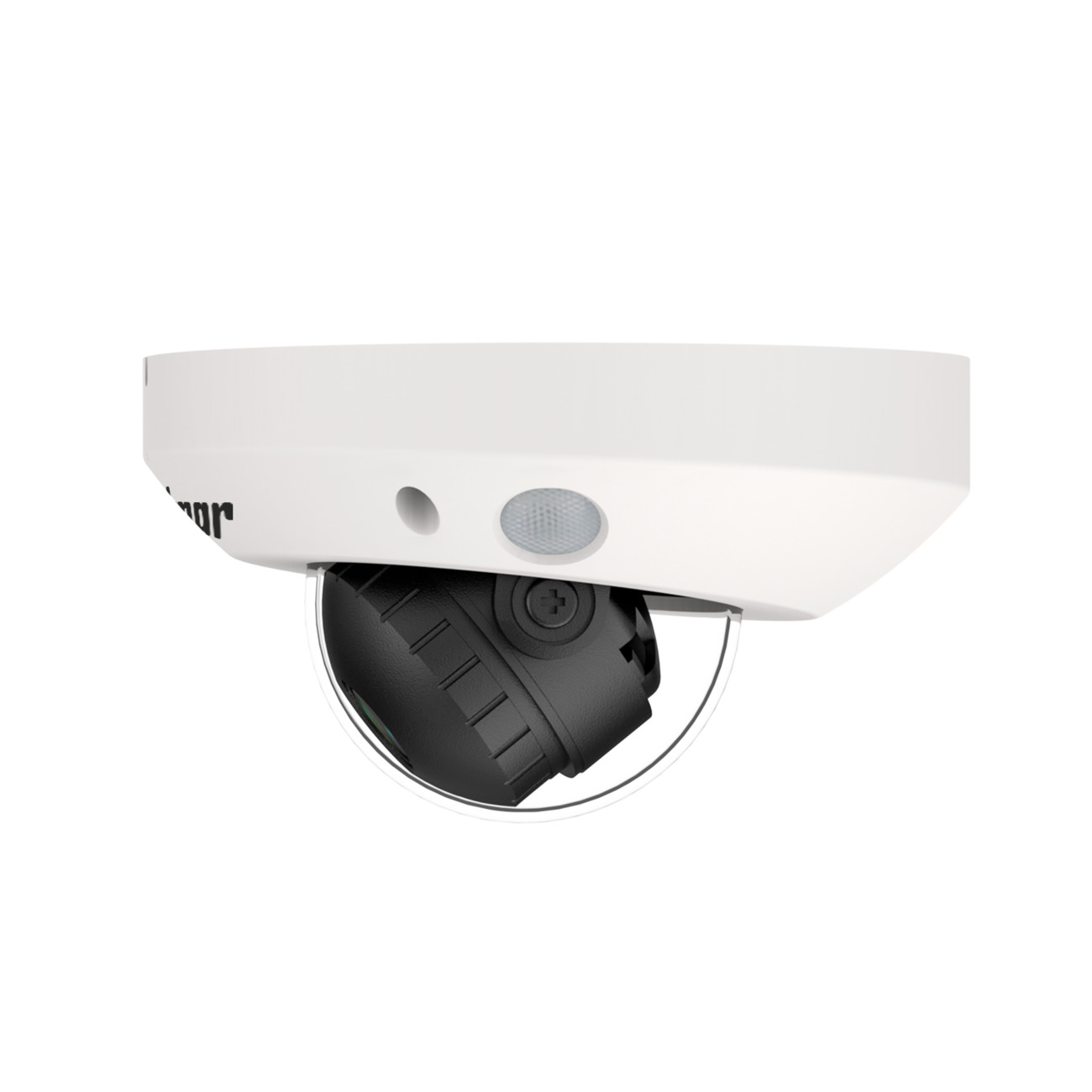

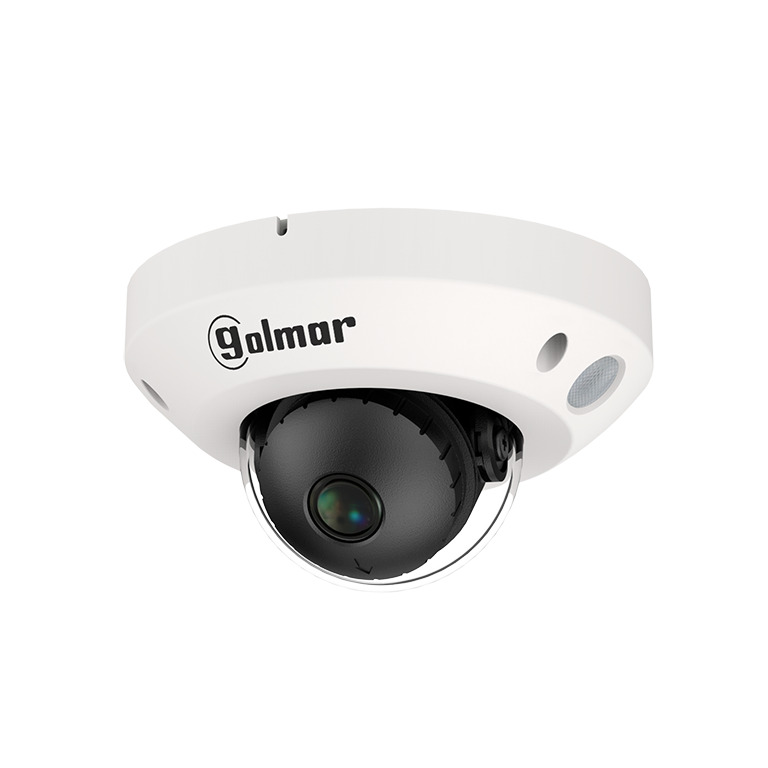

CIP-21D5C 5Mpx compact camera with 2.8mm lens
Reference : CIP-21D5C
Product code: 31692051
EAN code : 8429898025803
- 5Mpx compact PoE dome with 2.8mm lense
- 1/2.7" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif (S, G, T)
- Fixed 2.8mm lense with 88° horizontal field of view
- Infrared illumination with 25m range
- Built-in microphone
- IP66 protection rating
- IK10 rated glass
- Dimensions: 115(Ø) x 60(D) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | IP |
| Image sensor | 1/2,7" progressive CMOS |
| Max. Resolution | 5Mpx |
| Colour | White |
| Mounting | Ceiling |
| Lense | Fixed |
| Focal length | 2,8mm |
| Horizontal field of view (º) | 88 |
| Night vision mode | Day/Night |
| IR distance max. (m) | 25 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 8Kbps ~ 8Mbps |
| Main Stream (FPS) | 5MPx (2880x1620) |
| Sub Stream (FPS) | 720P (1280x720) |
| Video compression | H.264,H.265 |
| Face recognition | No |
| Video Analysis | LCD,PID,PD,VD |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | No |
| I / O audio | No |
| Built-in microphone | Yes |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Compatibility | C-BASE02 |
| Degree of protection (IP) | IP66 |
| Material | Plastic |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Input voltage (V) | PoE |
| Included power supply | No |
| Max. consumption (W) | 9 |
| Dimensions - High (mm) | 60 |
| Dimensions - Diameter (mm) | 115 |
| Certifications | CE,RoHS |
