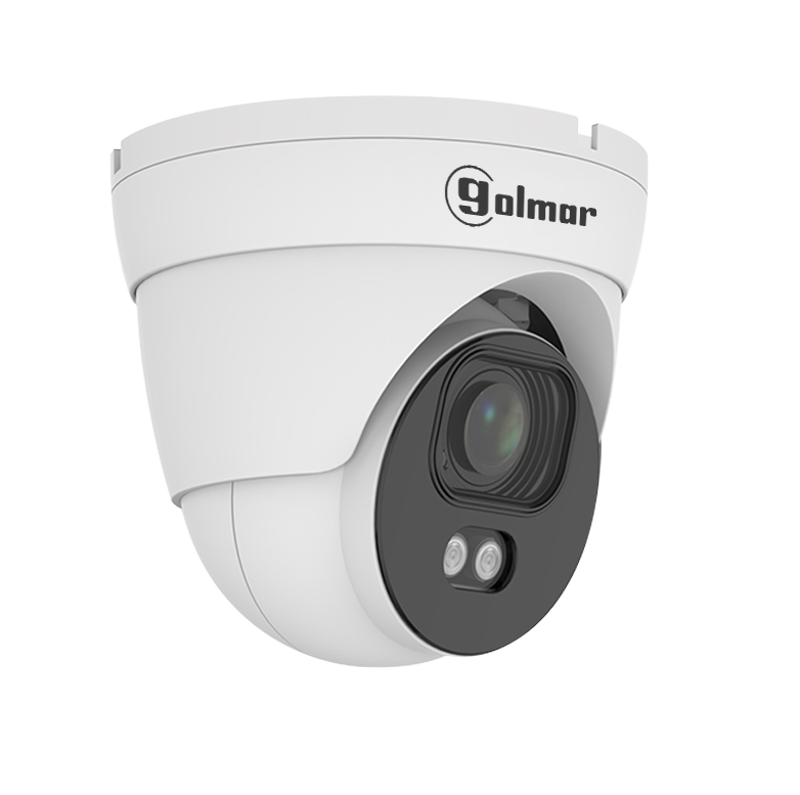

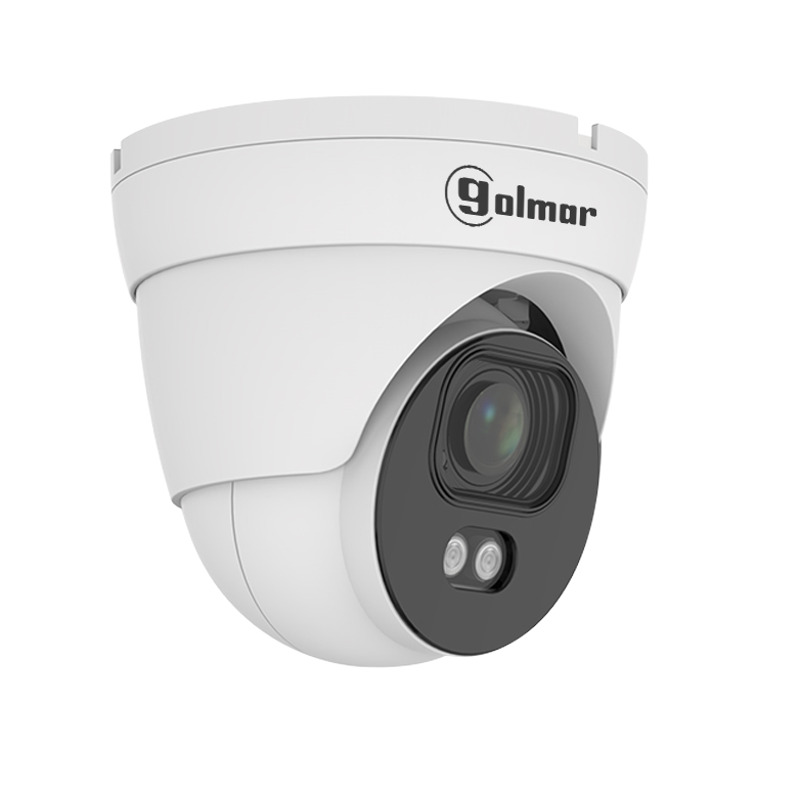

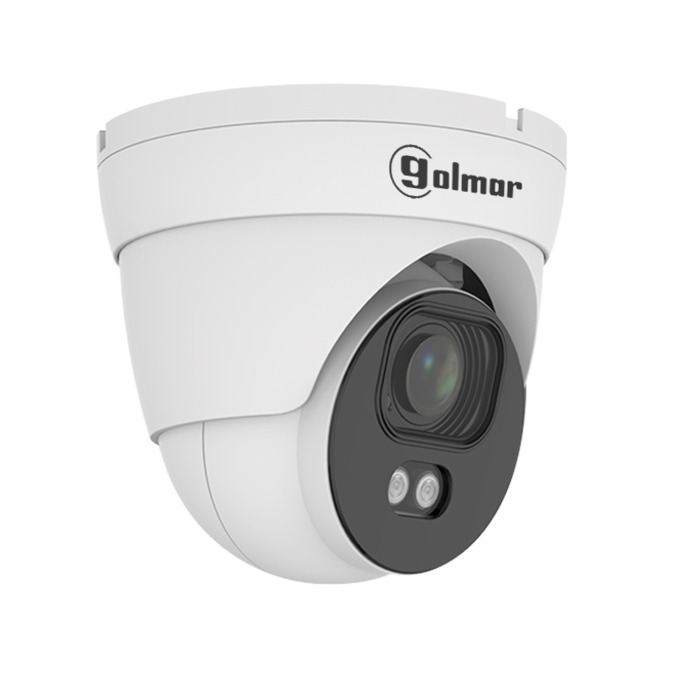

CIP-24D8FA 8Mpx (4K) full color camera with motorized lens
Reference : CIP-24D8FA
Product code: 31691033
EAN code : 8429898026152
- 1/2.7" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif (S/G/T profile)
- 2.8 to 12mm autofocus motorised lense
- 111° to 36° horizontal angle of view
- Advanced video analytics (perimeter, line of sight, pedestrian, vehicle, face detection, crowd and queue detection...)
- 30m range infrared illumination
- White light illumination with a range of 25m
- IP67 degree of protection
- Micro SD card slot
- Audio, reset and alarm terminals
- Power-Out function
- Compatible with sockets C-BASE02 and C-BASE04
- Dimensions: 135(Ø) x 120(D) mm
More information
| Specifications | |
|---|---|
| Type | Domo |
| Technology | IP |
| Max. Resolution | 8Mpx |
| Colour | Blanco |
| Mounting | Techo |
| Lense | Motorizada |
| Focal length | 2,8 - 12 mm |
| Zoom (x) | 4 |
| Max. Aperture ratio | F1,2 |
| Horizontal field of view (º) | 113(W) - 36(T)° |
| Vertical field of view (º) | 59(W) - 20(T)° |
| Night vision mode | Full Color |
| White light distance (m) | 25 |
| IR distance max. (m) | 30 |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 256Kbps ~ 16Mbps |
| Main Stream (FPS) | 25fps @ 8MP(3840x2160), 5MP(2592x1944), 4MP (2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280*960), 720P(1280x720) |
| Sub Stream (FPS) | 25 fps @ 720P(1280x720), VGA(640x480), QVGA(320x240) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Reading distance (m) | 120 |
| I / O alarms | 25 |
| I / O audio | 25 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | Blanco |
| Degree of protection (IP) | 67 |
| Material | 25fps @ 8MP(3840x2160), 5MP(2592x1944), 4MP (2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280*960), 720P(1280x720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Dimensions - Diameter (mm) | 135 |
| Dimensions - Deep (mm) | 120 |
| Weight (gr.) | 829 |
| Certifications | CE, RoHS |
