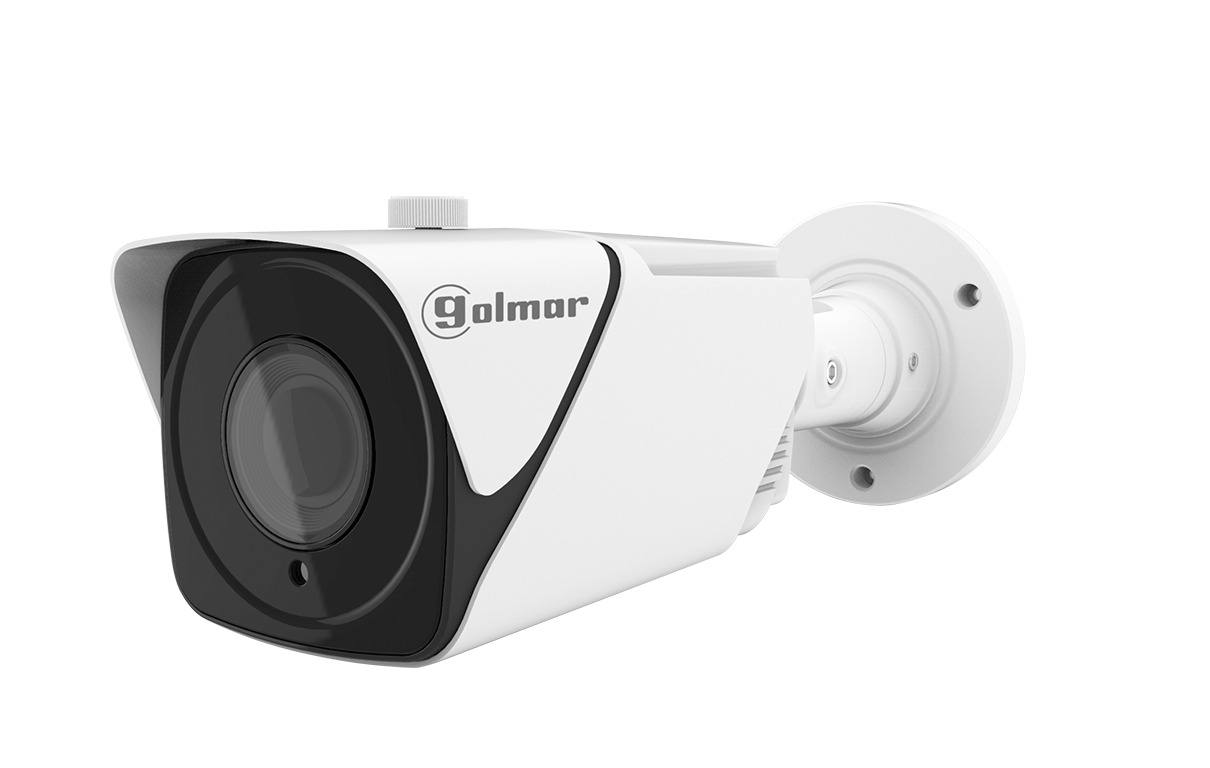

CIP-50B2MA 2Mpx camera with 5-50mm motorized lens
Reference : CIP-50B2MA
Product code: 31691061
EAN code : 8429898032993
- Bullet with video analysis an motorized lense 2Mpx
- 1/2.8" Progressive CMOS Sensor
- 5-50mm motorized autofocus lense
- Field of view 49° - 7°
- Compression H.265 / H.264
- Owner protocol / Onvif 2.6
- Advanced video analysis (perimeter, crossing line,
- stationary object, pedestrian detection, face detection, counter)
- 40 leds (SMD) / 40m
- Degree of protection IP66
- With audio terminal, reset, alarm, video output
- Dimensions 108 (Ø) x 301(P)mm
- Power supply 12Vcc / PoE
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Image sensor | 1/2,7" progresivo CMOS |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Wall |
| Lense | Motorized |
| Focal length | 5-50mm |
| Zoom (x) | 10 |
| Max. Aperture ratio | F2.0 ±5% |
| Horizontal field of view (º) | 49 ~ 7° |
| Minimum illumination (lux) | Color 0.01lux @ F1.2(AGC ON) ; B/N 0 lux @ IR ON |
| Night vision mode | Day/Night |
| IR distance max. (m) | 40 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,3D-DNR |
| Bitrate | 256Kbps ~ 12Mbps |
| Video compression | H.264,H.265 |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC |
| Internal storage | Yes (max 256Gb) |
| I / O alarms | 1/1 |
| I / O audio | 1/1 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | C-BASE02 |
| Degree of protection (IP) | IP66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -30 |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Dimensions - Diameter (mm) | 108 |
| Dimensions - Deep (mm) | 301 |
| Certifications | CE,RoHS |
