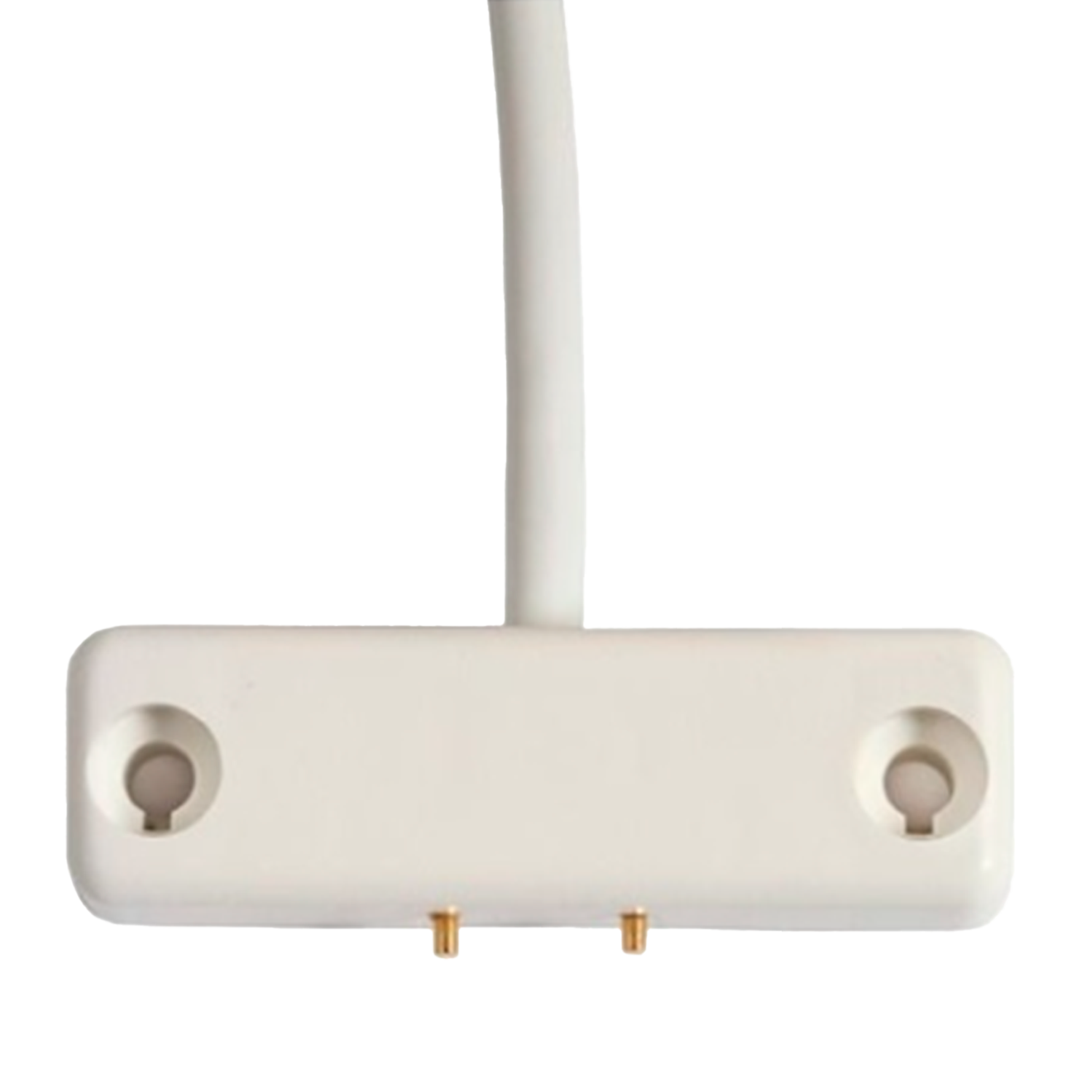

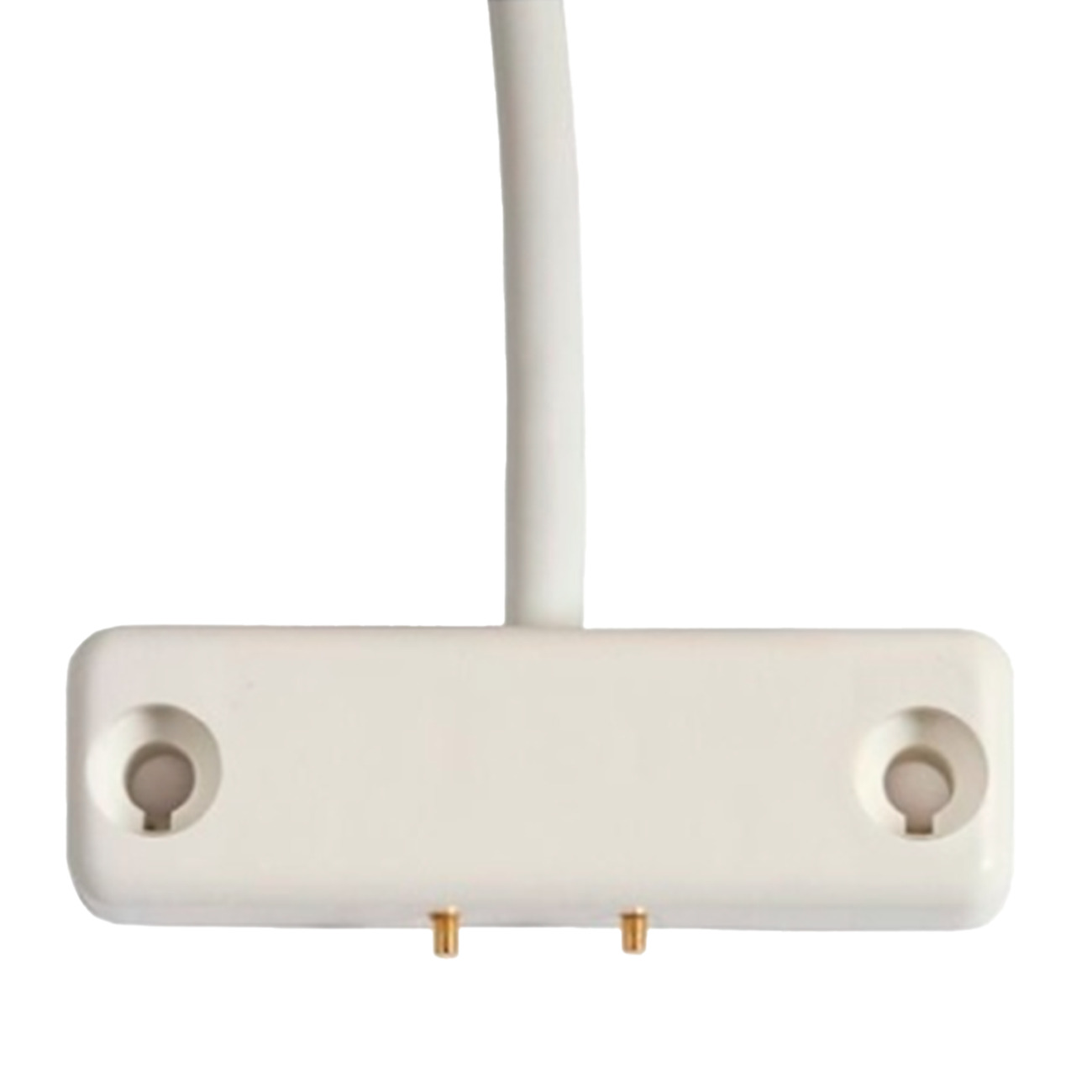

Wired flood detection
Reference : DA-6F/IN
Product code: 21000062
EAN code : 879196004914
- Wired Flood Detector IP67
- Alarm triggered when water reaches above the sensor level
- Power supply required: 12V DC Typical 5V DC to 16V DC
- Current consumption: 3.5mA Typical 5mA (Max)
- Weight: 60g 1.5m cable
- Dimensions: 51.7 x 16 x 12 mm
More information
| Specifications | |
|---|---|
| Installation | 4-wire |
| Technology | Wired |
| Serie | LightSys + |
| Type | Flood |
| Alarm temperature (ºC) | 0 |
| Action indicator output | No |
| Relay contacts | No |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 51.7 |
| Dimensions - Width (mm) | 16 |
| Dimensions - Deep (mm) | 12 |
| Weight (kg.) | 60 |
