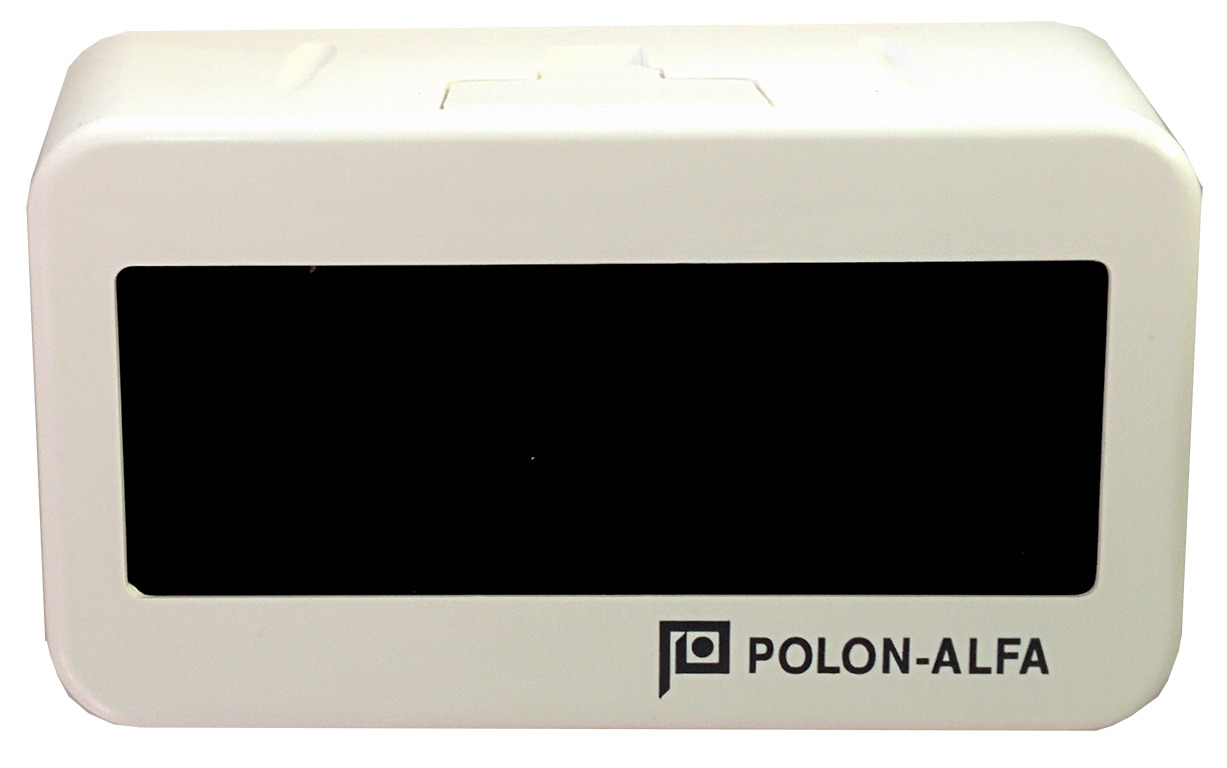

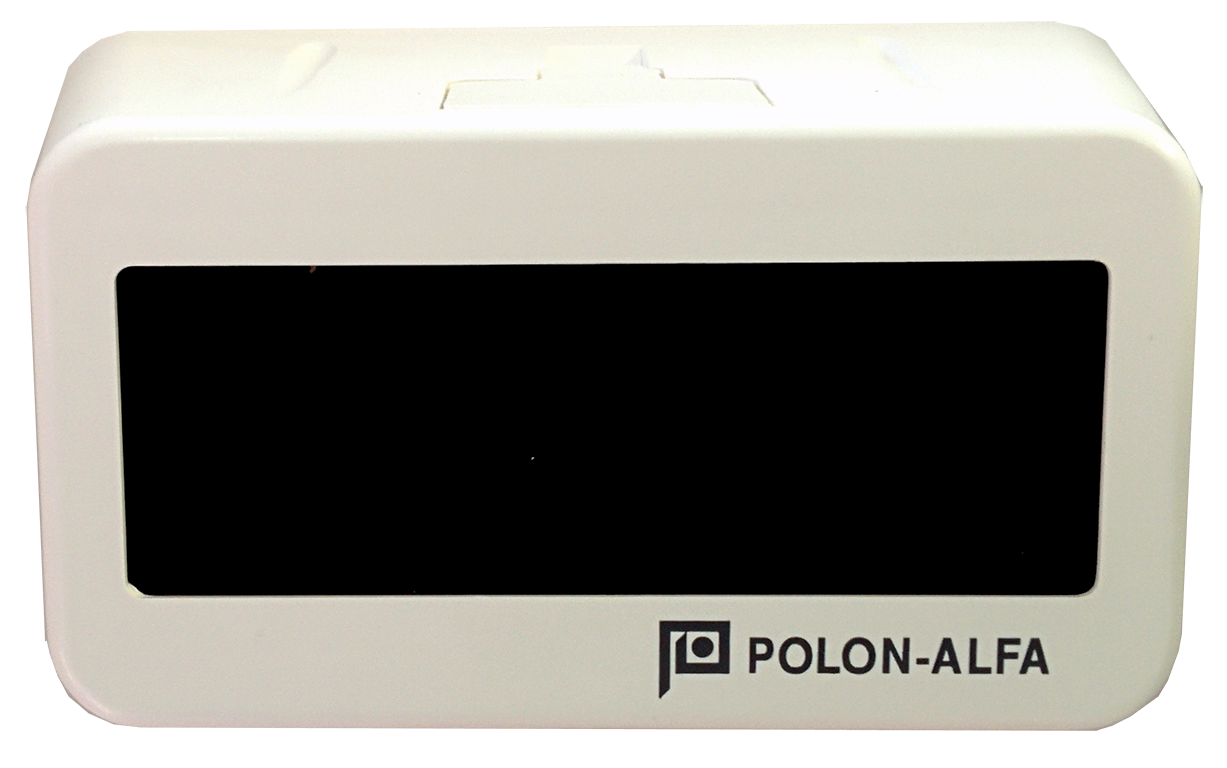

100 m Linear Smoke Detector
Reference : DETLIN100M
Product code: 21151110
EAN code : 8429898026954
- Certified in accordance with EN 54-12: CPD 1438/CPD/0219.
- Integrated transmitter and receiver, operating with a prismatic reflector installed on the opposite side (includes 1 or 4 units depending on version).
- Includes a laser pointer that allows the beam to be easily and accurately visualized and adjusted, even through very narrow spaces.
- Range of up to 50 or 100 m (depending on version) and 7.5 m lateral protection (in accordance with EN 54-14).
- Supply voltage: 9.5 to 28 VDC.
- Alarm resistor required.
- Weight: 350 g
- Dimensions: 150 (W) x 80 (H) x 80 (D) mm.
More information
| Specifications | |
|---|---|
| Installation | 4-wire |
| Technology | Conventional |
| Serie | CCG,FAP500 |
| Type | Linear Barrier |
| To | Optical detector |
| Action indicator output | Yes |
| Relay contacts | Yes |
| Incorporates base | Yes |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 80 |
| Dimensions - Width (mm) | 150 |
| Dimensions - Deep (mm) | 80 |
| Weight (kg.) | 0.35 |
