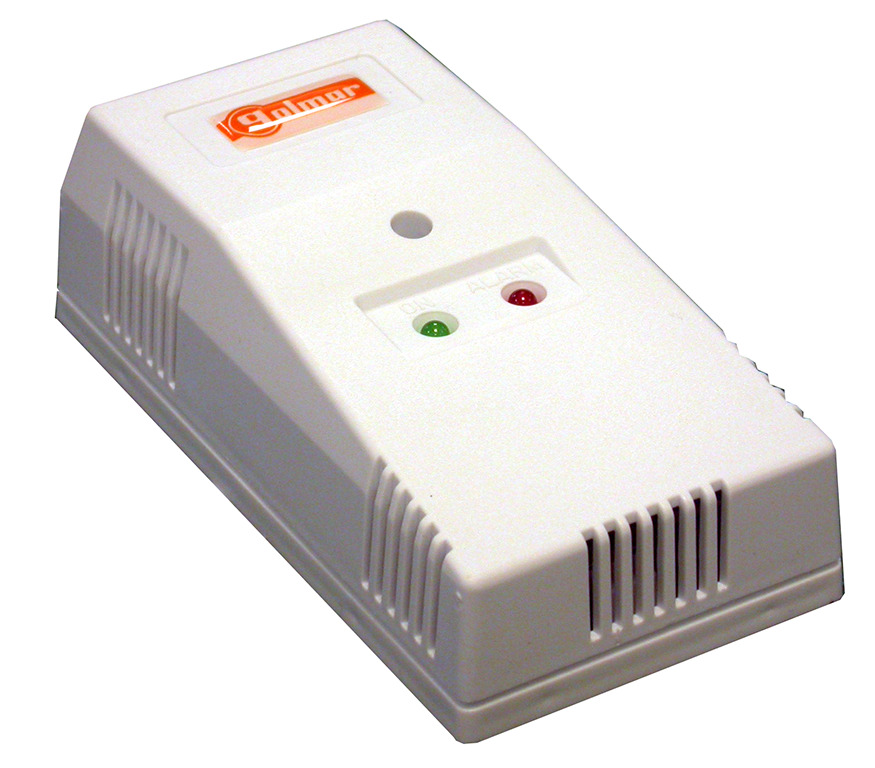

Gas Detection Detector
Reference : DG12
Product code: 21034012
EAN code : 8429898026527
- Standalone Domestic Gas Detector
- Compliant with EN 50194 standard
- White ABS plastic housing
- Installation height: 20 cm from the floor for heavy gases, 20 cm from the ceiling for light gases
- Coverage area: 25 m²
- Alarm output via dry relay contact and buzzer
- Auxiliary 9VDC output (max consumption: 100 mA)
- LEDs: red (alarm), green (standby)
- Power supply: 12 VDC
- Dimensions: 70 mm (W) x 140 mm (H) x 50 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 2-wire |
| Technology | Wired |
| Type | Gas |
| Action indicator output | Yes |
| Relay contacts | Yes |
| Type Function | Standalone |
| Use | Indoor |
| Dimensions - High (mm) | 140 |
| Dimensions - Width (mm) | 70 |
| Dimensions - Deep (mm) | 50 |
