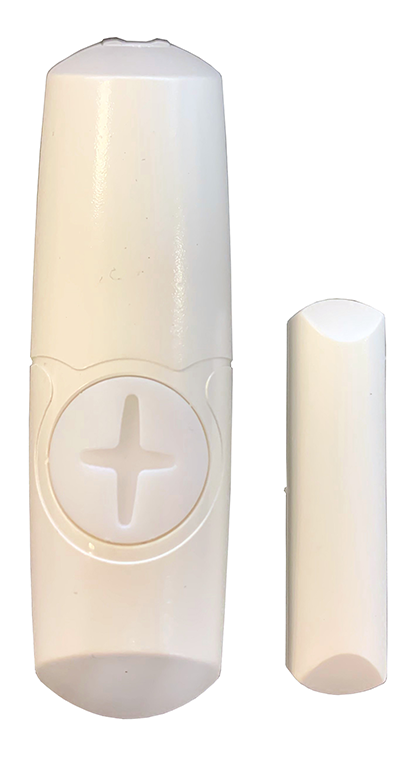

Shock and vibration detector
Reference : DG601
Product code: RK601SMG300
EAN code : 848584012176
- Wired vibration detector with magnetic contact
- For doors, walls or ceilings
- Distinguishes between natural vibrations and attempted intrusion
- Sensitivity adjustable by potentiometer
- Programmable alarm mode
- Tri-colour status LED indicator
- Two relay contacts and tamper protection
- Power supply: 9 to 16 V DC
- Consumption: 17 mA
- Dimensions: 28 (W) × 95 (H) × 25 (D) mm (detector)
- 12 (W) × 58 (H) × 10 (D) mm (magnet)
- Supplied on request
More information
| Specifications | |
|---|---|
| Installation | 6-wires |
| Technology | Wired |
| Serie | LightSys + |
| Type | Vibration |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 95 |
| Dimensions - Width (mm) | 28 |
| Dimensions - Deep (mm) | 25 |
