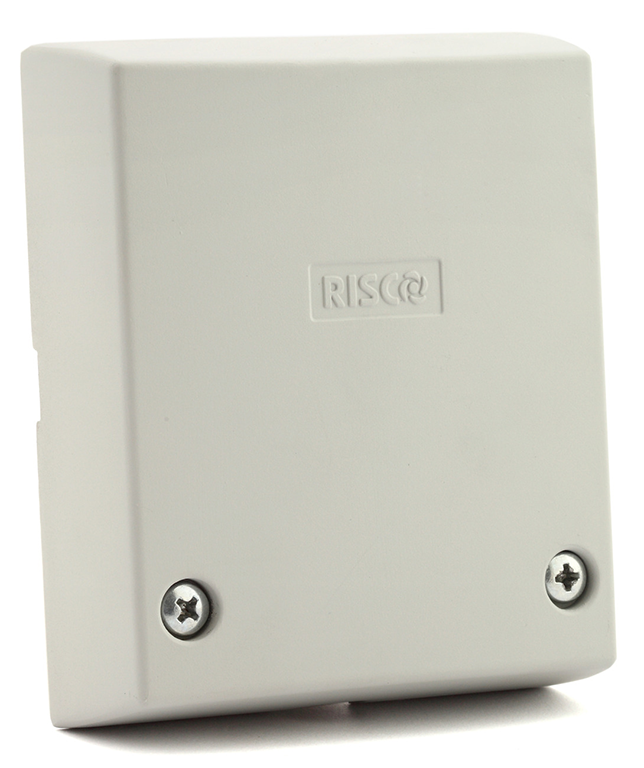

Seismic Detector for Vibrations and Temperature for LightSYS+ Control Panel
Reference : DS2
Product code: RK66S000000
EAN code : 848584001200
- Wired Seismic Detector
- For armored cameras, safes, walls, etc.
- Sensitive to vibration and temperature changes
- Detection radius up to 5 meters
- Anti-tamper protection (wall and casing tamper)
- 4-wire BUS connection
- Supply voltage: 9 to 16 V DC.
- Current consumption: 20 mA at 12 V DC
- Dimensions: 80 (W) x 102 (H) x 28 (D) mm
- Available on request
More information
| Specifications | |
|---|---|
| Installation | 4-wire BUS |
| Technology | Wired |
| Serie | LightSys + |
| Type | Seismic |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 102 |
| Dimensions - Width (mm) | 80 |
| Dimensions - Deep (mm) | 28 |
