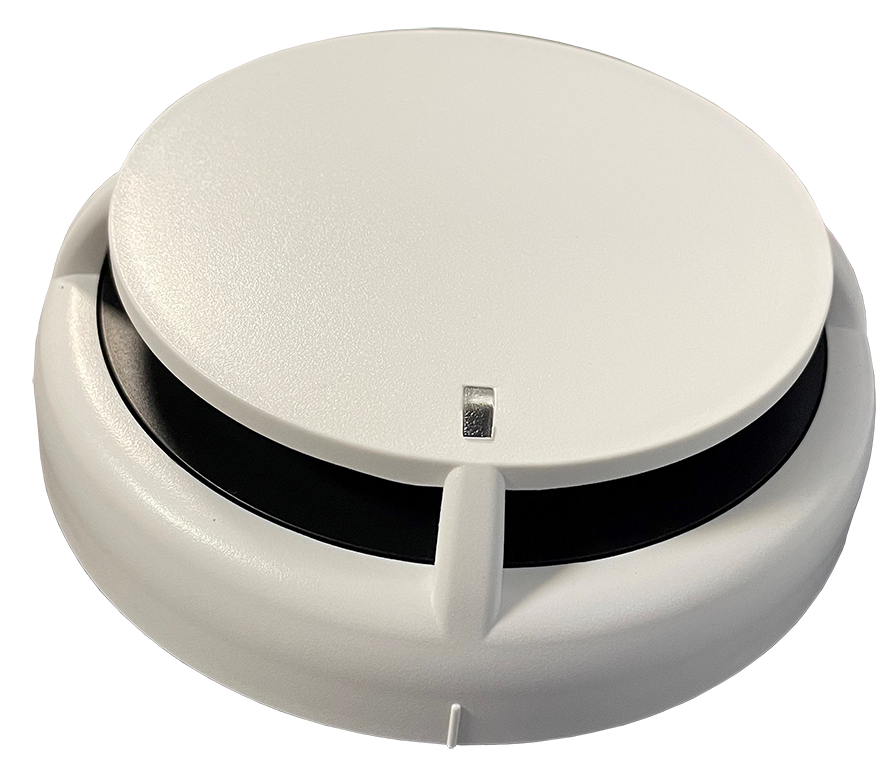

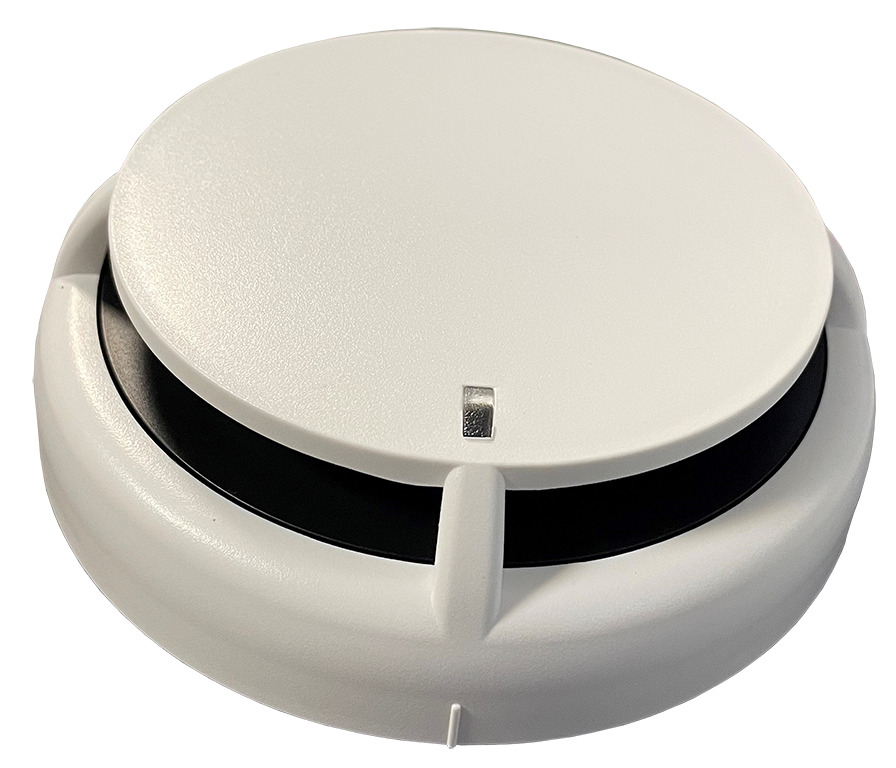

Series 50 conventional high-temperature heat detector
Reference : DT50PLUS
Product code: 21121404
EAN code : 8429898026442
- Thermal Detector Sensitive to Slow Temperature Rises
- Manufactured according to EN 54-5 Grade B standard
- Alarm temperature: 70ºC
- Coverage area: 20 m² (EN 54-14 standard)
- Supply voltage: 12 to 30 V DC, polarity-free
- Average standby current: 30 µA at 18 V DC
- Average alarm current: 35 mA at 18 V DC
- Alarm indication via red LED
- Output for repeater action
- Supplied without base
- Certified by AENOR
- Weight: 74 g
- Dimensions: 110 (Ø) x 32 (H) mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Convencional,Cableado |
| Serie | CCG,Serie 50 |
| Type | Térmico |
| To | Det. Térmico |
| Alarm temperature (ºC) | 70 |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | No |
| Integrated camera | No |
| Installation height | Interior |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Certifications | Interior |
| Dimensions - High (mm) | 32 |
| Dimensions - Diameter (Ø) | 110 |
