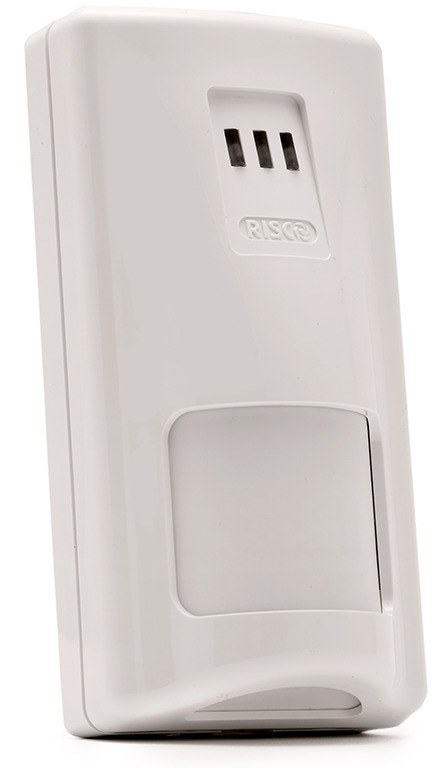

Grade 3 Dual Technology Detector
Reference : DTW25
Product code: RK825DTG300
EAN code : 848584006533
- 25m Indoor Dual Technology Detector with Anti-Masking
- Detection range: 25 meters
- Anti-masking method.
- Detection technologies: dual infrared and microwave
- Selectable triple EOL resistor via jumper
- Opto-relay to prevent attacks with strong magnets
- Digital detector with true temperature compensation
- Indoor installation
- Recommended installation height: 2.10 to 2.70 meters
- Optional mounting brackets: R-PAR (wall), R-TEC (ceiling)
- Power supply: 9 to 16 VDC
- Maximum current consumption: 36.5 mA
- Dimensions: 65 mm (W) x 128 mm (H) x 47 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 4-wire |
| Technology | Wired |
| Serie | LightSys + |
| Type | IR,MW |
| Action indicator output | Yes |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Grade of security | Grade 3 |
| Dimensions - High (mm) | 128 |
| Dimensions - Width (mm) | 65 |
| Dimensions - Deep (mm) | 47 |
