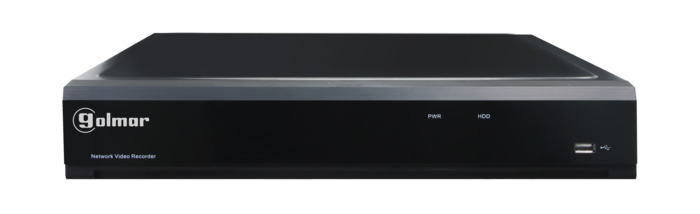

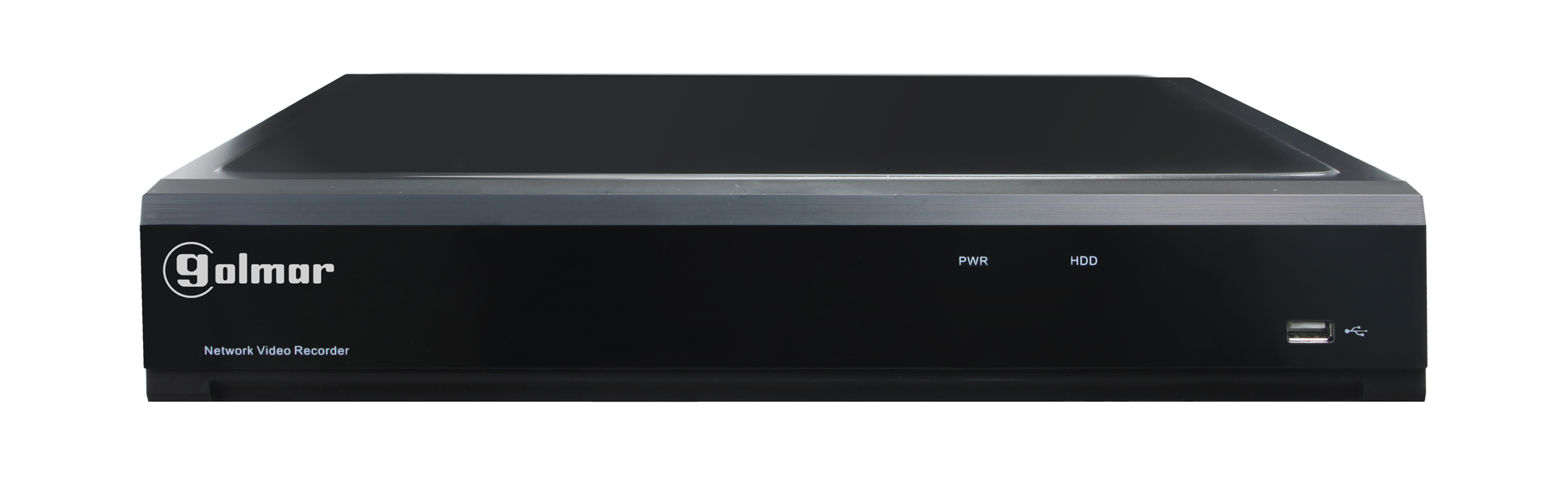

Hybrid recorder DVR-108P5 5MpxLite 8+4 channels, 2TB
Reference : DVR-108P5
Product code: 31600966
EAN code : 8429898024035
- 5-in-1 digital recorder for 8 cameras
- Supports analogue inputs AHD, CVI, TVI, CVBS
- Supported analogue resolution CVBS, 1Mpx, 2Mpx, 5Mpx
- Analogue recording resolution 5Mpx Lite
- IP resolution 5MPx
- Video compression H.265
- Maximum 12 channels (8 + 4)
- HDMI / VGA / BNC output
- 8E/1S alarm
- 8E/1S RCA audio
- Telemetry via UTC coaxial and RS-485
- With intelligent video analysis
- 2Tb disk included
- 1 free SATA port for expansions
- GolmarView App
- VMS Pro software
- Dimensions 378 x 50 x 340 mm (W x H x D)
- NDAA compliant
More information
| Specifications | |
|---|---|
| Type | DVR |
| Video compression | H.264,H.265 |
| Audio compression | 8 |
| Analog video channels | 8 |
| IP video channels | 8 |
| Hybrid architecture | Yes |
| Video outputs | 1 |
| Compatible IP cameras | ONVIF,Golmar |
| Refreshment recordings | 0 |
| Maximum input bandwidth (Mbps) | 16 |
| Maximum output bandwidth (Mbps) | 64 |
| Recording method | Manual,Programada,Detección de movimiento,PIR,Alarmas |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC |
| Face recognition | No |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| UTC | Yes |
| RS-485 | Yes |
| I / O audio | 4/1 |
| I / O alarms | 8/1 |
| USB | DVR |
| Network interface | RJ45 |
| Hard disk included (TB) | 2 |
| Disc Bays. | 2 |
| Free disk bays | 1 |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Maximum working temperature (ºC) | 40 |
| Dimensions - High (mm) | 50 |
| Dimensions - Width (mm) | 378 |
| Dimensions - Deep (mm) | 340 |
| Relative humidity work (max.) | 90 |
| Relative humidity Work (min.) | 10 |
| Max Disk Memory (TB) | 8 |
| Included power supply | Yes |
| Input voltage (V) | 12Vcc |
| Weight (gr.) | 1520 |
