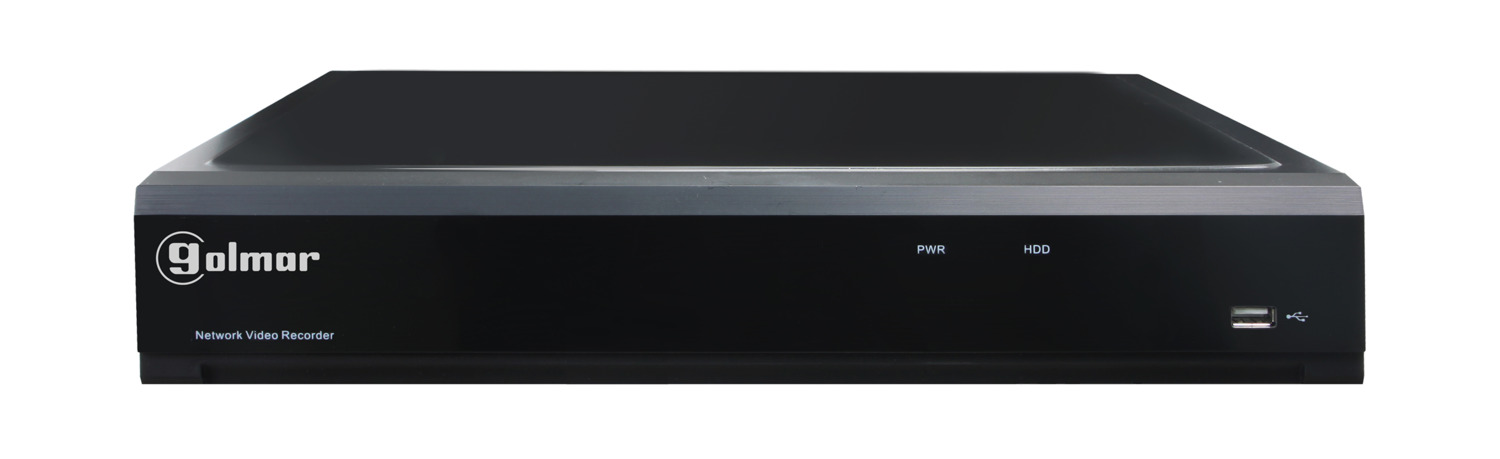

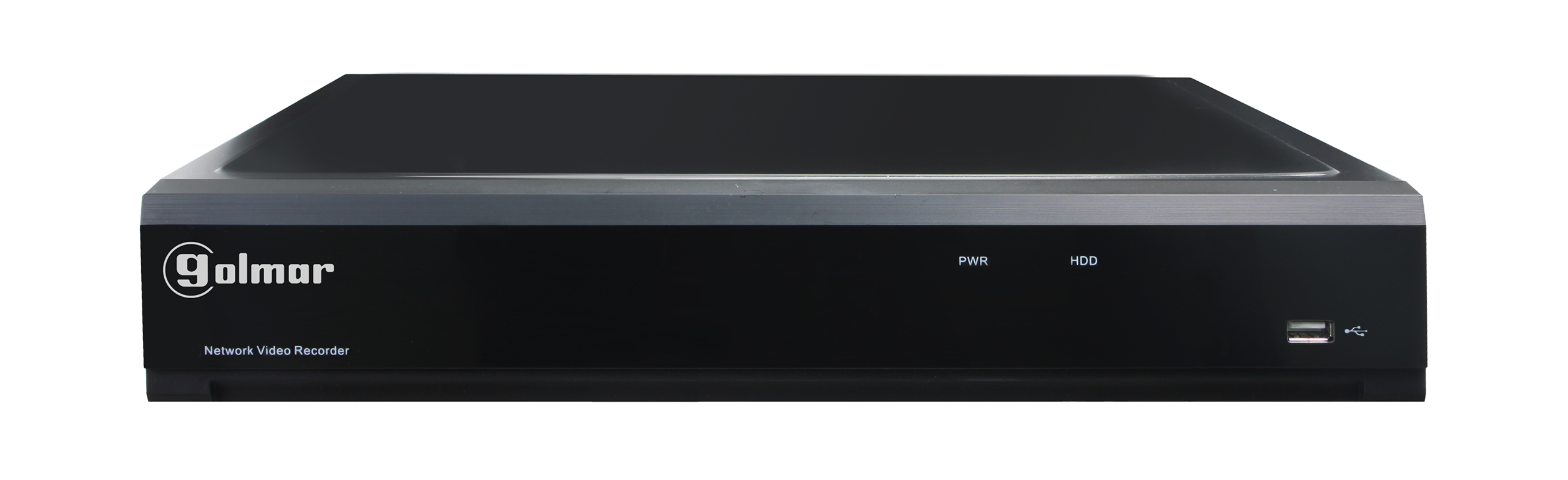

Hybrid recorder DVR-208R 8Mpx (4K) 8+4 channels, 2TB
Reference : DVR-208R
Product code: 31600976
EAN code : 8429898029955
- Supports analogue inputs AHD, CVI, TVI and CVBS
- Analogue resolutions supported: CVBS, 1Mpx, 2Mpx,
- 5Mpx and 4K (8Mpx)
- Analogue recording resolution: 4K
- IP resolution: 4K
- H.265 video compression
- Maximum 12 channels (8 + 4)
- HDMI / VGA / BNC outputs
- 8 alarm inputs and 1 alarm output
- 8 audio inputs and 1 audio output via RCA connectors
- Telemetry via UTC coaxial and RS-485
- Intelligent video analysis
- Supports 1 additional hard disk
- 2Tb hard disk included
- GolmarView App
- VMS Pro software
- Dimensions: 375(W) x 50(H) x 340(D) mm
- NDAA compliant
More information
| Specifications | |
|---|---|
| Type | DVR |
| Video compression | H.264,H.265 |
| Audio compression | 8 |
| Analog video channels | 8 |
| IP video channels | 8 |
| Max. Resolution (MPx) | 8 |
| Hybrid architecture | Yes |
| Video outputs | 1 |
| Compatible IP cameras | ONVIF,Golmar |
| Refreshment recordings | 0 |
| Maximum input bandwidth (Mbps) | 96 |
| Maximum output bandwidth (Mbps) | 96 |
| Recording method | Manual,Programada,Detección de movimiento,PIR,Alarmas,VA,Tampering |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC,CD,QD,HM |
| Face recognition | No |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| UTC | Yes |
| RS-485 | Yes |
| I / O audio | 8/1 |
| I / O alarms | 8/1 |
| USB | DVR |
| Network interface | RJ45 |
| Hard disk included (TB) | 2 |
| Disc Bays. | 2 |
| Free disk bays | 1 |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Maximum working temperature (ºC) | 40 |
| Minimum working temperature (ºC) | 0 |
| Max. consumption (W) | 15 |
| Dimensions - High (mm) | 53 |
| Dimensions - Width (mm) | 380 |
| Dimensions - Deep (mm) | 340 |
| Relative humidity work (max.) | 90% |
| Max Disk Memory (TB) | 8 |
| Included power supply | Yes |
| Input voltage (V) | 12Vcc |
