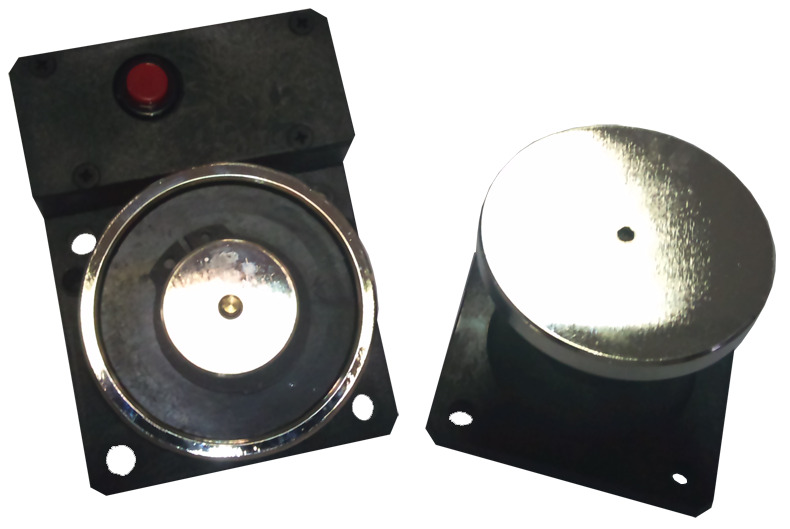

100 kg Electromagnetic Lock with Release
Reference : E/084
Product code: UD1043/084
EAN code : 8021156019823
- Includes release push button.
- Supply voltage: 24 VDC.
- Maximum consumption: 100 mA.
- Equivalent to 980 Newtons.
- Dimensions: 70 (W) x 95 (H) x 40 (D) mm (body) 65 (W) x 65 (H) x 30 (D) mm (armature)
More information
| Specifications | |
|---|---|
| Input voltage (V) | 24Vcc |
| Unlocking | Yes |
| Maximum retention force (N) | 980.66 |
| Includes Shield | Yes |
| Shield type | Short |
| Max. consumption (W) | 100 |
| Retainer Dimensions - Height (mm) | 95 |
| Retainer Dimensions - Width (mm) | 70 |
| Retainer Dimensions - Depth (mm) | 40 |
| Dimensions Anchorage - High (mm) | 65 |
| Dimensions Anchorage - Width (mm) | 65 |
| Dimensions Anchorage - Deep (mm) | 30 |
