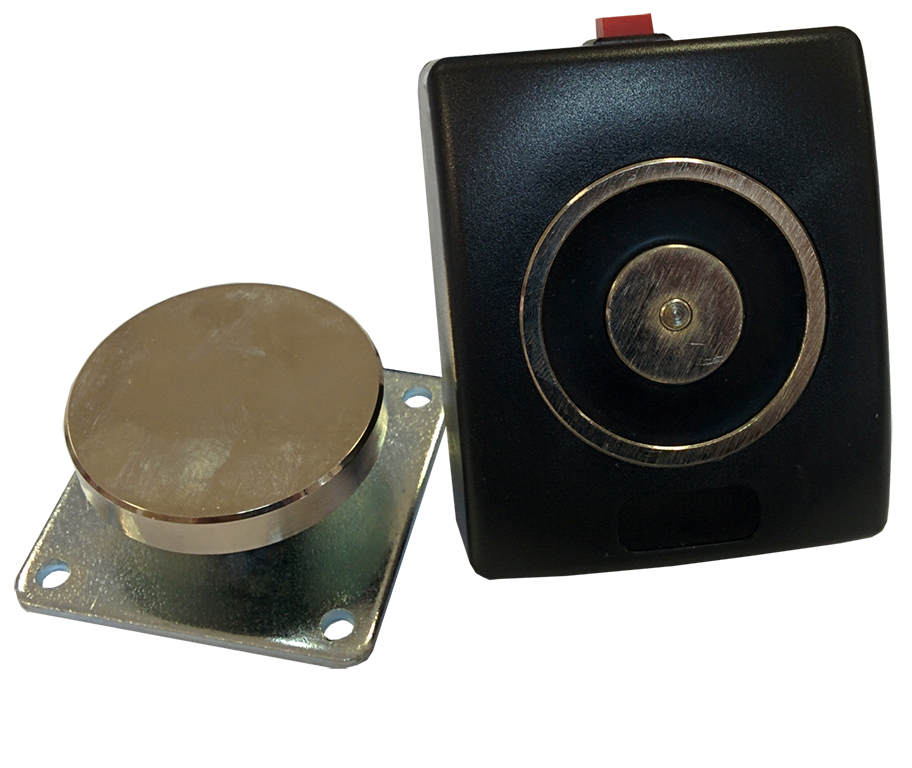

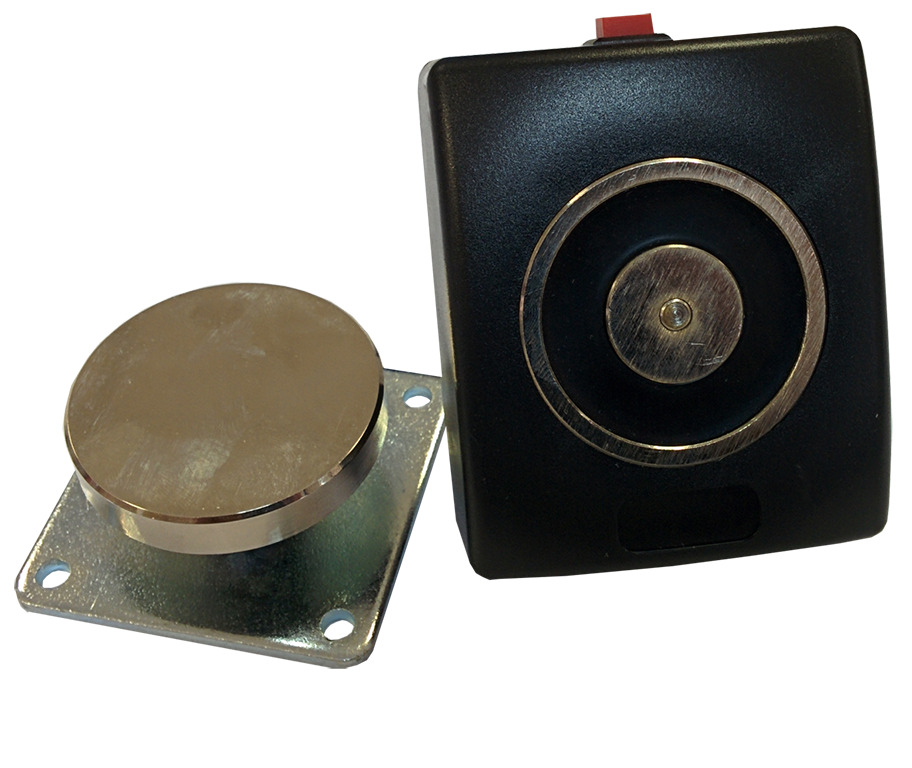

55 kg electromagnetic lock with release button
Reference : E/403OP
Product code: 21161408
EAN code : 8054752881396
- Includes release push button
- Supply voltage: 24 Vdc
- Maximum consumption: 70 mA
- Equivalent to 539 newtons
- Dimensions: 75 (W) x 90 (H) x 35 (D) mm (body) - 65 (W) x 65 (H) x 53 (D) mm (anchor plate)
More information
| Specifications | |
|---|---|
| Input voltage (V) | 24Vcc |
| Unlocking | Yes |
| Modo de funcionamiento | Normal |
| Maximum retention force (N) | 550 |
| Reverse performance | No |
| Includes Shield | Yes |
| Shield type | Corto |
| Material | 1 |
| Rest consumption (W) | Interior |
| Max. consumption (W) | 1.68 |
| Relative humidity work (max.) | 0 |
| Relative humidity Work (min.) | 0 |
| Dimensions - High (mm) | 1 |
| Retainer Dimensions - Height (mm) | 90 |
| Dimensions - Width (mm) | 1 |
| Retainer Dimensions - Width (mm) | 75 |
| Dimensions - Deep (mm) | 1 |
| Retainer Dimensions - Depth (mm) | 35 |
| Dimensions Anchorage - High (mm) | 65 |
| Dimensions Anchorage - Width (mm) | 65 |
| Dimensions Anchorage - Deep (mm) | 53 |
