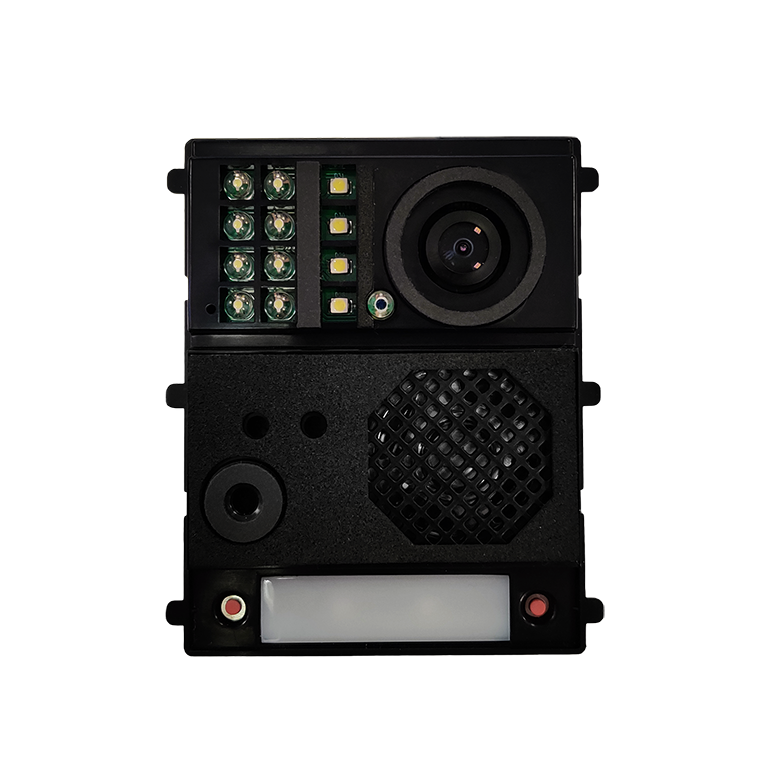

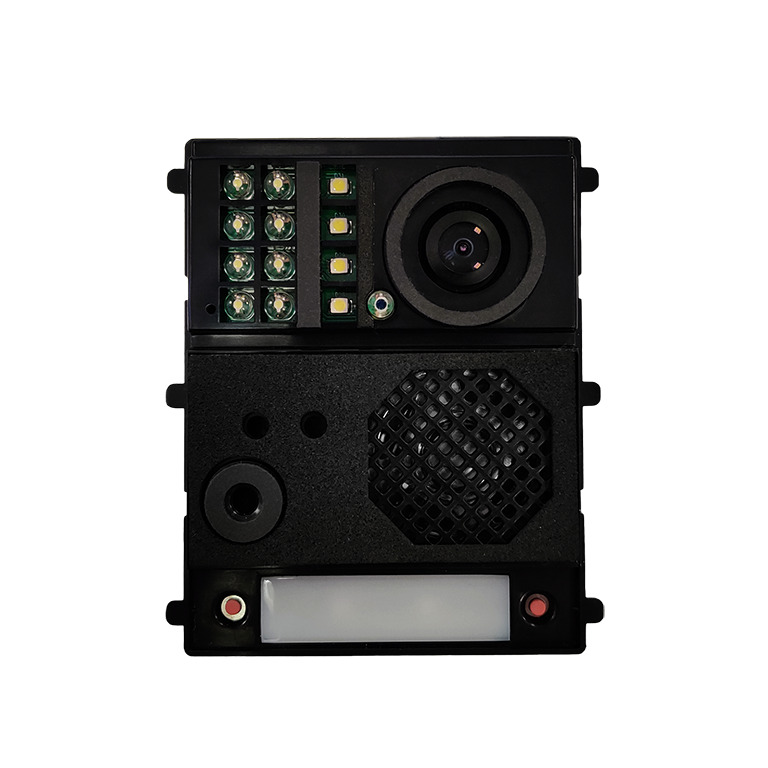

EL632/G+/48 IP DUAL POE sound module with camera
Reference : EL632/G+/48
Product code: 12325632A
EAN code : 8429898024615
- For Nexa push buttons door panels.
- Digital IP G+ installation with TCP/IP protocol.
- Wide-angle camera and LED lighting controlled by light sensor.
- Privacy on audio, video and door open progresses.
- Prompt messages (language selectable) and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
- Connection to push button modules using small flat cables provided with the modules.
- Opening of two different doors from the same panel.
- Removable terminal connector for easy wiring.
- Includes two push buttons.
- Compatible with PoE power supply standard ieee 802.3af.
More information
The necessary components for a system of these characteristics are:
- Use one EL632/G+/48 video module per panel.
- In compositions with more than 2 pushbuttons, add one EL610D 10P module for every 10 pushbuttons until the desired number of pushbuttons is obtained (max. 132 pushbuttons).
| Specifications | |
|---|---|
| Type of device | Pulsadores |
| Serie | NEXA |
| Mounting | Supericie,Empotrado |
| Audio of communication | Manos libres |
| Call type | Llamada individual,Grupo |
| Push button | Doble |
| Vocal messages | Yes |
| Available languages | Inglés,Español,Portugués |
| Speaker power (W) | 1 |
| Integrated camera | Yes |
| Lense | Pulsadores mecánicos |
| Pan & Tilt. | Pulsadores mecánicos |
| Image sensor | 105 |
| Sensibility (lux) | 7 |
| Horizontal field of view (º) | 130 |
| Vertical field of view (º) | 70 |
| Compatibility | ONVIF,Golmar,VoIP SIP,SIP |
| Remote Access / App | Web,App G2Call+ |
| Operation | Pulsadores mecánicos |
| Number of buttons | 2 |
| I / O audio | Micro,Altavoz |
| Inductive loop | No |
| Guidance LEDs | Yes |
| Minimum illumination (lux) | 0.1 |
| Backlumination management | Llamada a conserjerÃÂa,Creación de agenda,Transmisión RTSP |
| Images by sec. (FPS) | 25 |
| Video format | HDTVI |
| Format / Video Compression | H.264 |
| Format / Audio Compression | HDTVI |
| Main Stream (FPS) | 720P |
| Sub Stream (FPS) | VGA |
| UTC | Yes |
| Analog video channels | 1 |
| Log of calls | Yes |
| Management software | Yes |
| Programming | Ordenador,Desde el própio dispositivo |
| HW platform | Linux |
| Protocols | TCP/IP |
| Internal storage | Web,App G2Call+ |
| Volume settings. | Web,App G2Call+ |
| Input voltage (V) | 12Vcc,PoE,18Vcc |
| Requires additional feeder | No |
| Rest consumption (W) | 2.8 |
| Max. consumption (W) | 5.8 |
| Installation | UTP |
| Max. (M) | 100 |
| Technology | IP G+ |
| Functions | Llamada a conserjería,Creación de agenda,Transmisión RTSP |
| Additional functions | Llamada a conserjerÃa,Creación de agenda,Transmisión RTSP |
| I/O Alarms or Control | 100 |
| Number of door release relays | 2 |
| Access control | 5.8 |
| Video input | No |
| Microphone sensitivity (DB) | 105 |
| Certifications | 1 |
| Manufactured according to Norma. | 0 |
| Relative humidity work (max.) | 90 |
| Relative humidity Work (min.) | 10 |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -20 |
| Material | 720P |
| Dimensions - Width (mm) | 81 |
| Dimensions - High (mm) | 98 |
| Dimensions - Deep (mm) | 39 |
| Colour | 1 |
| Weight (gr.) | 200 |
Downloads
INSTALLATION MANUAL | EL632/G+/48 V05 | REV 0124 | English
INSTALLATION MANUAL | EL632/G/48 V04 | REV 0121 | English
QUICK GUIDE | Web Client EL632/G+/48 V04 | REV 0121 | English
USER MANUAL (2) | SCT/G+v1.27 | REV 0125 | English
INSTALLATION MANUAL | EL632/G/48 | REV 0221 | Portuguese
QUICK GUIDE | Cliente Web EL632/G+/48 V04 | REV 0121 | Espanol
Certificate DC12325632A20221014V1.pdf
