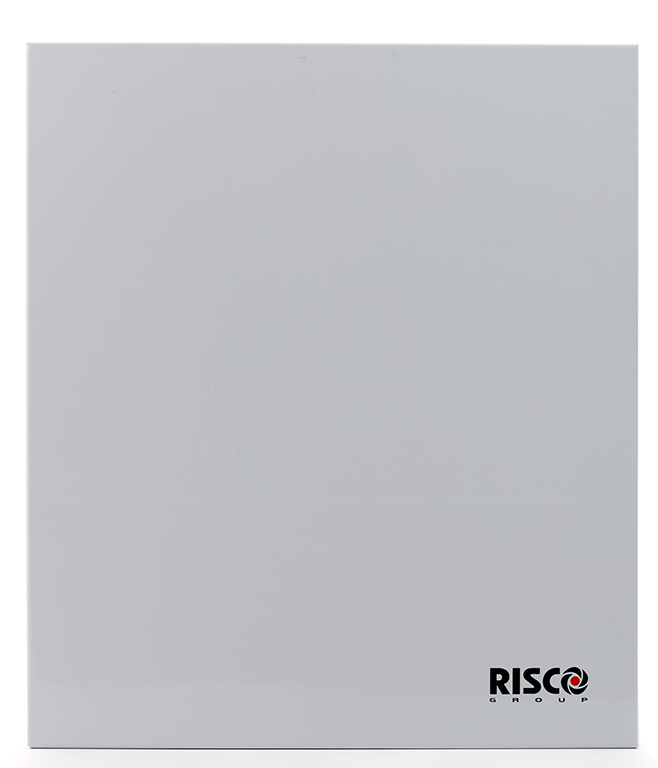

Grade 3 BUS power supply 12V / 3A for LightSYS panel

Reference : FA128/3A

Product code: RP128PSPSEU

EAN code : 875586008456

12 VDC / 3 A BUS power supply, Grade 3.
Space for battery and two expansion modules, dimensions 105 (W) x 66 (H) x 15 (D) mm.
Low battery and power loss supervision, etc.
Tamper protection and siren output (12 VDC / 1.7 A).
Two programmable potential-free relay outputs (3 A).
Maximum distance from the control panel: 300 m.

Spec sheet

Download picture

More information

Specifications
Input voltage (Vac)	230
Output voltage (Vac)	230
Output voltage (Vdc)	12
Output current (A)	3
Battery charger	Yes
Bus communication	Yes
Mermaid output.	2
Exit relay.	2
Certifications	1
Mounting	3
Grade of security	Grado3
Manufactured according to Norma.	90
Material	3
Dimensions - High (mm)	375
Dimensions - Width (mm)	330
Dimensions - Deep (mm)	90
Weight (gr.)	0.95

Downloads

Accessories

RP432MP LightSYS+ Control Panel, Grade 2 or 3, with 8 zones expandable up to 512

BAT-7A Rechargeable lead acid battery 12V/7Ah
