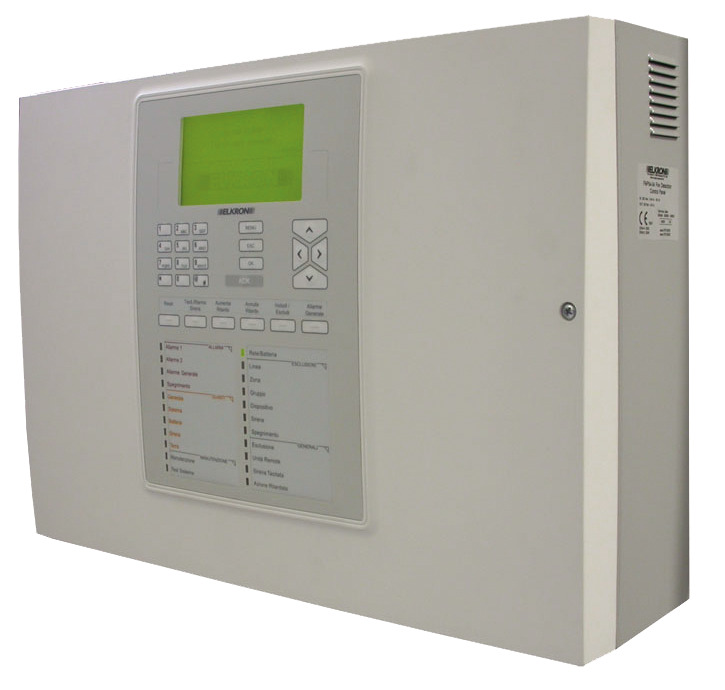

4-loop analogue control panel expandable to 8 loops
Reference : FAP548EVO
Product code: 80SC5A00121
EAN code : 8034034447397
- Certified according to EN54-2 and EN54-4 standards (0051-CPD-0240)
- Metal enclosure with ABS plastic front panel
- Addressing types: self-addressable, by loop, preconfigured, updatable
- Control of up to 128 devices per loop
- Locally programmable via keyboard (PS2) or via PC (USB port)
- Control of up to 16 repeater panels via optional RS232 / RS485 module
- Master/Slave connection with up to 32 control panels via optional RS232 / RS485 module
- Provides 480 fully programmable zones (single signal, single signal with time delay)
- Association of up to 50 IO500 actuator modules per zone, configurable as input or output
- 240 x 128 LCD display
- Event log with memory for 1000 events
- Maximum loop length: 2000,m (cable 2 x 1.5,mm²)
- Volt-free outputs: Alarm 1, Alarm 2, Fault, Programmable (bypass / mains failure)
- Field output: 27 VDC (maximum 1.5A)
- Supervised siren output (maximum 0.5A)
- Total current supplied by the unit: 1.5A
- Requires 2 batteries (not included) BAT-12A
- Dimensions: 490 (W) x 350 (H) x 140 (D) mm
More information
| Specifications | |
|---|---|
| Serie | FAP500 |
| Installation | 2 hilos |
| Technology | Analógico |
| Comunication Type | BUS |
| Number of zones | 480 |
| Number of zones (max.) | 480 |
| Number Loops | 4 |
| Number Loops (max.) | 8 |
| Devices Line (max.) | 128 |
| Battery charger | Yes |
| Exit relay. | 2 |
| Mermaid output. | 2 |
| Ventilation output | 0 |
| Alarm output | 0 |
| Signaling | Led,Pantalla,Acústicamente |
| Input voltage (Vac) | 230 |
| Mounting | Superfície |
| Use | Interior |
| Colour | 1 |
| Manufactured according to Norma. | 128 |
| Certifications | 1 |
| Dimensions - High (mm) | 350 |
| Dimensions - Width (mm) | 490 |
| Dimensions - Deep (mm) | 140 |
