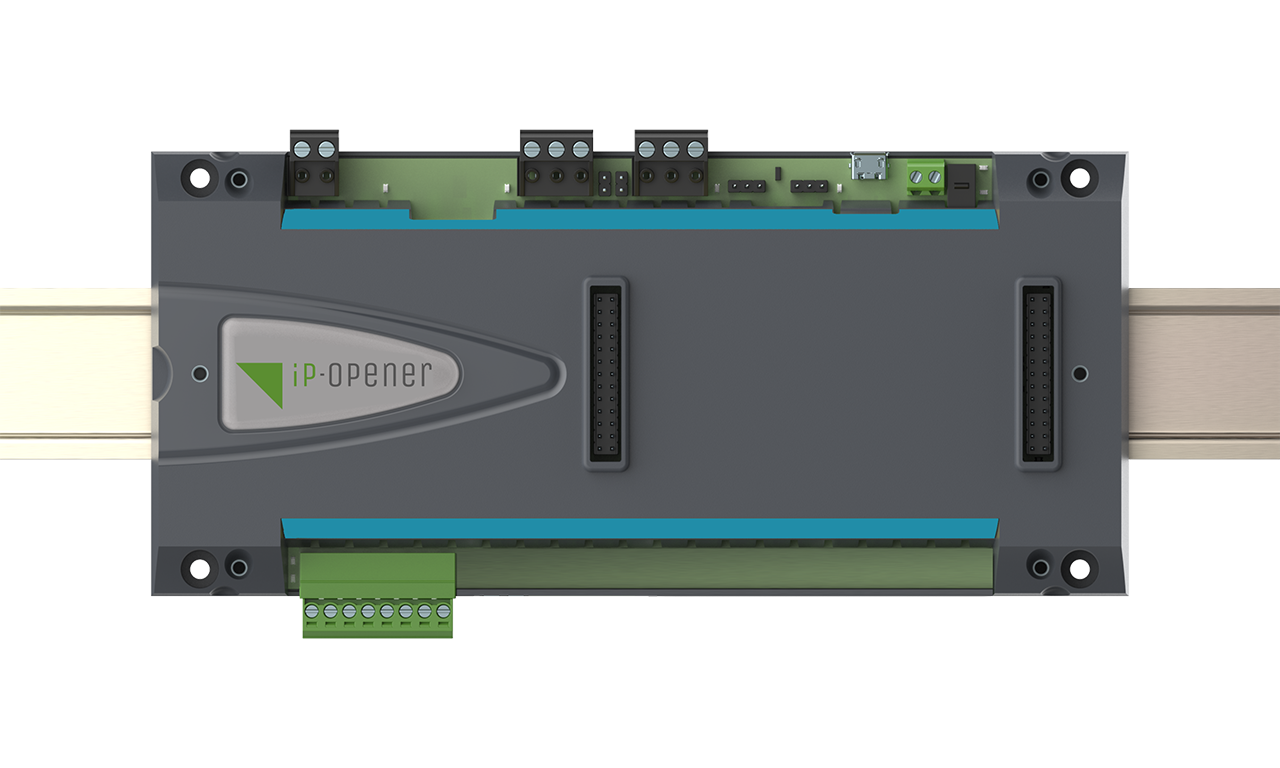

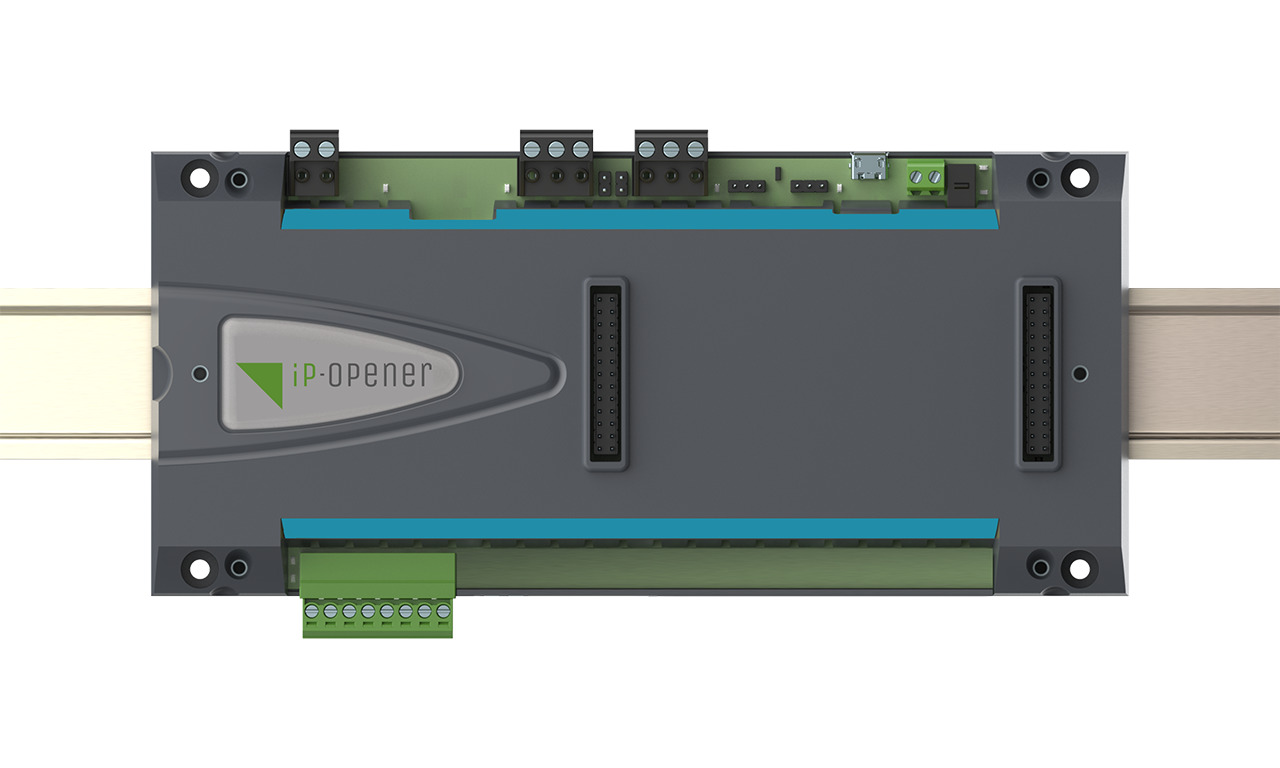

1 door access control panel GM-IPOP-1P
Reference : GM-IPOP-1P
Product code: 20780200
EAN code : 3760248203669
2SAFE one access controller
- 2SAFE proprietary protocol
- Remote programming and management via IP-OPENER MANAGER.
- Network connection by TCP/IP or RS485
- Verification by PIN, RFID, 868 Mhz RF or Bluetooth
- Capacity for up to 100,000 users and storage of up to 20,000 events
- 48VDC / 2A output relay
- Input for remote activation pushbutton with optocoupler protection
- Installation in metal cabinet (not included)
- 12Vdc/1.5A power supply (included in metal cabinet)
Dimensions: 198(W) x 90(H) x 34(D) mm
More information
- It can be networked via TCP/IP protocol or RS485.
- Possibility of modular expansion of auxiliary accesses/inputs and outputs by means of extender card modules.
| Specifications | |
|---|---|
| Technology | 2SAFE |
| No. of doors | 1 |
| Connection | Ethernet,RS485 |
| Reading/management type | PIN,Proximidad,Bluetooth |
| Use | Interior |
| RFID Frequency (MHz) | 13.56 |
| Max. records | 20000 |
| Max. Users | 100000 |
| Max. Network controllers | 64 |
| Max. Readers by Red. | 384 |
| Mounting | Carril DIN |
| Requires a license | No |
| Format Reports | XLS |
| Report generation | Yes |
| Management | Empresas,Calendarios,Horarios |
| Input voltage | 12Vcc |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -10 |
| Relative humidity work (max.) | 85 |
| Dimensions - High (mm) | 90 |
| Dimensions - Width (mm) | 198 |
| Dimensions - Deep (mm) | 34 |
| Weight (gr.) | 595 |
Downloads
INSTALLATION MANUAL | CONFIGURATION | REV 0126 | English
INSTALLATION MANUAL (2) | CONNECTION | REV 0226 | English
USER MANUAL | END USER MANAGEMENT | REV 0126 | English
USER MANUAL (2) | APPLICATION NOTE IPOPENER | REV 0124 | English
SOFTWARE | GM·IPOP·IPSEARCH | REV 0121 |
Certificate CERTIFICADO_-_GMIPOP4PPOE_-_GMIPOP4P_-_GMIPOP1P_-_GMIPOPEXP2P.pdf
