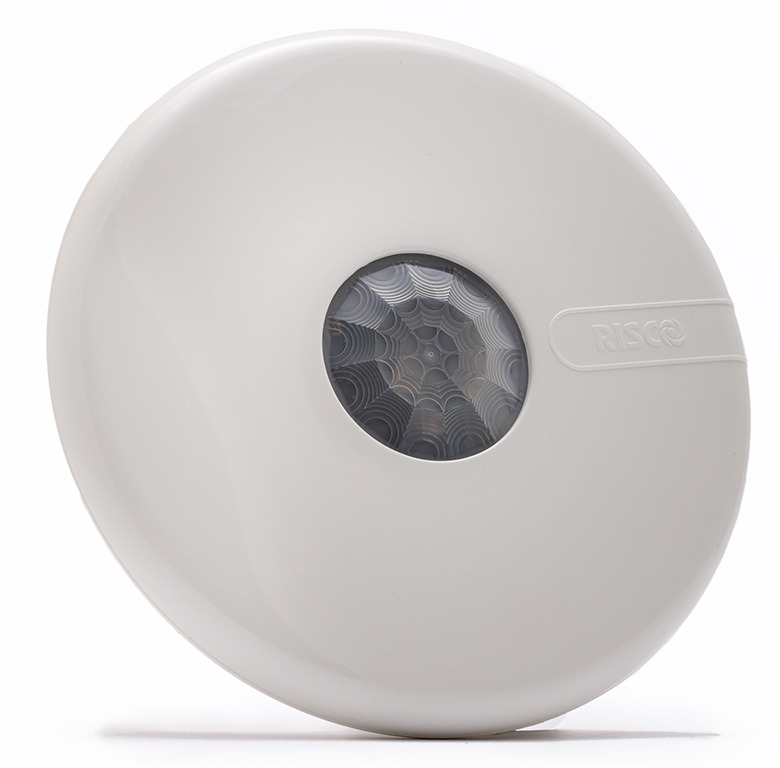

Grade 2 Dual Infrared Ceiling Detector
Reference : GOLUNAR
Product code: RK2000DPC00
EAN code : 879196006635
- Lunar Series Detectors with 12m Range
- Detection technologies: dual infrared
- Double resistor (dual infrared)
- True temperature compensation
- 360° coverage with Fresnel lens
- Indoor installation
- Detection range: 12 meters
- Recommended installation height: 2.80 to 4.00 meters
- Power supply: 9 to 16 VDC
- Maximum current consumption: 15 mA
- Dimensions: 135 mm (Ø) x 27 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 4-wire |
| Technology | Wired |
| Serie | LightSys + |
| Type | Double IR |
| Coverage | 360 |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Grade of security | Grade 2 |
| Dimensions - High (mm) | 27 |
| Dimensions - Diameter (Ø) | 135 |
