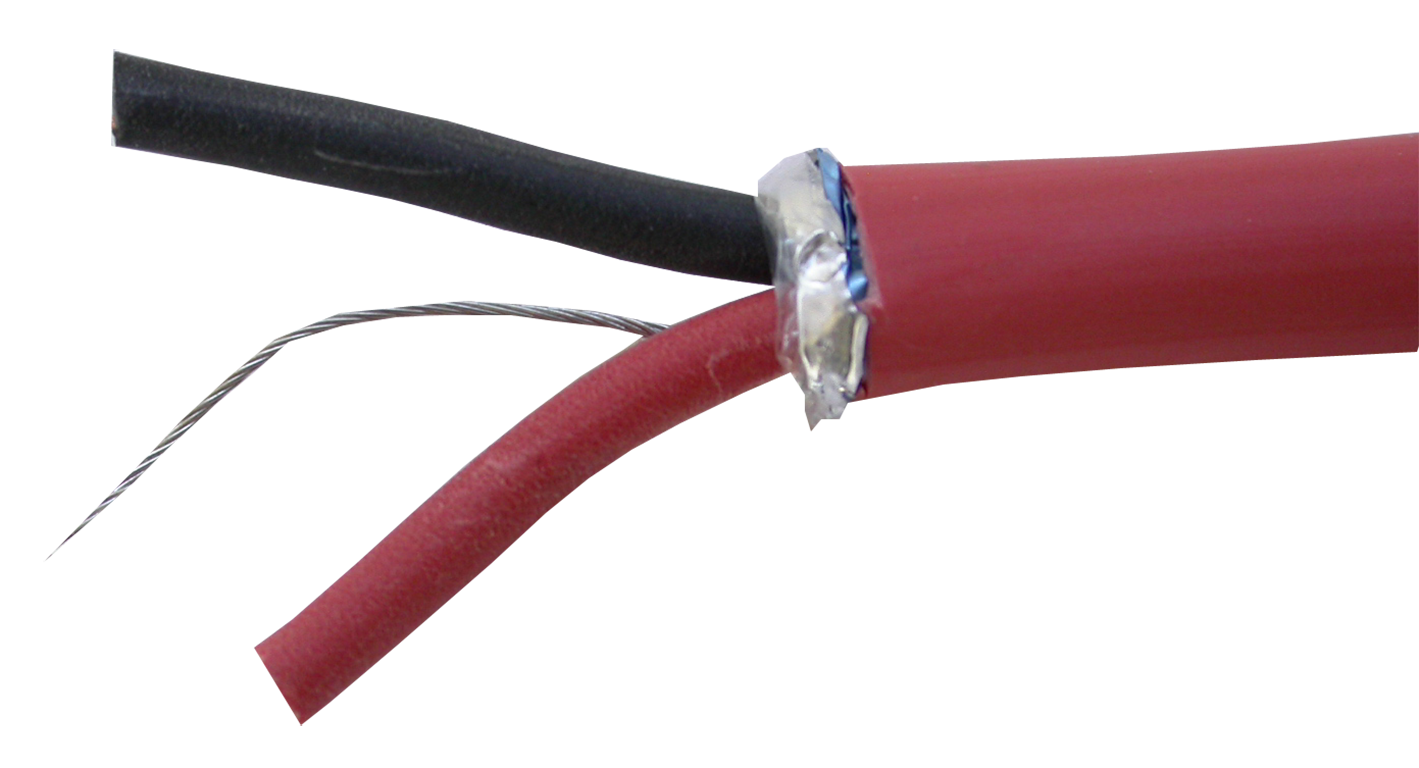

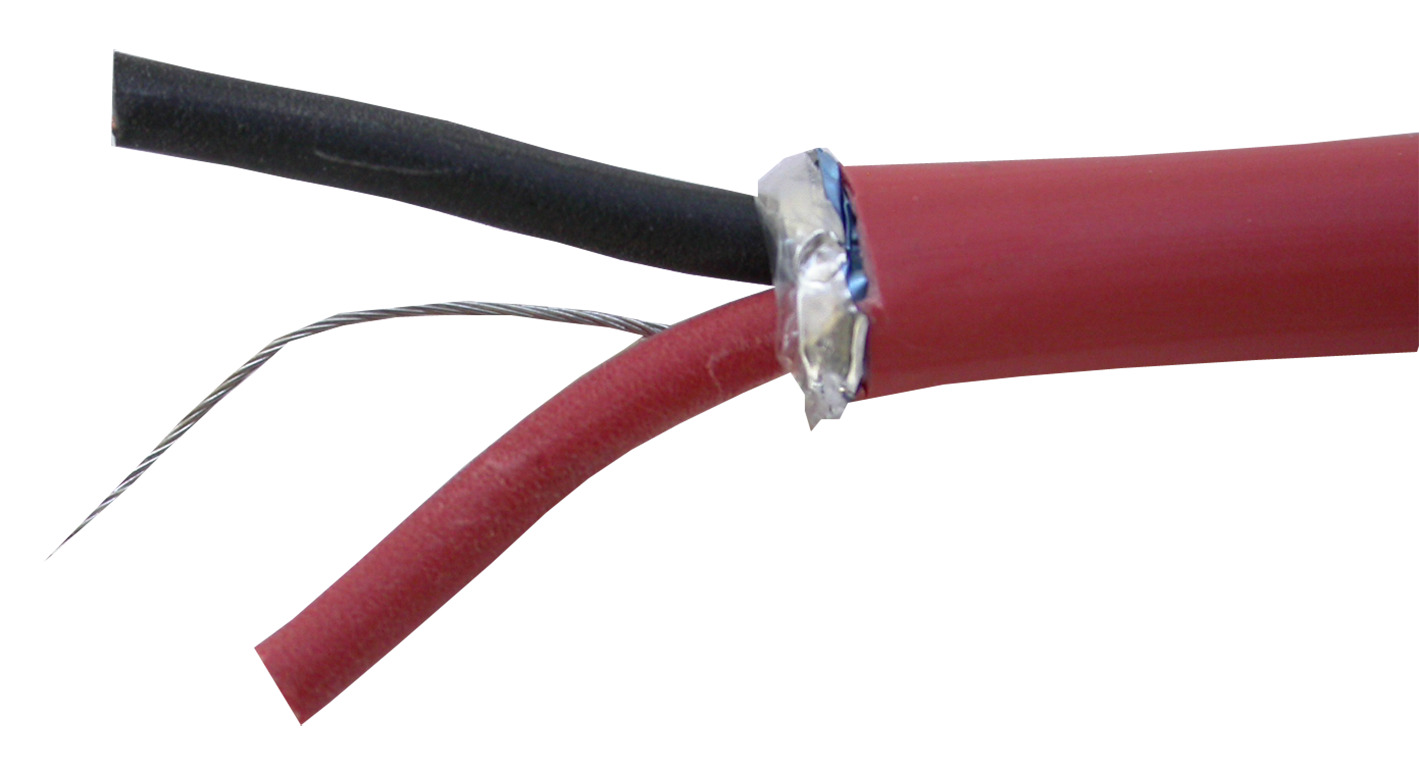

Halogen-free shielded cable
Reference : M-2CA/FH
Product code: 20101120
EAN code : 8429898035284
- 2 x 1.5 mm² shielded and twisted cable
- Halogen-free outer sheath (AS)
- Conductor made of Class 5 flexible copper according to UNE EN 60228
- LSHO polyolefin insulation (low smoke emission and halogen-free)
- Mylor aluminium tape shield
- LSHO polyolefin outer sheath (low smoke emission and halogen-free)
- Red outer sheath colour
- AENOR certified
- Sales unit: 100 m
More information
| Specifications | |
|---|---|
| Cable type | 2 hilos |
| Conductor material | 1 |
| no. wires | 2 |
| Conductors section (mm2) | 1.5 |
| Cover | Yes |
| Diameter of casing | 11 |
| Free of halogens | Yes |
| Flame propagator | No |
| Low smoke emission | Yes |
| Resistivity (Ohm) | 13 |
| Mesh | Yes |
| Twist (laps per meter) | 25 |
| Manufactured according to Norma. | 11 |
| Minimum sale unit | 100 |
