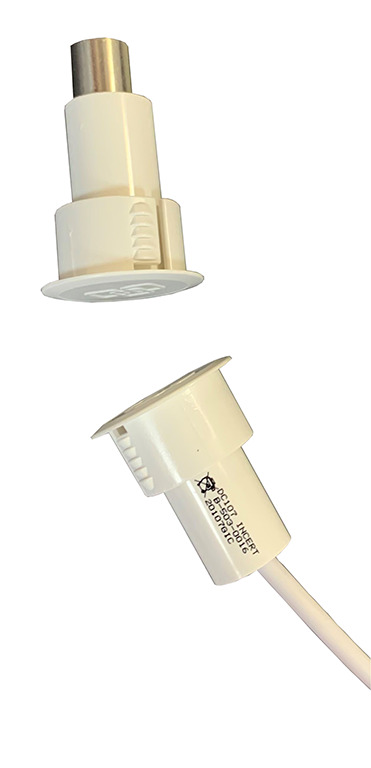

Flush-mount magnetic contact
Reference : MCE-G2
Product code: 21043010
EAN code : 8429898027166
- Grade 2 Magnetic Contact for Indoor Use
- Flush-mounted installation (metal doors)
- Special spacing to prevent magnetic attenuation
- NC contacts for alarm and tamper protection
- Maximum operating gap: 13,mm
- Includes 2 meters of 4-wire cable
- Dimensions: 18(Ø) x 29(D) mm (contact) 18(Ø) x 40(D) mm (magnet)
More information
| Specifications | |
|---|---|
| Mounting | Empotrado |
| Type of contact | Cableado |
| Technology | Cableado |
| Connectivity | 4-Hilos |
| Colour | 13 |
| Dimensions - Magnet diameter (Ø) | 18 |
| Dimensions - Contact diameter (Ø) | 18 |
| Magnet Dimensions - Depth (mm) | 40 |
| Contact Dimensions - Deep (mm) | 29 |
| Operating opening max. (mm) | 13 |
| Grade of security | Grado2 |
| Use | Interior |
