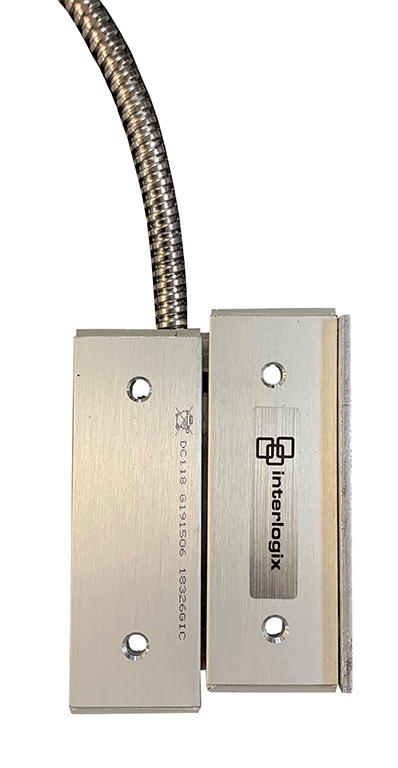

Magnetic contact for installation on metal doors
Reference : MMSG2/M
Product code: 21043008
EAN code : 8429898027142
- High-Power Magnetic Contact Grade 2 for Exterior Use
- Surface installation (door)
- Suitable for all types of metal doors
- NC contacts for alarm and anti-tamper protection
- Maximum operational gap: 75 mm
- Includes 2 meters of 4-wire cable
- Dimensions: 76 mm (W) x 12 mm (H) x 25 mm (D)
More information
| Specifications | |
|---|---|
| Mounting | Surface |
| Technology | Wired |
| Connectivity | 4-wires |
| Magnet dimensions (Ø) | 76 |
| Magnet Dimensions - High (mm) | 12 |
| Magnet Dimensions - Depth (mm) | 25 |
| Contact Dimensions - Width (mm) | 76 |
| Contact Dimensions - High (mm) | 12 |
| Contact Dimensions - Deep (mm) | 25 |
| Operating opening max. (mm) | 75 |
| Grade of security | Degree2 |
| Use | Outdoor |
