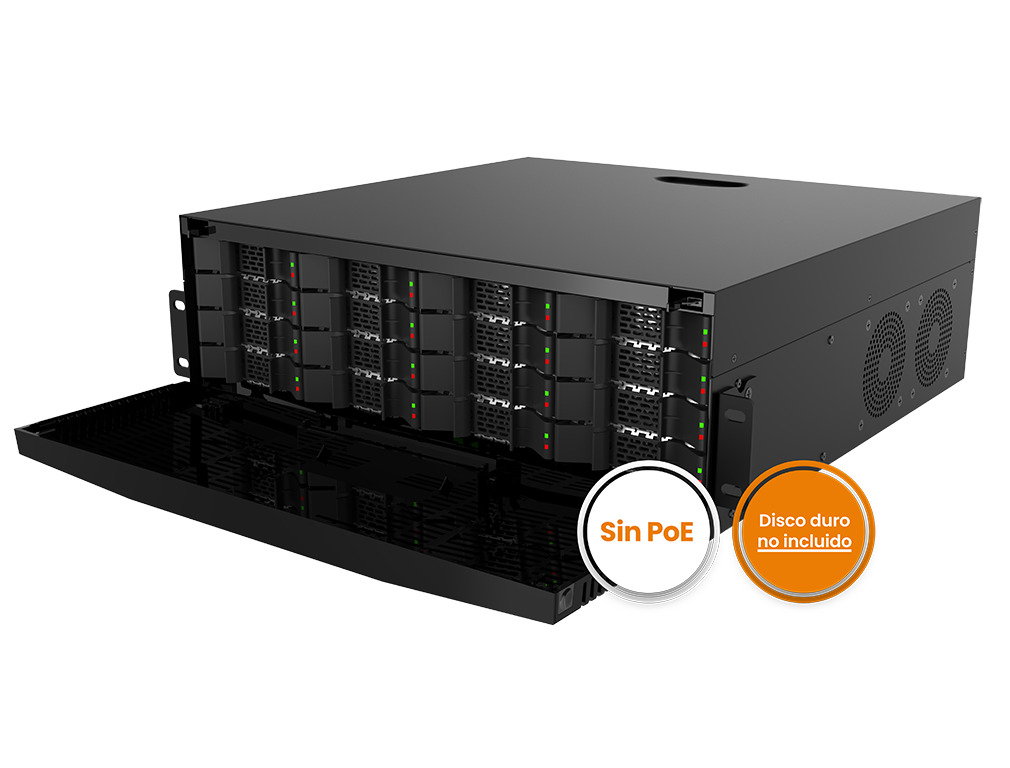

NVR-25616 256-channel IP recorder without PoE, without disk
Reference : NVR-25616
Product code: 31601060
EAN code : 8429898033907
- 256 IP video channels
- Maximum resolution: 12Mpx
- Input bandwidth: 1024 Mbps
- Output bandwidth: 800 Mbps
- 4 HDMI outputs (3 x 8K asynchronous, 1 Full-HD asynchronous)
- Advanced video analysis
- Fisheye camera support
- 16 hot swappable drives (not included) hard drive slots up to 18Tb
- RAID Types Supported: RAID0, RAID1, RAID5, RAID6, RAID10
- GolmarView App
- VMS Pro Software
- ATX250W power supply
- Dimensions: 440(W) x 149(H) x 460(D) mm
- NDAA compliant
More information
| Specifications | |
|---|---|
| Type | NVR |
| Video compression | H.264,H.265,H.265+ |
| Max. Resolution (MPx) | 12 |
| Video outputs | 1 |
| POE ports | 0 |
| Compatible IP cameras | ONVIF,Golmar |
| Refreshment recordings | 1 |
| Maximum input bandwidth (Mbps) | 1024 |
| Maximum output bandwidth (Mbps) | 800 |
| Recording method | Manual,Programada,Detección de movimiento,Alarmas,VA,Tampering |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC,CD,QD,HM |
| Face recognition | Yes |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| RS-485 | Yes |
| I / O audio | 1/1 |
| I / O alarms | 16/4 |
| USB | NVR |
| Network interface | RJ45 |
| Disc Bays. | 16 |
| Free disk bays | 16 |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -10 |
| Rest consumption (W) | 8 |
| Dimensions - High (mm) | 149 |
| Dimensions - Width (mm) | 440 |
| Dimensions - Deep (mm) | 460 |
| Relative humidity work (max.) | 90% |
| Max Disk Memory (TB) | 18 |
| Input voltage (V) | 230Vca |
