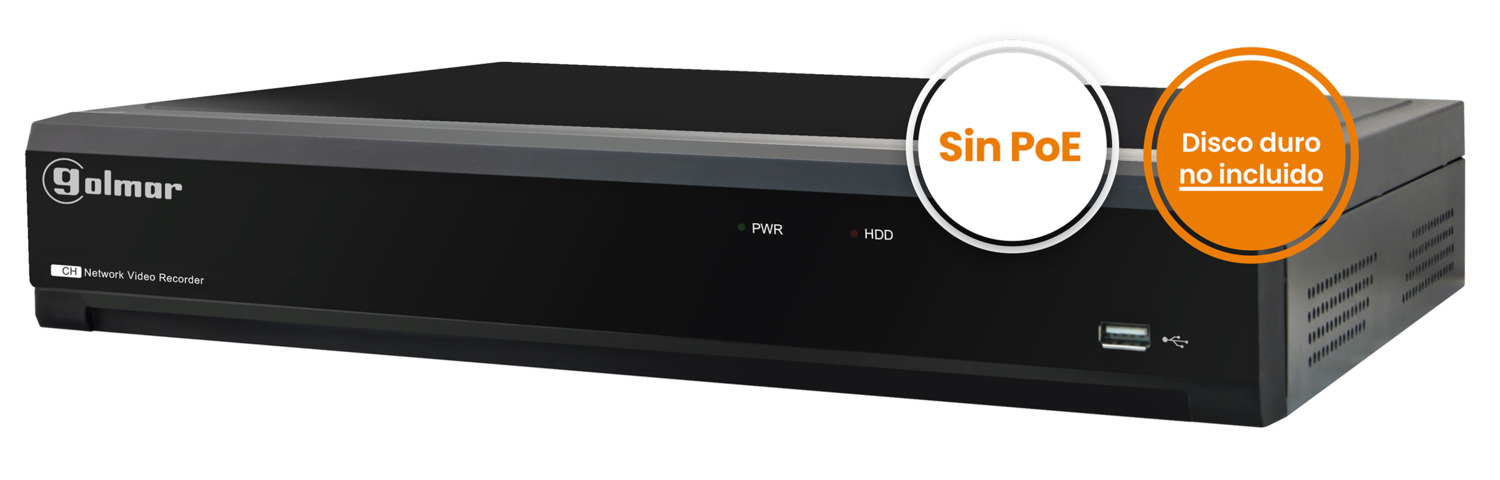

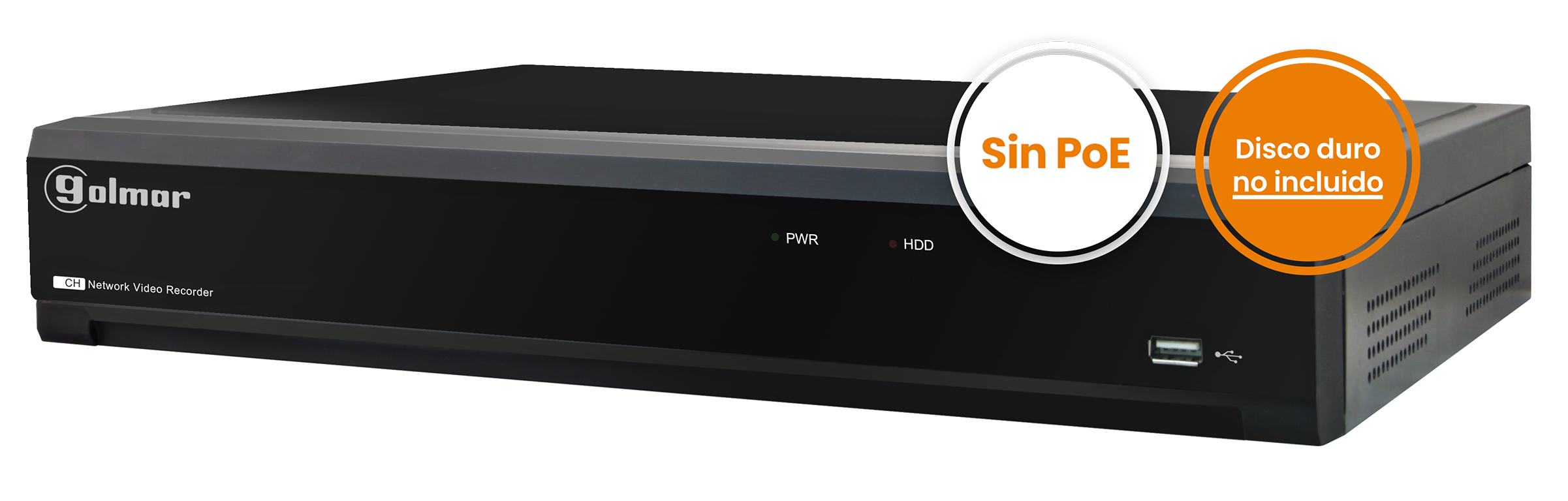

IP recorder NVR-6404 64 channels, disk not included
Reference : NVR-6404
Product code: 31601049
EAN code : 8429898012117
- 64 IP video channels
- Maximum resolution: 4K
- Input bandwidth: 640 Mbps
- Output bandwidth: 640 Mbps
- 4 HDMI Outputs (4K)
- 2 Ethernet cards
- Advanced video analysis
- Dewarp fisheye cameras
- Hard Disk not included
- 4 free SATA ports for expansions
- GolmarView App
- VMS Pro software
- Dimensions: 378(W) x 66(H) x 325(D) mm
- NDAA compliant
More information
| Specifications | |
|---|---|
| Type | NVR |
| Video compression | H.264,H.265,H.265+ |
| Max. Resolution (MPx) | 8 |
| Video outputs | 1 |
| Compatible IP cameras | ONVIF,Golmar |
| Refreshment recordings | 1 |
| Maximum input bandwidth (Mbps) | 640 |
| Maximum output bandwidth (Mbps) | 640 |
| Recording method | Manual,Programada,Detección de movimiento,Alarmas,VA |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC,CD,QD,HM |
| Face recognition | Yes |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| RS-485 | Yes |
| I / O alarms | 16/1 |
| USB | NVR |
| Network interface | RJ45 |
| Disc Bays. | 4 |
| Free disk bays | 4 |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -10 |
| Rest consumption (W) | 8 |
| Max. consumption (W) | 82 |
| Dimensions - High (mm) | 66 |
| Dimensions - Width (mm) | 378 |
| Dimensions - Deep (mm) | 325 |
| Max Disk Memory (TB) | 8 |
| Included power supply | Yes |
| Input voltage (V) | 12Vcc |
