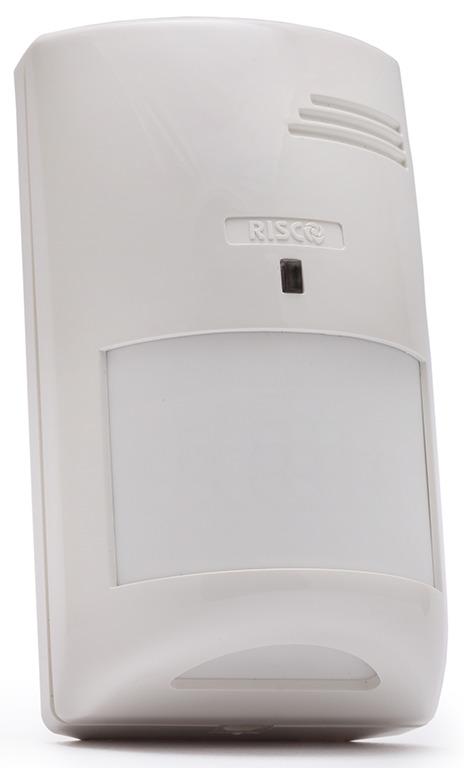

Grade 2 Passive Infrared (PIR) Pet-Immune Detector
Reference : PIR412PT
Product code: RK412PT0000
EAN code : 848584011025
- 12m Wireless Infrared Detector
- Detection technology: infrared
- Variable pet-immune threshold up to 32 kg
- Advanced infrared signal processing that adapts the detection threshold in real time according to the environment
- Optical filter for white light protection, pigmented lens
- Signal processing to counteract fluorescent light interference
- True temperature compensation
- Indoor installation
- Detection range: 12 meters
- Recommended installation height: 2.10 to 2.70 meters
- Power supply: 9 to 16 VDC
- Maximum current consumption: 12 mA (23.5 mA for dual model)
- Dimensions: 60 mm (W) x 106 mm (H) x 47 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 4 hilos |
| Technology | Cableado |
| Serie | LightSys + |
| Type | IR,Pet-Immune |
| Reading / coverage distance (m) | 47 |
| 47 | |
| Signaling | 1 |
| Action indicator output | Yes |
| Integrated camera | No |
| Installation height | Exterior |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Voltage | Exterior |
| Certifications | Exterior |
| Manufactured according to Norma. | 47 |
| Grade of security | Grado 2 |
| Dimensions - High (mm) | 106 |
| Dimensions - Width (mm) | 60 |
| Dimensions - Deep (mm) | 47 |
