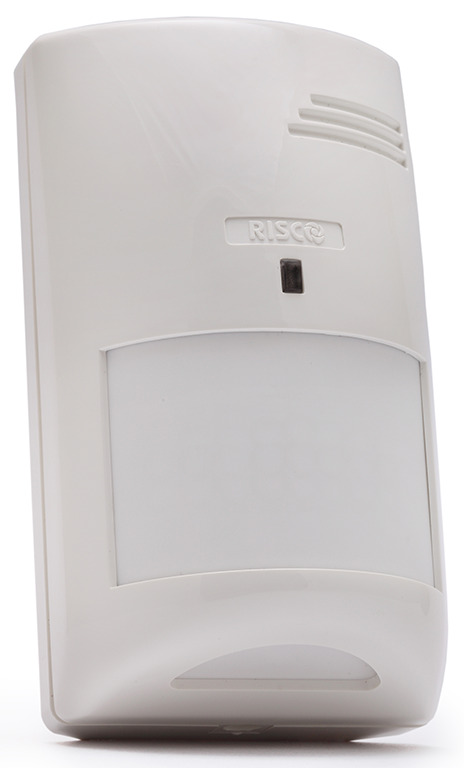

Grade 2 Passive Infrared Detector
Reference : PIR415
Product code: RK415PR0000
EAN code : 848584010127
- Detection Technology: Infrared
- Advanced Infrared Signal Processing, Adapts Detection Threshold in Real Time Based on the Environment
- Optical Filter for White Light Protection, Pigmented Lens
- Signal Processing to Counter Fluorescent Light Interference
- True Temperature Compensation
- Indoor Installation
- 15 m Range
- Recommended Mounting Height: 2.10 to 2.70 m
- Power Supply: 9 to 16 VDC
- Maximum Current Consumption: 12 mA (23.5 mA for Dual Model)
- Dimensions: 60(W) x 106(H) x 47(D) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos |
| Technology | Cableado |
| Serie | LightSys + |
| Type | IR |
| Reading / coverage distance (m) | 47 |
| 47 | |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | No |
| Integrated camera | No |
| Installation height | Interior |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Certifications | Interior |
| Manufactured according to Norma. | 47 |
| Grade of security | Grado 2 |
| Dimensions - High (mm) | 106 |
| Dimensions - Width (mm) | 60 |
| Dimensions - Deep (mm) | 47 |
