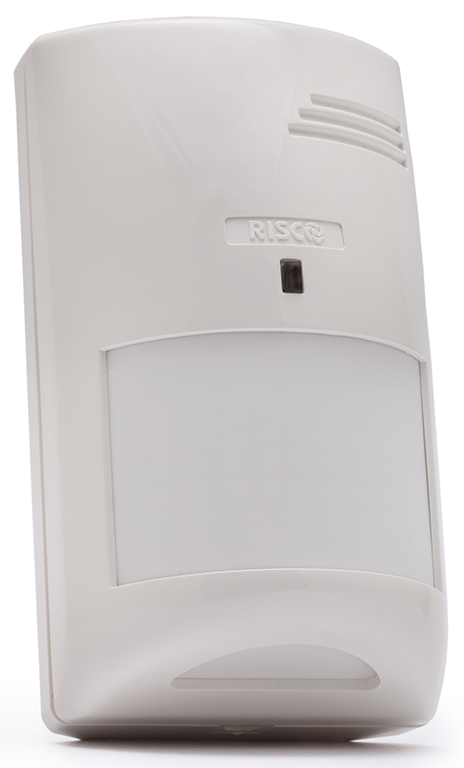

Grade 2 Dual Technology Detector
Reference : PIR415DT
Product code: RK415DT0000
EAN code : 848584007448
- 15m Dual Technology Detector
- Detection technologies: dual infrared and microwave
- Selectable double EOL resistor via jumper (dual model only)
- Advanced infrared signal processing that adapts the detection threshold in real time based on the environment
- Optical filter for white light protection, pigmented lens
- Signal processing to counteract fluorescent light interference
- True temperature compensation
- Indoor installation
- Detection range: 15 meters
- Recommended installation height: 2.10 to 2.70 meters
- Power supply: 9 to 16 VDC
- Maximum current consumption: 12 mA (23.5 mA for the dual model)
- Dimensions: 60 mm (W) x 106 mm (H) x 47 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 4-wire |
| Technology | Wired |
| Serie | LightSys + |
| Type | IR,MW |
| Action indicator output | Yes |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Grade of security | Grade 2 |
| Dimensions - High (mm) | 106 |
| Dimensions - Width (mm) | 60 |
| Dimensions - Deep (mm) | 47 |
