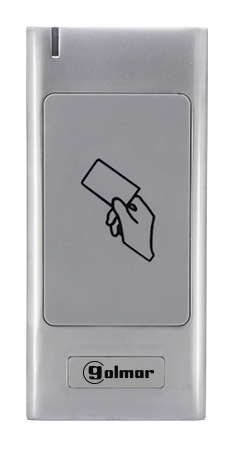

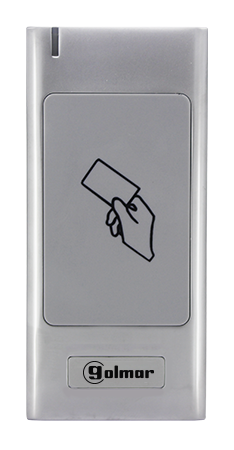

PROXEM proximity reader
Reference : PROXEM
Product code: 20720009
EAN code : 8429898024875
- Stand-alone 125KHz proximity reader
- Zamak front panel
- Capacity for up to 2000 users
- Wall installation with IP66 protection degree
- 9/18Vdc power supply (not included)
Dimensions: 48(W) x 103(H) x 19(D) mm
More information
| Specifications | |
|---|---|
| Type Function | Autónomo |
| Reading / Detection Type | Proximidad |
| RFID Frequency (KHz) | 125 |
| RFID Reading /coverage distance (cm) | 6 |
| Use | Exterior,Interior |
| Max. Users | 2000 |
| Mounting | Supericie |
| Relay contacts | Yes |
| Incorporates base | Yes |
| State LEDs | Yes |
| Input voltage | 12Vcc,18Vcc |
| Material | 1 |
| Degree of protection (IP) | 66 |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -40 |
| Dimensions - High (mm) | 103 |
| Dimensions - Width (mm) | 48 |
| Dimensions - Deep (mm) | 19 |
| Weight (gr.) | 260 |
