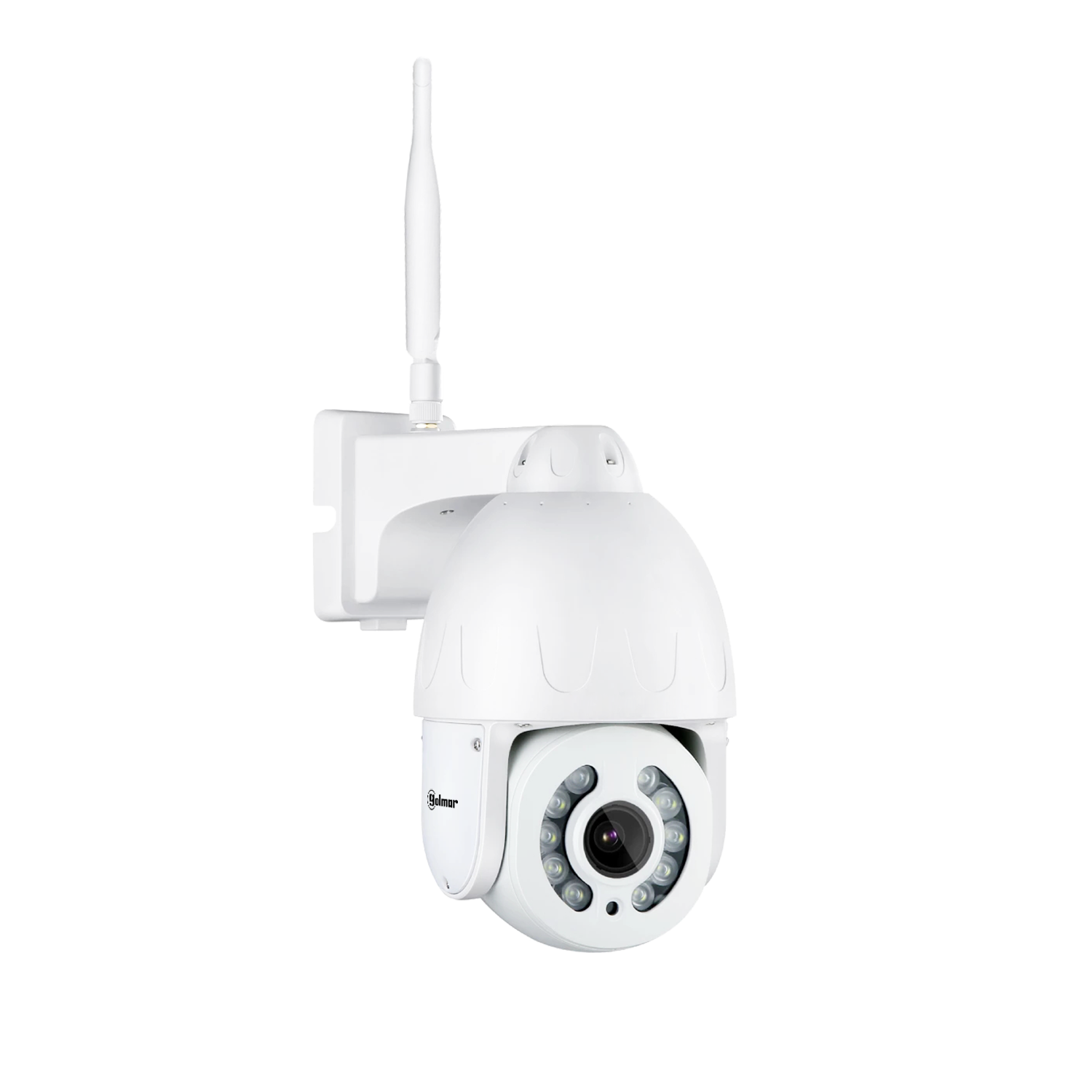

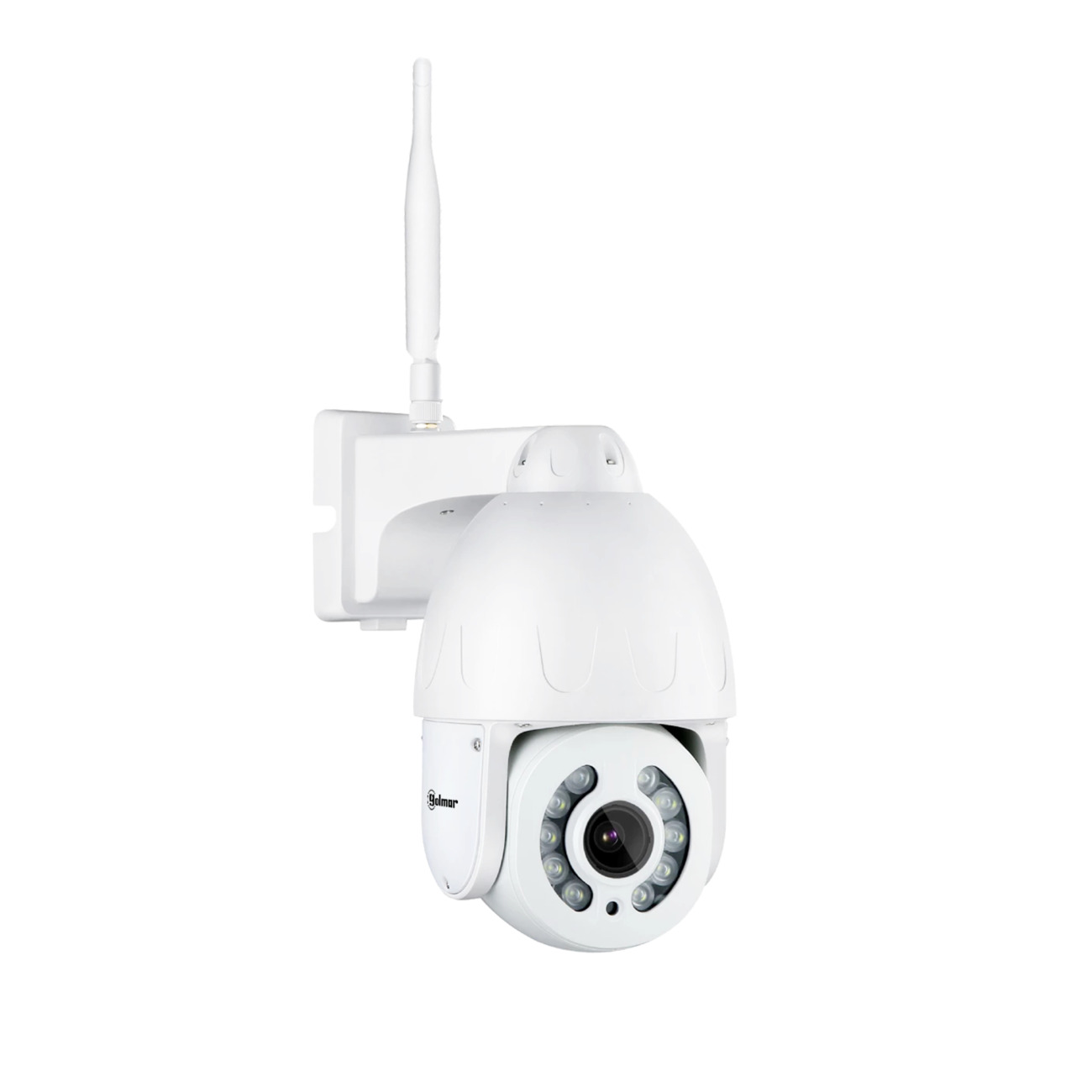

PTZ-05X5TW 5Mpx Wi-Fi camera with motorized lens and autotracking
Reference : PTZ-05X5TW
Product code: 31600992
EAN code : 8429898028231
- Indoor/outdoor PTZ IP Wi-Fi dome
- 2.7-13.5mm motorised optics
- Sony 335 CMOS sensor with 5Mpx resolution
- Infrared illumination with 40m range
- Built-in microphone and speaker
- Two-way audio
- People and vehicle detection
- App notifications
- 120dB WDR
- Micro SD card slot (max. 128Gb)
- 2.4/5GHz Wi-Fi and Ethernet connectivity
- IP66 protection rating
- ONVIF 2.4 compatibility
- Compatible with CamHiPro App
- Compatible with HiP2P desktop software
- 12Vdc power supply included
- Dimensions: 110 (W) x 175 (H) x 180 (D) mm
More information
| Specifications | |
|---|---|
| Type | PTZ |
| Technology | IP |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 25 |
| Colour | Blanco |
| Mounting | Pared |
| Lense | Motorizada |
| Focal length | 2.7-13.5 mm |
| Minimum illumination (lux) | 10 |
| Night vision mode | Full Color |
| White light distance (m) | 40 |
| IR distance max. (m) | 40 |
| Pan range | 0°,355° |
| Pan speed | 1°~ 40°/S |
| Tilt range | 0°,120° |
| Tilt speed | 1°~ 20°/S |
| Presets | 10 |
| Autotracking | Yes |
| WDR | Yes |
| AOC | No |
| Additional functions | AWB,BLC,AES,DNR |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Face recognition | No |
| Video Analysis | PD,VD |
| Internal storage | Sí (máx 128Gb) |
| Reading distance (m) | 180 |
| Vehicle speed (Km/h) | 1°~ 20°/S |
| Network interface | RJ45 |
| I / O alarms | 40 |
| I / O audio | 40 |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| UTC | No |
| Integrated WiFi | Yes |
| Remote Access / App | Web,CamHiPro |
| Compatibility | Blanco |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -20 |
| Relative humidity work (max.) | 85 |
| Relative humidity Work (min.) | 10 |
| Input voltage (V) | 12Vcc |
| Included power supply | Yes |
| Dimensions - High (mm) | 175 |
| Dimensions - Width (mm) | 110 |
| Dimensions - Deep (mm) | 180 |
| Weight (gr.) | 1200 |
| Certifications | CE, RoHS |
