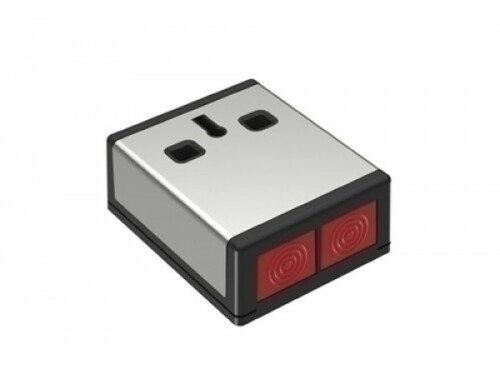

Grade 3 Panic Button
Reference : PULS-ATG3
Product code: 21046010
EAN code : 8429898031675
- Box material: ABS or ABS/304 stainless steel
- Reset key: Steel
- Operation: 2 buttons, latching / non-latching.
- Reset method: Key
- Switch: 3A 50VDC, changeover contact
- Tamper protection: Normally closed tactile switch, 24V DC max. 1A
- Standards: EN50131-1:2006 + A1:2009 Grade 3
- Latching / non-latching: Selectable
- Selectable: Normally Open / Normally Closed
- Activation indicator
- Micro-switch alarm and tamper protection
- Selectable end-of-line resistors
- Resettable with key
- Dimensions: 75mm x 62mm x 29.5mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Convencional |
| Serie | LightSys + |
| Type of activation | Por la central |
| Voltage | 0 |
| Drive on | No |
| Signaling | Óptica |
| Synchronization | No |
| Action indicator output | No |
| Lettering | 1 |
| Mounting | Pared,Superficie |
| Use | Interior |
| Installation height | 0 |
| Resettable button | Yes |
| Grade of security | 3 |
| Certifications | 0 |
| Material | 2 hilos |
| Thickness | 29.5 |
| Dimensions - High (mm) | 75 |
| Dimensions - Width (mm) | 62 |
