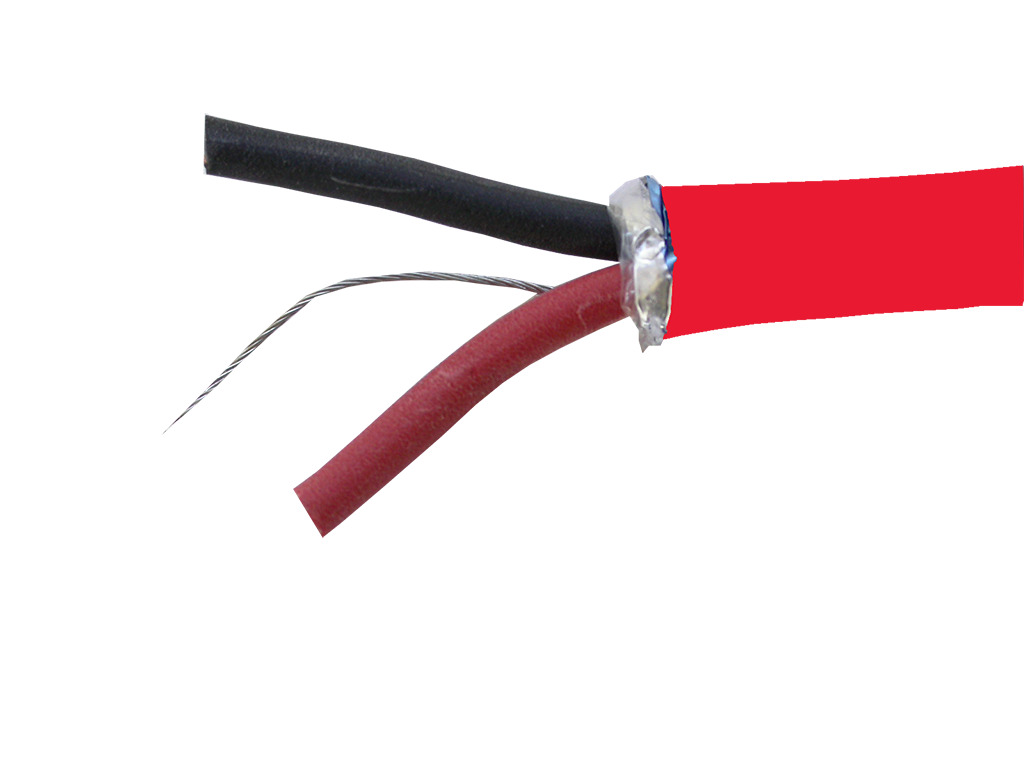

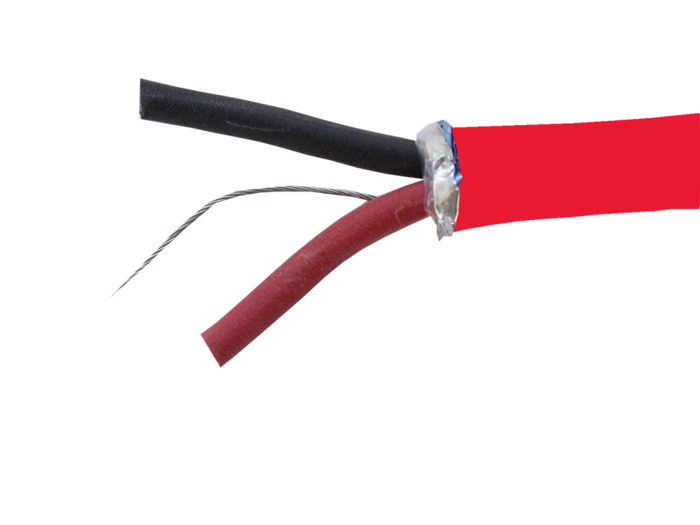

Fire-resistant cable RF120/400
Reference : RF120/400
Product code: 20101121
EAN code : 8429898035291
- 2 x 1.5 mm² shielded and twisted cable
- Fire-resistant (AS+) RF 120'
- Manufactured in accordance with UNE 211025
- Tested in accordance with UNE EN 50200
- Conductor made of Class 5 flexible copper according to UNE EN 60228
- Ceramifying silicone insulation
- Internal cabling with more than 25 twists per metre
- Aluminium tape shield with drain wire
- Halogen-free polyolefin outer sheath
- Red outer sheath
- AENOR certified
- Sales unit: 100 m
More information
| Specifications | |
|---|---|
| Cable type | 2 hilos |
| Conductor material | 1 |
| no. wires | 2 |
| Conductors section (mm2) | 1.5 |
| Certifications | 74 |
| Color of the conductors | 74 |
| Capacity (PF) | 74 |
| Cover | Yes |
| Color of the cover | 74 |
| Diameter of casing | 8.2 |
| Free of halogens | Yes |
| Flame propagator | No |
| Fire resistant | Yes |
| Low smoke emission | Yes |
| Resistivity (Ohm) | 13 |
| Mesh | Yes |
| Twist (laps per meter) | 25 |
| Manufactured according to Norma. | 8.2 |
| Minimum sale unit | 100 |
