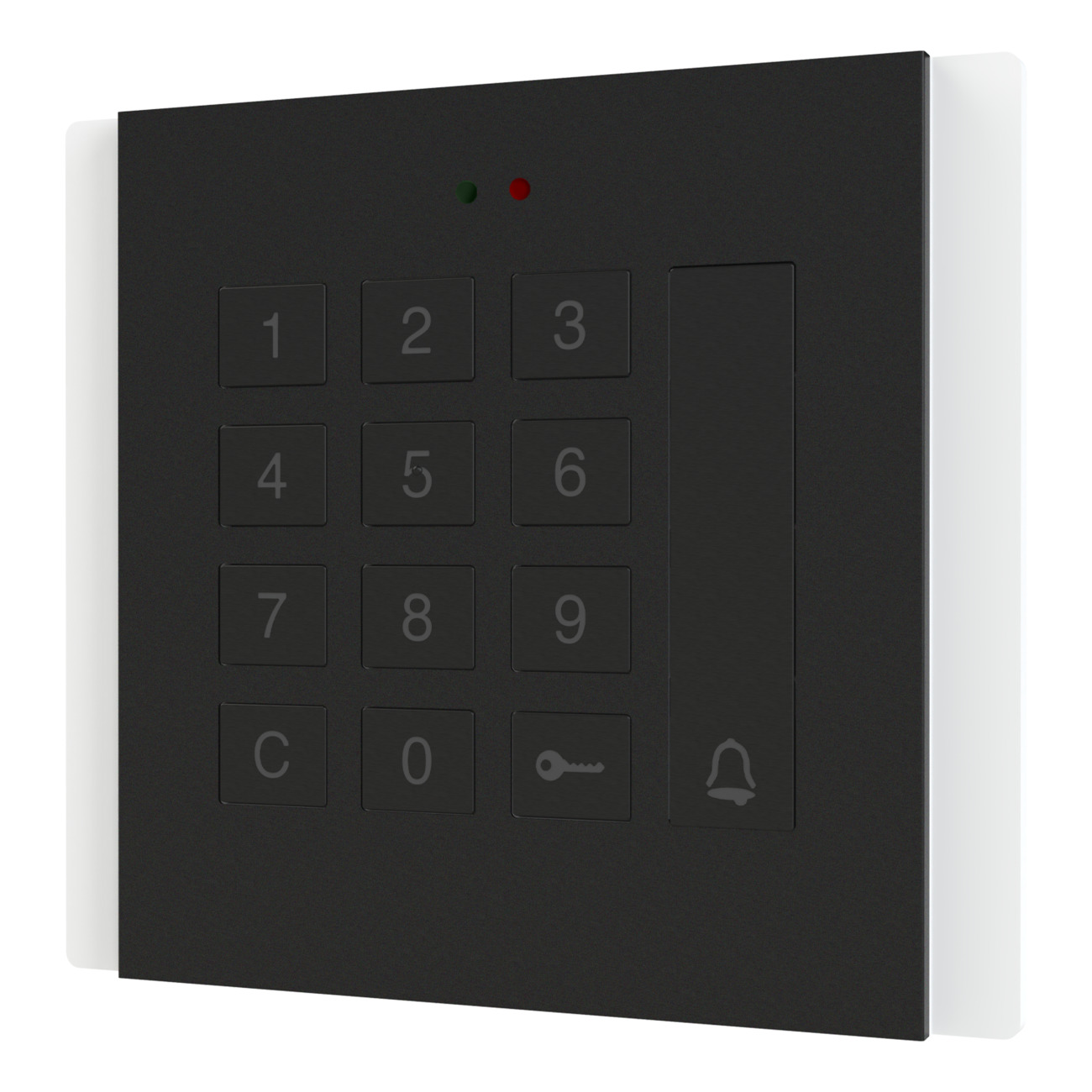

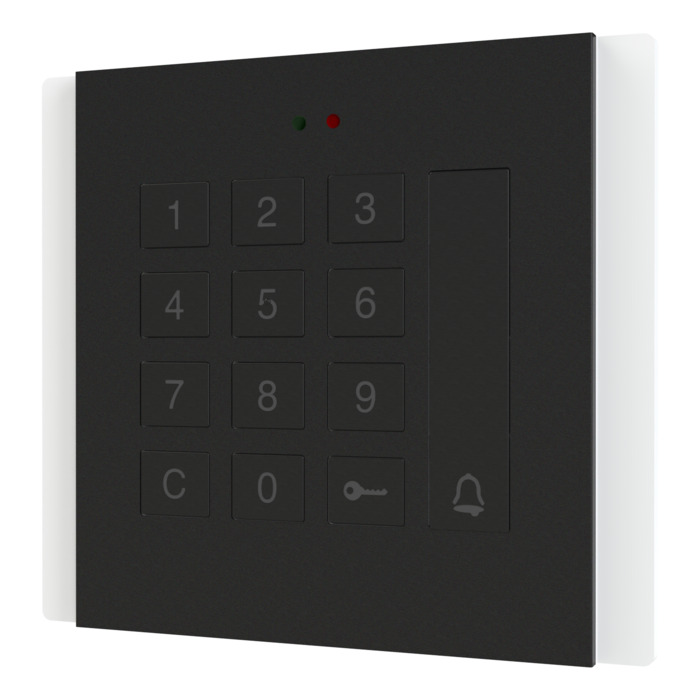

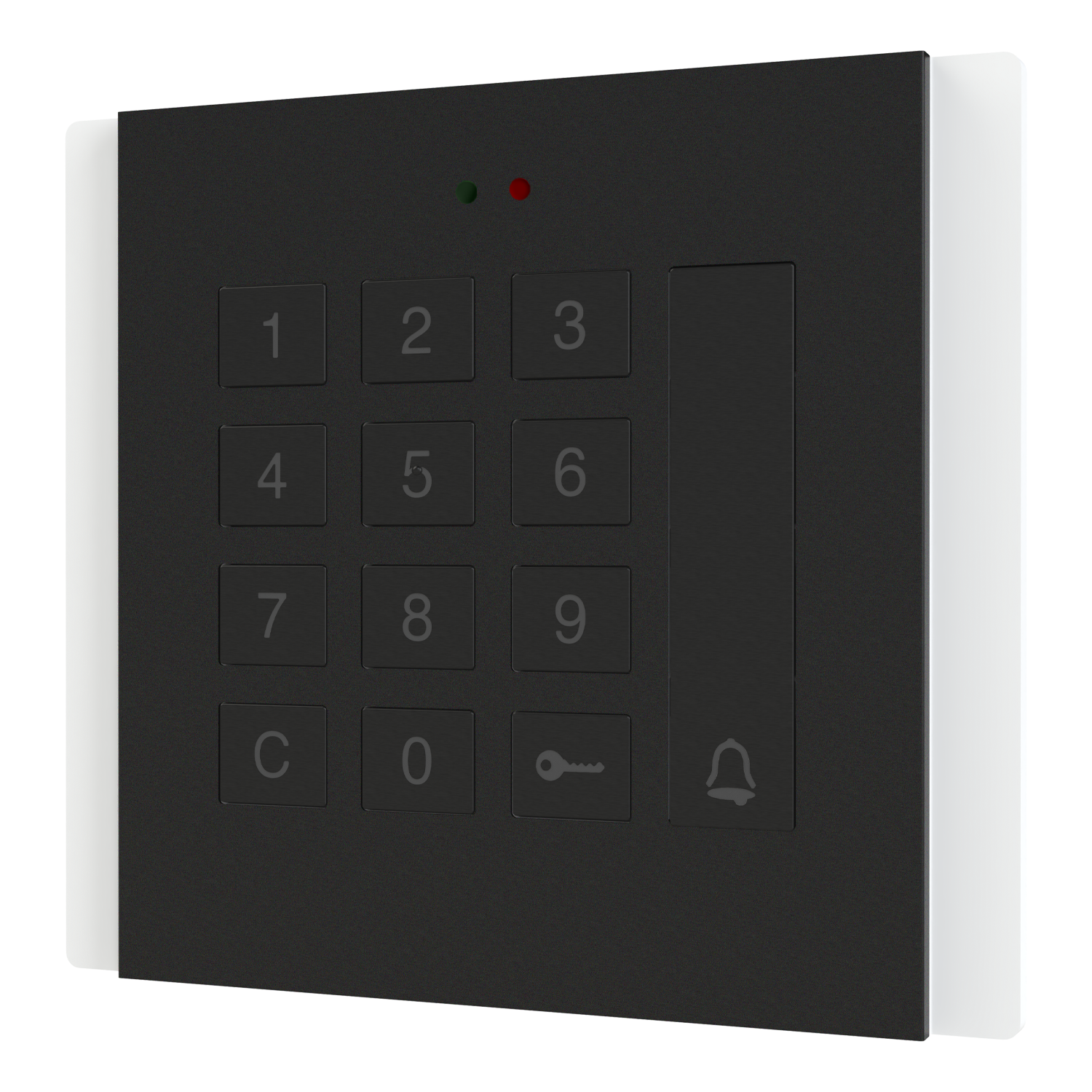

S3302/BK SUPRA BLACK Keypad Module
Reference : S3302/BK
Product code: 12583302B
EAN code : 8429898034829
- Backlit numeric keypad for SUPRA BLACK Coded Panel
- Programming via keyboard or via Wi-Fi via internal web server
- 1 height module
- Black-Painted AISI 316 stainless steel front panel
- Operating indicator lights
- Dual operation option (Keypad + Access Control)
- Enables connection to a WIEGAND module via 19950128 MULTICOLOUR CABLE ADDITIONAL FUNCTIONS CP-NST
Dimensions: 126(W) x 111(H) mm
More information
- Acoustic confirmation of deactivatable pulsation
- Up to 1000 codes of 4, 5 or 6 digits. Each code can be programmed to activate a combination of outputs
- Possibility of changing user codes and special codes without the need to access the programming mode
- Programmable access control lock for a period of time after entering consecutive erroneous codes
- 2 NA, C, NC relay outputs
- Programmable activation time (1-99 s) and output mode
- Anti-tamper alarm and panic exit
