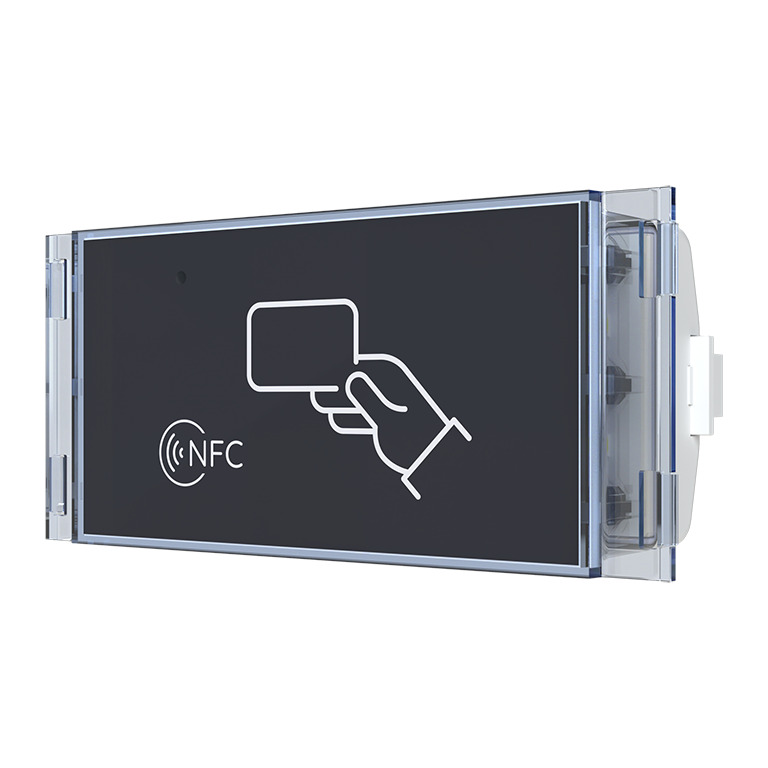

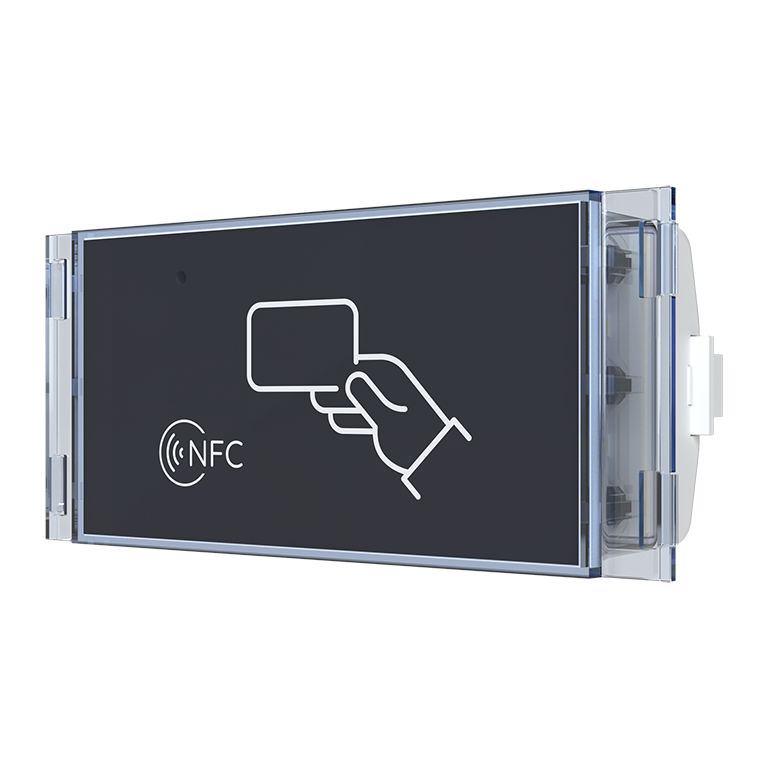

S3501/NFC reader module

• Stand-alone access control module  by means of a NFC 13.56MHz reader
• Module to be used on SUPRA panels
• Programming via Wi-Fi through internal web server (requires NFC/IN installer card included with the product)
• Up to 2,000 user cards, stored in up to 30 user groups
• 30 user groups
• Smartphones with Android operating system and NFC technology can work with this access control using the OpenGo app available on the Google Play Store
• Compatible with NFC/US cards and TAGNFC/US keyfobs
• 2 relay outputs (NO, C, NC) for doors, with independent inputs for remote activation
• Programmable activation time (3 to 99 seconds)
• Panic output
• 12VAC or 18 to 24VDC power supply. It is possible to use the power supply of the outdoor panel.
• ½ height
