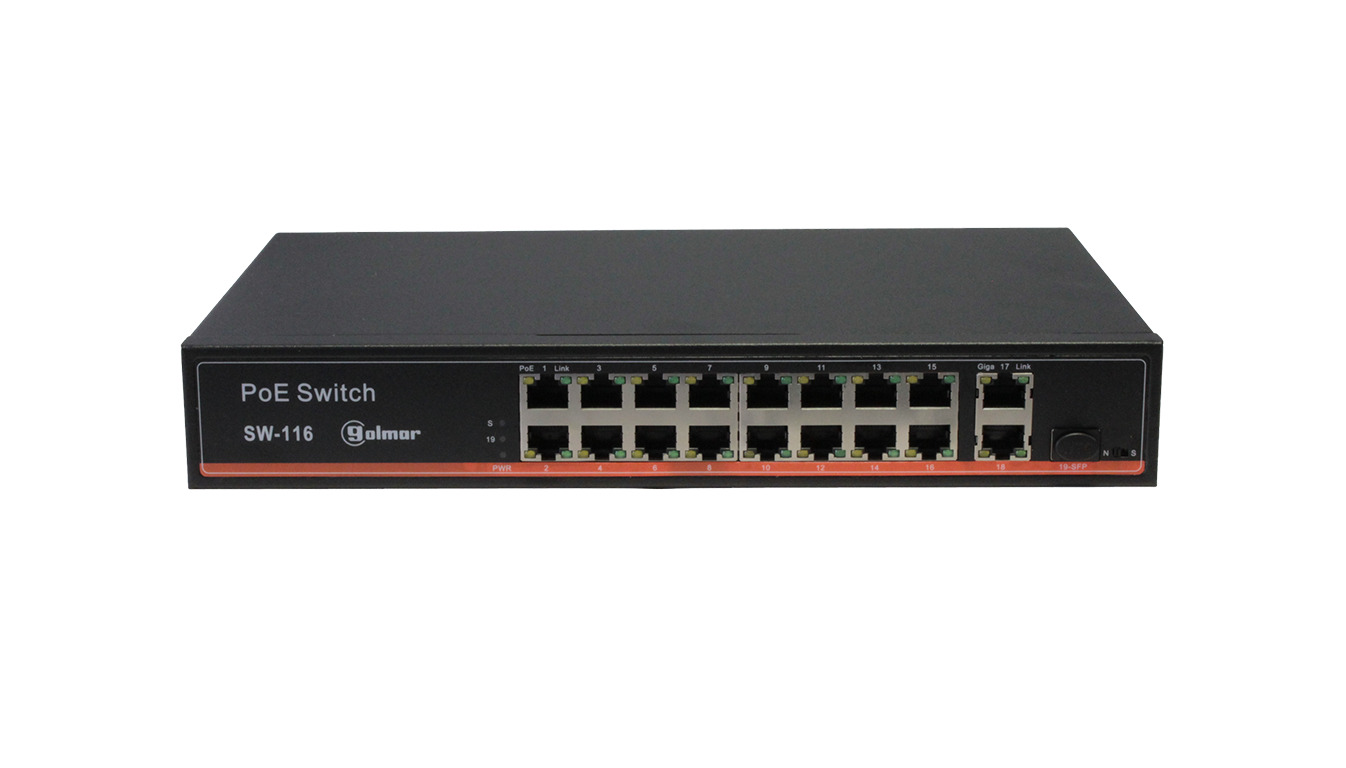

SW-116 16-port PoE Switch
Reference : SW-116
Product code: 31600240
EAN code : 8429898019055
- 16chn PoE switch
- 16 x 10/100/100 Mbps PoE
- 2 x 10/100/1000 Mbps Uplink
- 1 x 10/100/1000 Mbps FSP
- Bandwithd 24 Gbps
- Total rated output power 300W

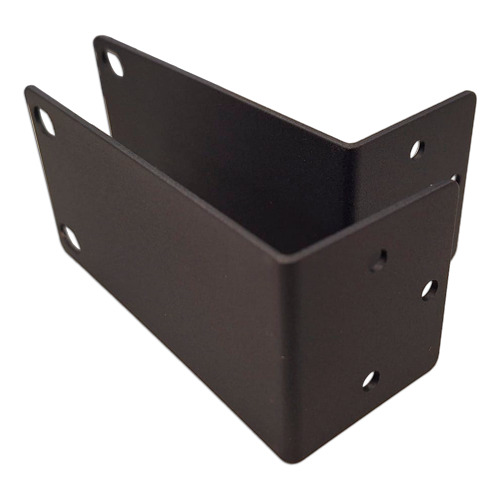

- 19" rack adapters included
- Dimensions 295 x 190 x 45 mm (W x D x H)
- Operating temperature from -10,C to 55,C
More information
| Number of PoE ports | 16 |
| Number of Uplink ports | 2 |
| Output power | Max. 30W for ports 3-16 (IEEE802,3af/at) Máx. 90W for ports 1-2 (IEEE802,3af/at/PoE++/BT) |
| Data exchange | PoE: 10/100Mbps Uplink 10/100/1000Mbps |
| Bandwidth / MAC | 24Gbps / 4K |
| Packet forwarding rate / Cache | 7,68Mbps, 4Mb |
| Network protocols | IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet IEEE 802.3x Flow control |
| System mode | Normal mode, long distance mode, VLAN mode |
| Certificates | CE/LVD EN60950, FCC Part 15 Class B, RoHS |
| Dimensions | 295 x 45 x 195 mm (W x H x D) |
| Weight | 2Kg |
