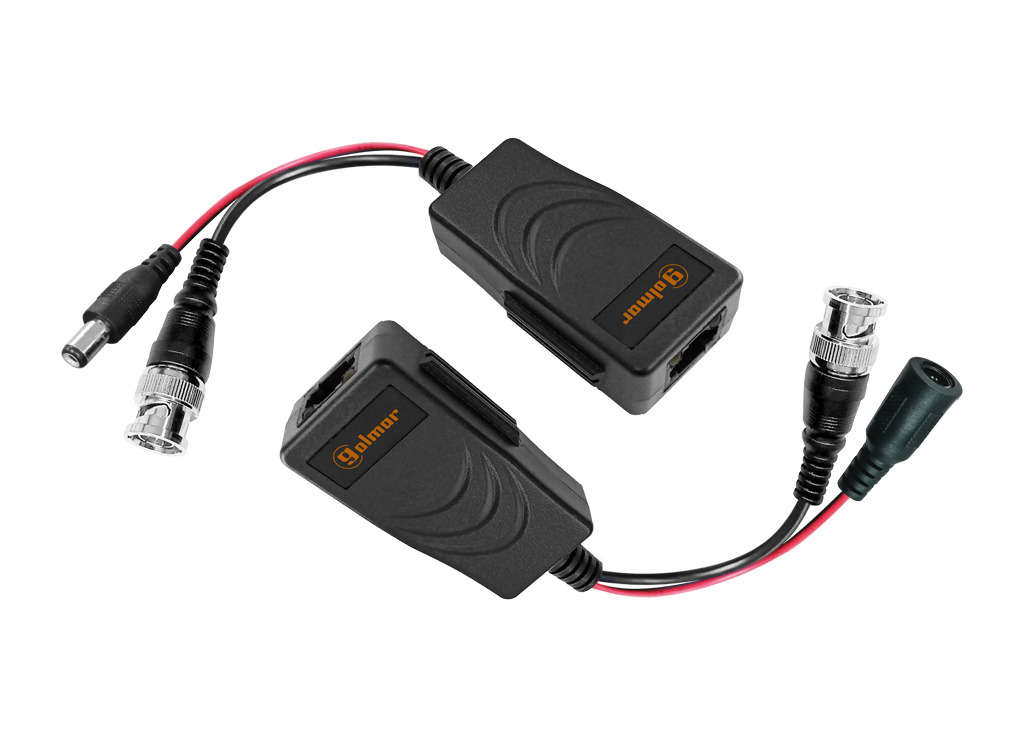

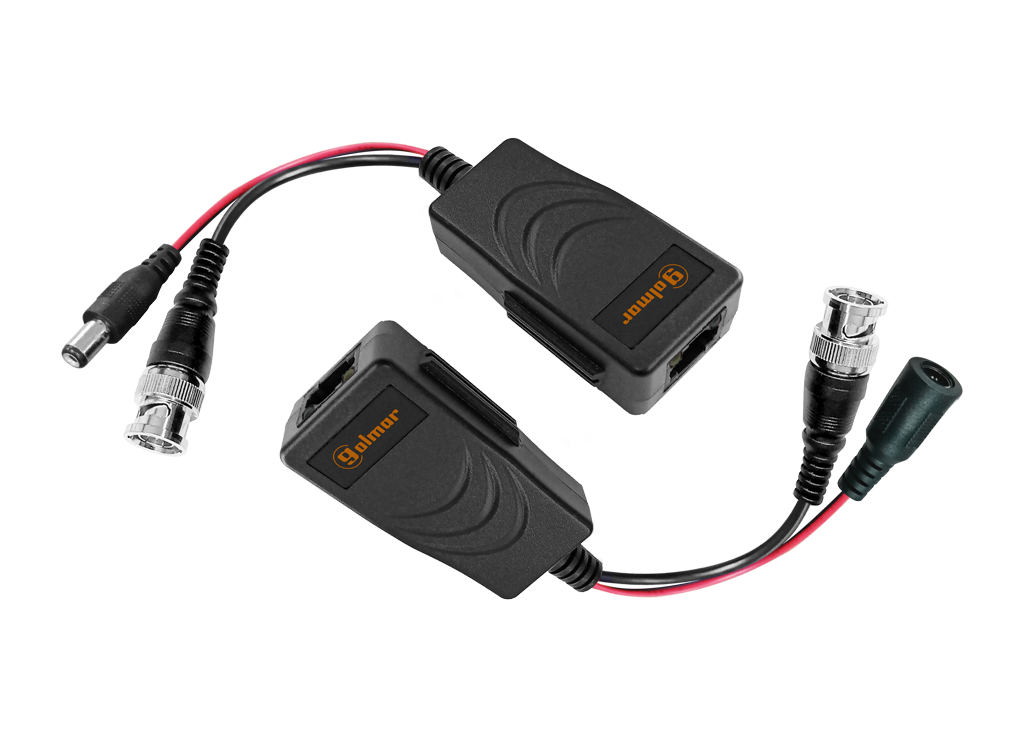

Passive UTP-701 Video Balun (video + power)
Reference : UTP-701
Product code: 31600501
EAN code : 8429898034065
- Video and Power Balun (12 V/24 V, AC/DC)
- Real-time transmission over UTP Cat5e/6
- Compatible with all analog HD-TVI/CVI/AHD/CVBS cameras
- Maximum supported resolution: 4K
- BNC connector with mini-coaxial pigtail
- RJ-45 connector for UTP cable
- Built-in solid-state TVS (Transient Voltage Suppressor)
- Wave filter design, anti-static design
- 2KV lightning protection design
- 60 dB common mode rejection
- Unbalanced coaxial impedance: 75 ,
- Balanced UTP impedance: 100 ,
- Maximum distance 50m (check tables)
- ABS plastic housing
- Dimensions: 29 (W) x 20 (H) x 60 (D) mm (excluding BNC and cable)
- Weight: 60 g
More information
| Specifications | |
|---|---|
| Number of elements | 2 |
| Input connector | BNC |
| Output connector | RJ45 |
| Material | ABS |
| Compatibility | CVI / TVI / AHD / CVBS |
| Max. Resolution | 4K |
| Number of devices that can be controlled | 1 |
| Electrical protection | Overvoltage |
| Dimensions - High (mm) | 20 |
| Plug & Play | Yes |
| Dimensions - Width (mm) | 29 |
| Dimensions - Deep (mm) | 60 |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Weight (gr.) | 60 |
