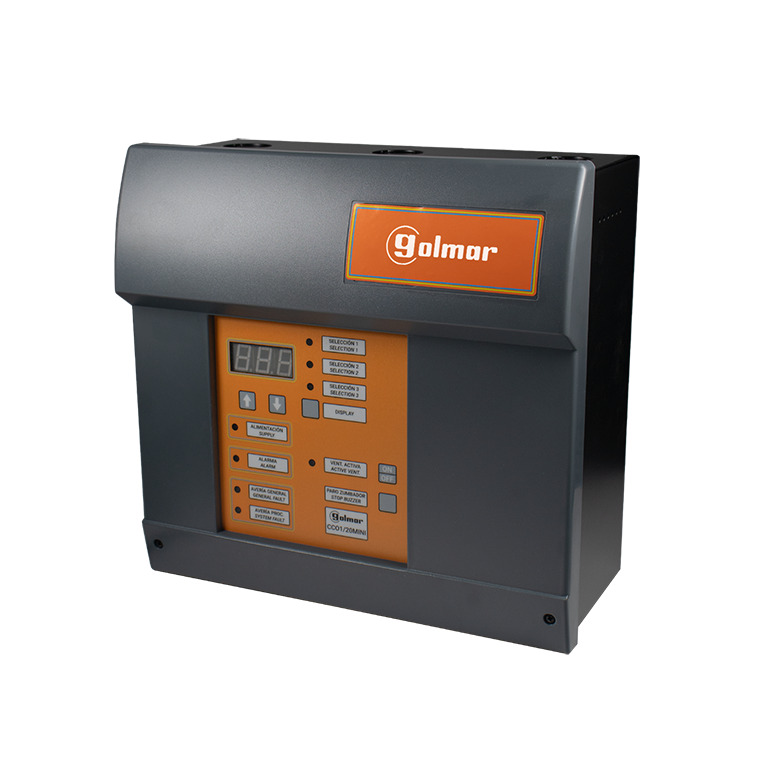

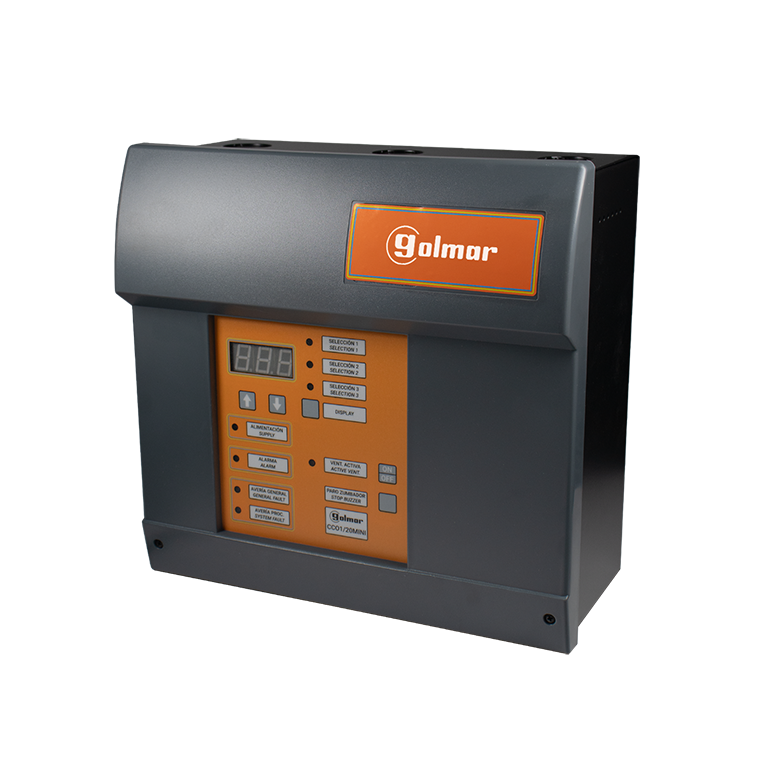

1-Zone Carbon Monoxide Control Panel
Reference : CCO1/20MINI
Product code: 21113093
EAN code : 8429898026343
- Certified according to UNE 23300 standard
- 3-digit, 7-segment display and membrane keypad
- Default ventilation level: 50 ppm, adjustable from 10 to 290 ppm
- Ventilation activation delay, default 4 minutes, adjustable from 1 to 10 minutes
- Ventilation output via volt-free relay
- Manual ventilation activation via push button included on the front panel
- Default alarm level: 200 ppm, adjustable from 20 to 300 ppm
- Alarm activation delay, default 1 minute, adjustable from 1 to 10 minutes
- Alarm stop delay, default 1 minute
- Alarm and fault outputs via volt-free relays
- Auxiliary output: 30 VDC / 0.5A
- Maximum capacity: 20 detectors
- Maximum line length: 800 m (shielded cable 2 x 1.5 mm²)
- Operating temperature: -10ºC to 50ºC
- Dimensions: 258 (W) x 260 (H) x 105 (D) mm
More information
| Specifications | |
|---|---|
| Serie | CCO |
| Installation | 2 hilos |
| Technology | Convencional |
| Number of zones | 1 |
| Number of zones (max.) | 1 |
| Devices Line (max.) | 20 |
| Battery charger | No |
| Exit relay. | 1 |
| Mermaid output. | 0 |
| Ventilation output | 1 |
| Alarm output | 1 |
| Signaling | Led,Pantalla,Acústicamente |
| Input voltage (Vac) | 230 |
| Mounting | Superfície |
| Use | Interior |
| Colour | 0 |
| Manufactured according to Norma. | 20 |
| Certifications | 0 |
| Dimensions - High (mm) | 260 |
| Dimensions - Width (mm) | 248 |
| Dimensions - Deep (mm) | 105 |
| Weight (kg.) | 2.54 |
