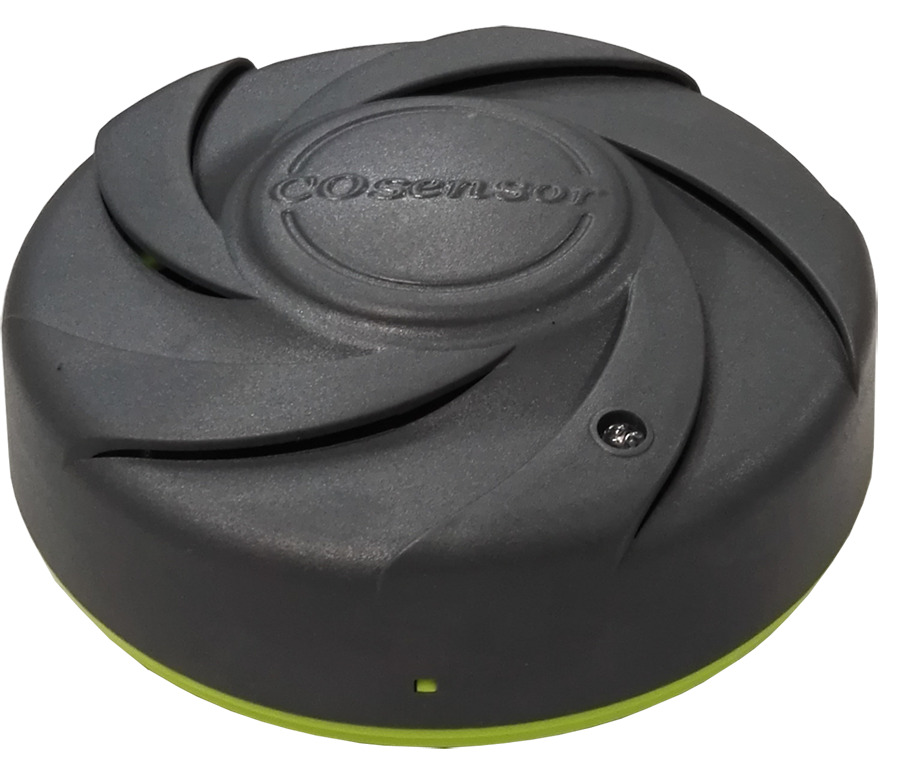

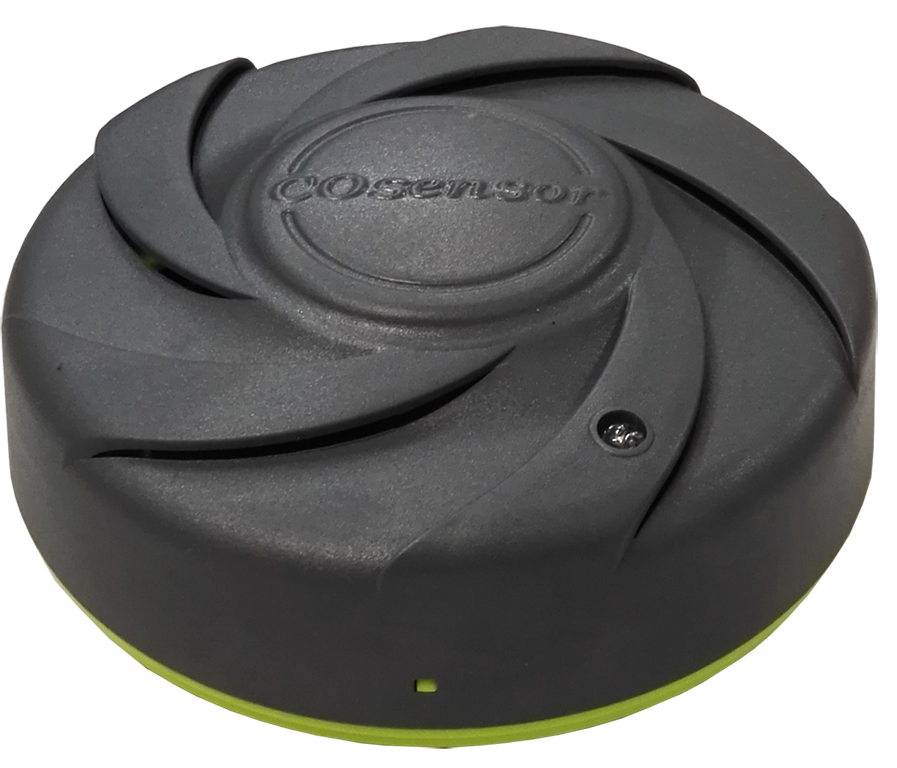

SCO Detector for Carbon Monoxide
Reference : SCO
Product code: 21123000
EAN code : 8429898026374
- Certified according to UNE 23300 and EN 50545-1 standards
- 10-year service life
- Detection via electrochemical sensor
- Installation height: between 1.5 and 2m above the floor
- Coverage area: 200m²
- Power supply: 24 to 35V DC (with polarity)
- Average standby current: 2mA
- Average alarm current: 4mA
- Status indicator: Red LED
- Operating temperature: -10°C to 50°C
- Relative humidity: 20 to 93%
- Supplied without base
- Dimensions: 115mm (Ø) x 60mm (H)
More information
| Specifications | |
|---|---|
| Installation | 2 hilos BUS |
| Technology | Convencional,Cableado |
| Serie | CCO |
| Type | CO |
| To | Det. Monóxido carbono |
| Coverage | 14 |
| Signaling | 0 |
| Action indicator output | No |
| Relay contacts | No |
| Integrated camera | No |
| Installation height | Interior |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Colour | 14 |
| Certifications | Interior |
| Dimensions - High (mm) | 60 |
| Dimensions - Diameter (Ø) | 115 |
| Weight (kg.) | 0.08 |
