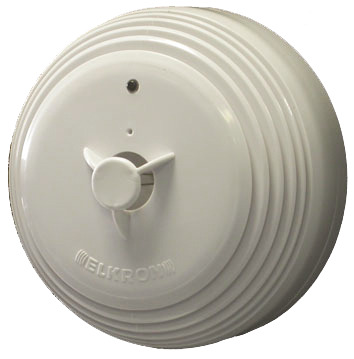

Analogue rate-of-rise heat detector
Reference : FDTD500
Product code: 80SD9000121
EAN code : 8033959746905
- For FAP541, FAP544EVO and FAP548EVO control panels
- Manufactured according to EN 54-5
- Alarm temperature: 58 °C
- Coverage area: 20 m² according to EN 54-14
- Short-circuit protection
- Power supply: 20 Vdc modulated
- Average consumption in standby: 250 µA at 20 Vdc
- Average consumption in alarm: 2 mA at 20 Vdc
- Remote indicator output
- Bicolour LED: red in alarm and green in standby
- Operating temperature: 0 °C to 50 °C
- Maximum relative humidity: 93 %
- Supplied without base
- Unit certified by EVPU
- Weight: 70 g
- Dimensions: Ø 90 x 40 (H) mm
More information
| Specifications | |
|---|---|
| Installation | 4-wire,2-wire BUS |
| Technology | Analog |
| Serie | FAP500 |
| Type | Thermovelocimetric |
| To | Thermovelocimetric detector |
| Alarm temperature (ºC) | 58 |
| Action indicator output | Yes |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 40 |
| Dimensions - Diameter (Ø) | 90 |
| Weight (kg.) | 0.07 |
