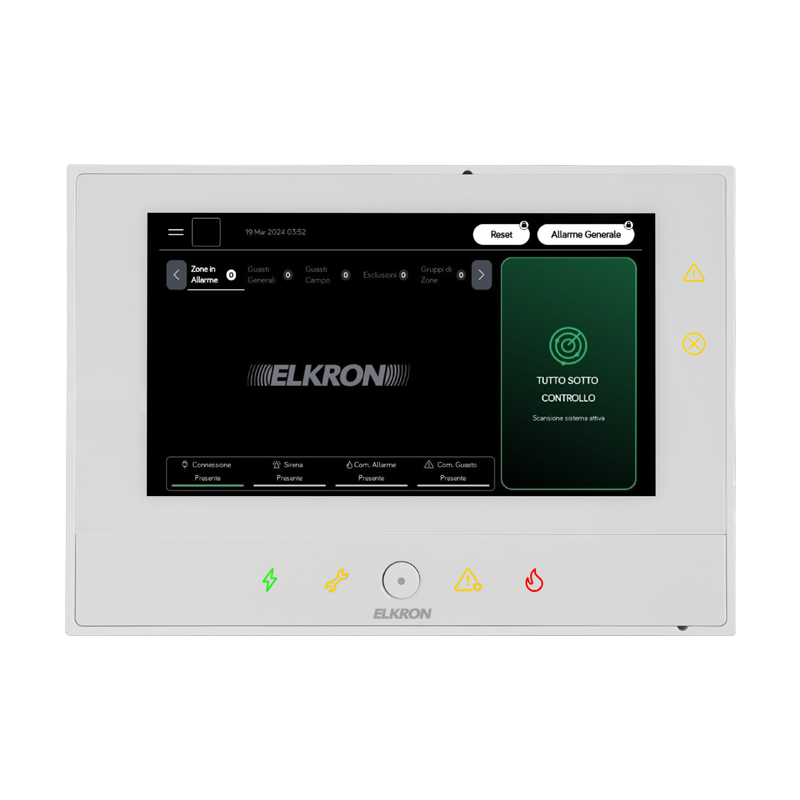

Digital-Touch Analog Repeater Panel
Reference : FKP500T
Product code: 80KP5600121
EAN code : 8034034448400
- Remote event repeater panel
- For FAP500 Series analog control panels
- 4 x 40 Backlit display
- Repeat LEDs for alarm, power, and exclusion
- Connection to the control panel via RS485 protocol (2-wire), with a maximum distance of 1200 m
- On request
- Supply voltage: 24V, +10 / -15 %
- Maximum consumption: 185mA a 24Vcc
- Relay output: 1 A/30 V, resistive load
-
Operating temperature: -5 °C to 40 °C -
Maximum relative humidity: 95% -
Dimensions: 202 (W) x 142 (H) x 24 (D) mm -
IP 30 Grade Protection
More information
| Specifications | |
|---|---|
| Serie | FAP500 |
| Installation | 4 hilos,2 hilos BUS |
| Technology | Analógico |
| Comunication Type | BUS,RS232/485 |
| Signaling | Led,Pantalla,Acústicamente |
| Input voltage (Vac) | 24 |
| Mounting | Superfície,Empotrado |
| Use | Interior |
| Dimensions - High (mm) | 202 |
| Dimensions - Width (mm) | 142 |
| Dimensions - Deep (mm) | 22 |
